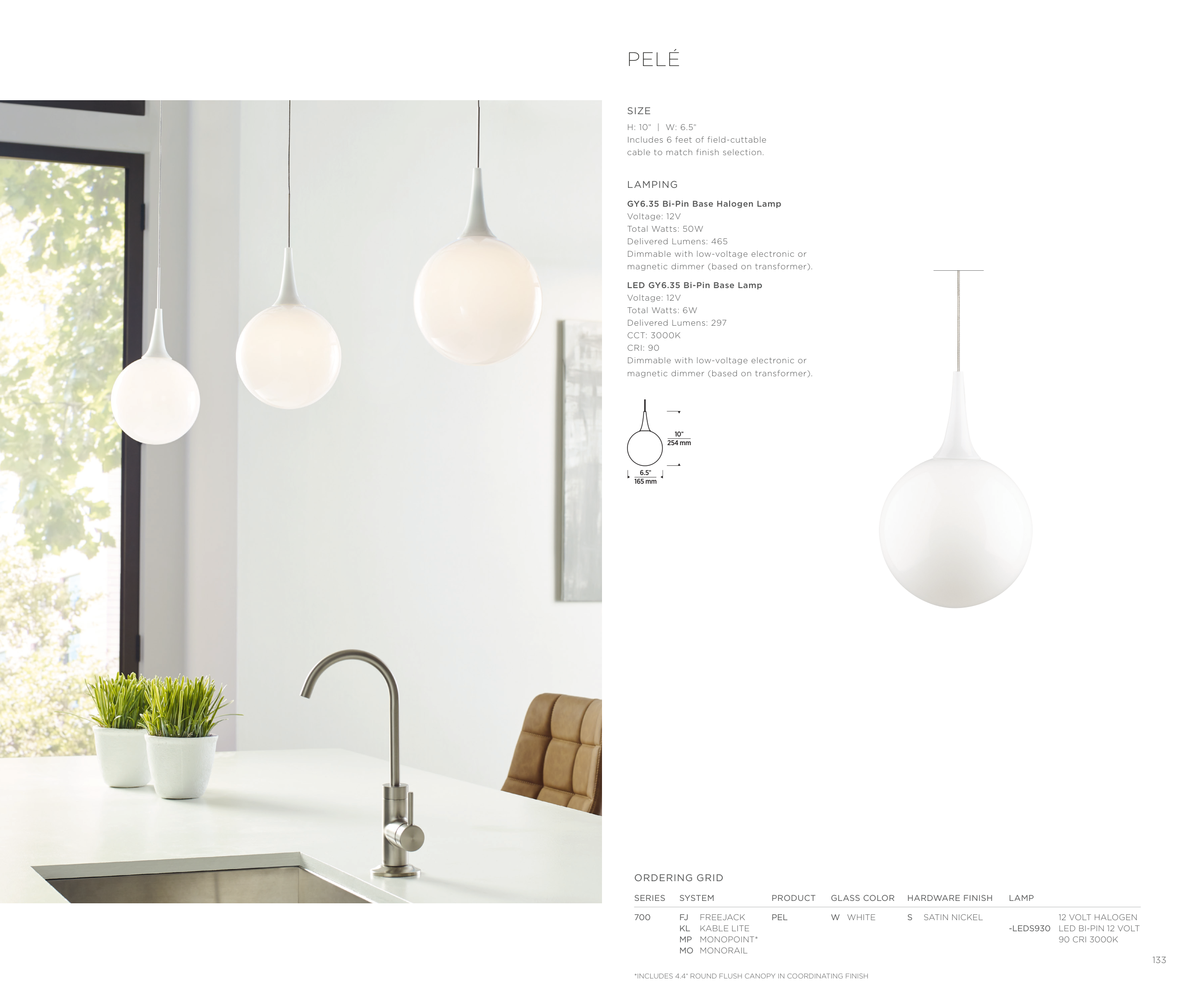

133
6.5"
165 mm
10"
254 mm
4.4"
111 mm
.4"
11 mm
SIZE
H: 10" | W: 6.5"
Includes 6 feet of field-cuttable
cable to match finish selection.
LAMPING
GY6.35 Bi-Pin Base Halogen Lamp
Voltage: 12V
Total Watts: 50W
Delivered Lumens: 465
Dimmable with low-voltage electronic or
magnetic dimmer (based on transformer).
LED GY6.35 Bi-Pin Base Lamp
Voltage: 12V
Total Watts: 6W
Delivered Lumens: 297
CCT: 3000K
CRI: 90
Dimmable with low-voltage electronic or
magnetic dimmer (based on transformer).
SERIES
SYSTEM
PRODUCT
GLASS COLOR
HARDWARE FINISH
LAMP
700
FJ FREEJACK
KL KABLE LITE
MP MONOPOINT*
MO MONORAIL
PEL
W WHITE
S
SATIN NICKEL
12 VOLT HALOGEN
-LEDS930 LED BI-PIN 12 VOLT
90 CRI 3000K
ORDERING GRID
*INCLUDES 4.4" ROUND FLUSH CANOPY IN COORDINATING FINISH
PELÉ
