10"
254 mm
2.5"
64 mm
4.4"
111 mm
.4"
11 mm
SIZE
H: 10" | W: 2.5"
Includes 6 feet of field-cuttable cable
to match finish selection.
LAMPING
No Lamp Option
Rated for (1) 50 watt max. bi-pin lamp
LED GY6.35 Bi-Pin Base Lamp
Voltage: 12V
Total Watts: 6.5W
Delivered Lumens: 485
CCT: 3000K
CRI: 90
Dimmable with low-voltage electronic or
magnetic dimmer (based on transformer).
SERIES
SYSTEM
PRODUCT
SHADE COLOR | HARDWARE FINISH
LAMP
700
FJ FREEJACK
MP MONOPOINT*
MO MONORAIL
PPR
RR AGED BRASS | AGED BRASS
ZZ ANTIQUE BRONZE | ANTIQUE BRONZE
BS GLOSS BLACK | SATIN NICKEL
SS SATIN NICKEL | SATIN NICKEL
WS GLOSS WHITE | SATIN NICKEL
NO LAMP
-LEDS930 LED BI-PIN 12 VOLT
90 CRI 3000K
ORDERING GRID

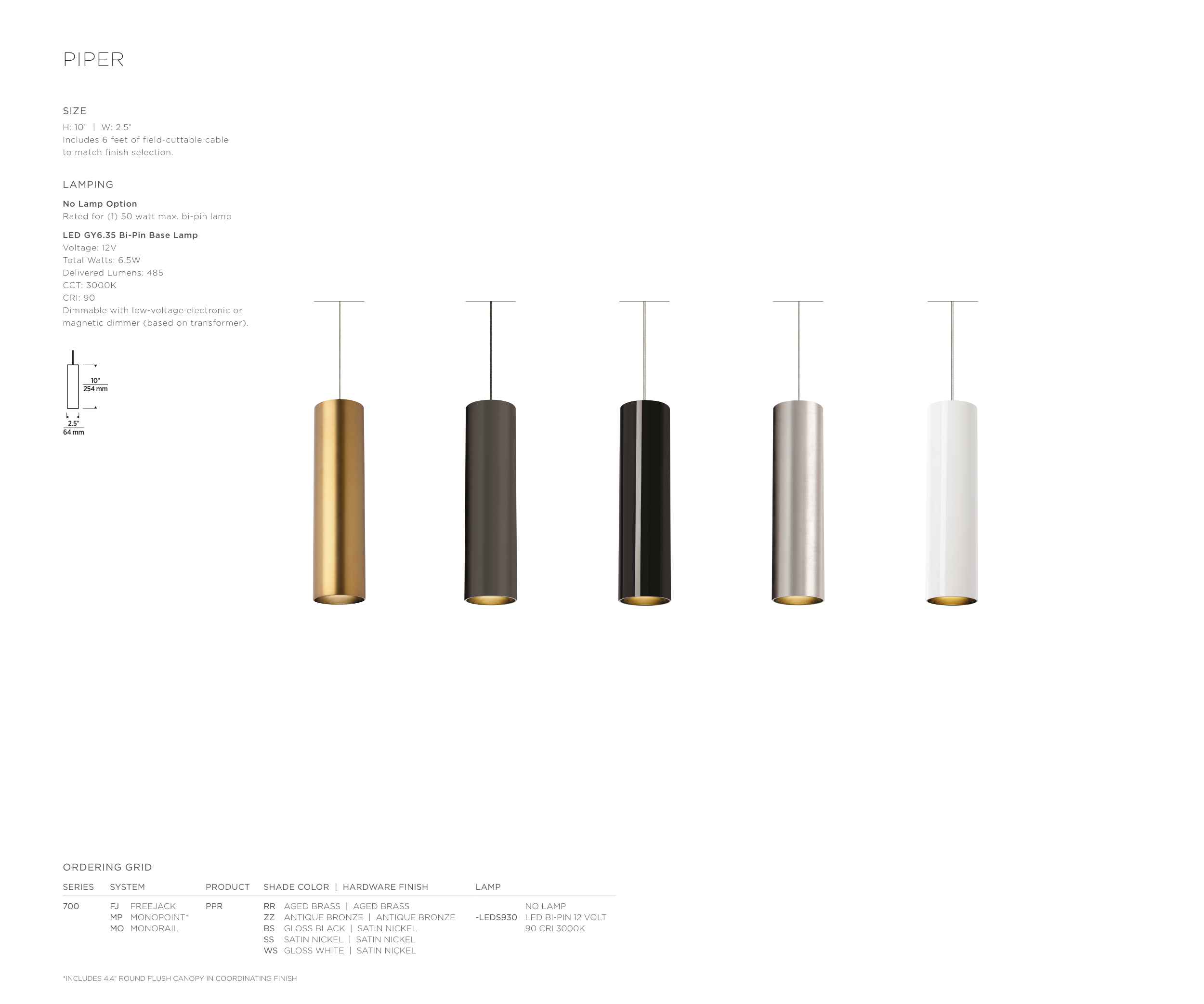

PIPER
*INCLUDES 4.4" ROUND FLUSH CANOPY IN COORDINATING FINISH
