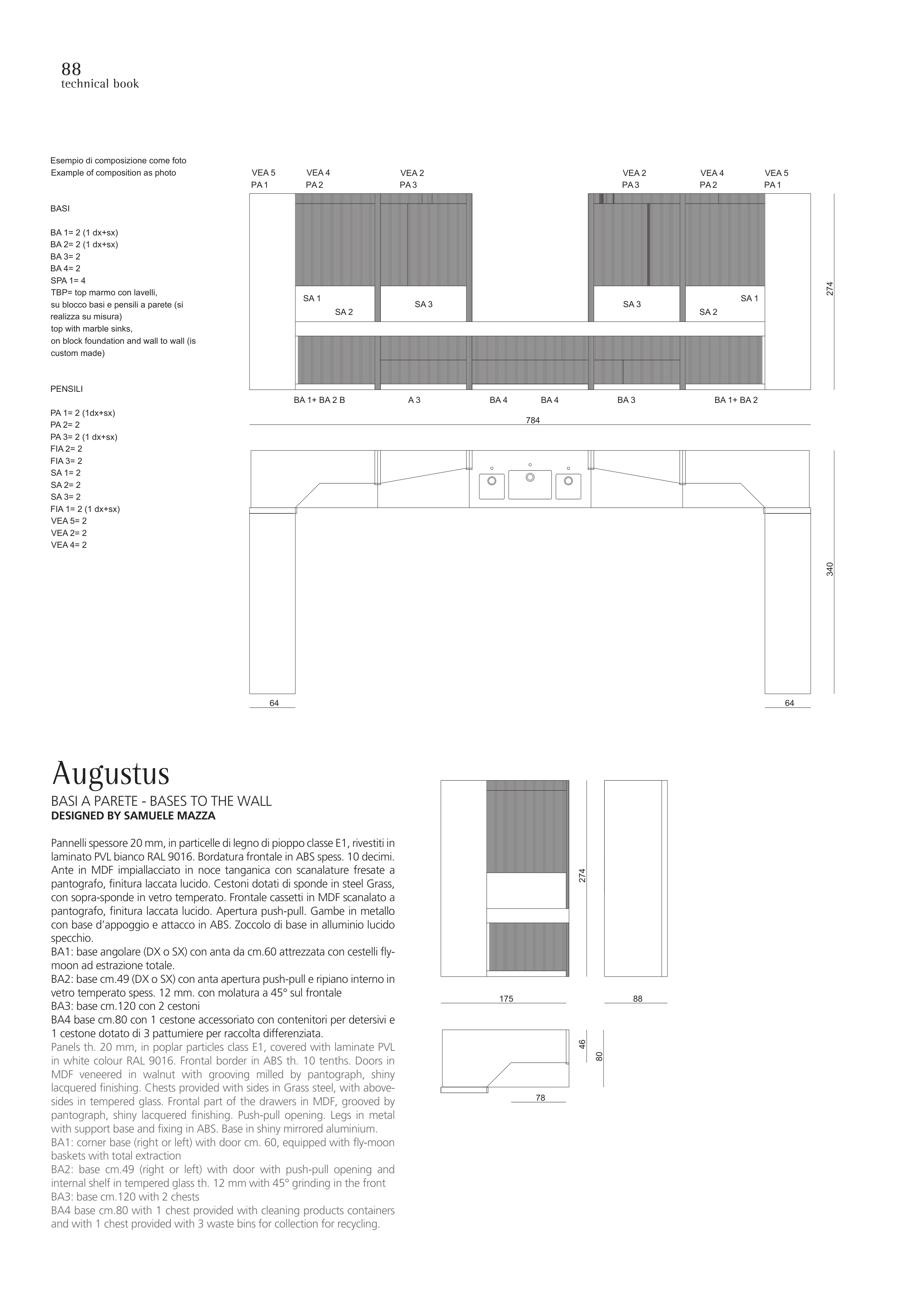

Esempio di composizione come foto
Example of composition as photo
BASI
BA 1= 2 (1 dx+sx)
BA 2= 2 (1 dx+sx)
BA 3= 2
BA 4= 2
SPA 1= 4
TBP= top marmo con lavelli,
su blocco basi e pensili a parete (si
realizza su misura)
top with marble sinks,
on block foundation and wall to wall (is
custom made)
PENSILI
PA 1= 2 (1dx+sx)
PA 2= 2
PA 3= 2 (1 dx+sx)
FIA 2= 2
FIA 3= 2
SA 1= 2
SA 2= 2
SA 3= 2
FIA 1= 2 (1 dx+sx)
VEA 5= 2
VEA 2= 2
VEA 4= 2
784
274
340
64
64
VEA 5
PA 1
VEA 4
PA 2
VEA 2
PA 3
SA 1
SA 2
SA 3
BA 1+ BA 2 B
A 3
BA 4
VEA 5
PA 1
VEA 4
PA 2
VEA 2
PA 3
SA 3
SA 2
SA 1
BA 4
BA 3
BA 1+ BA 2
46
78
80
88
175
274
Augustus
BASI A PARETE - BASES TO THE WALL
DesigneD by samuele mazza
Pannelli spessore 20 mm, in particelle di legno di pioppo classe E1, rivestiti in
laminato PVL bianco RAL 9016. Bordatura frontale in ABS spess. 10 decimi.
Ante in MDF impiallacciato in noce tanganica con scanalature fresate a
pantografo, finitura laccata lucido. Cestoni dotati di sponde in steel Grass,
con sopra-sponde in vetro temperato. Frontale cassetti in MDF scanalato a
pantografo, finitura laccata lucido. Apertura push-pull. Gambe in metallo
con base d’appoggio e attacco in ABS. Zoccolo di base in alluminio lucido
specchio.
BA1: base angolare (DX o SX) con anta da cm.60 attrezzata con cestelli fly-
moon ad estrazione totale.
BA2: base cm.49 (DX o SX) con anta apertura push-pull e ripiano interno in
vetro temperato spess. 12 mm. con molatura a 45° sul frontale
BA3: base cm.120 con 2 cestoni
BA4 base cm.80 con 1 cestone accessoriato con contenitori per detersivi e
1 cestone dotato di 3 pattumiere per raccolta differenziata.
Panels th. 20 mm, in poplar particles class E1, covered with laminate PVL
in white colour RAL 9016. Frontal border in ABS th. 10 tenths. Doors in
MDF veneered in walnut with grooving milled by pantograph, shiny
lacquered finishing. Chests provided with sides in Grass steel, with above-
sides in tempered glass. Frontal part of the drawers in MDF, grooved by
pantograph, shiny lacquered finishing. Push-pull opening. Legs in metal
with support base and fixing in ABS. Base in shiny mirrored aluminium.
BA1: corner base (right or left) with door cm. 60, equipped with fly-moon
baskets with total extraction
BA2: base cm.49 (right or left) with door with push-pull opening and
internal shelf in tempered glass th. 12 mm with 45° grinding in the front
BA3: base cm.120 with 2 chests
BA4 base cm.80 with 1 chest provided with cleaning products containers
and with 1 chest provided with 3 waste bins for collection for recycling.
88
technical book
