Soft, spherical shapes and a warm luminescence
characterize the Top collection. Its glowing epicenter
is encircled by a larger ring, lending the look of
framing the light within its pure geometry.
Design by Ramos & Bassols

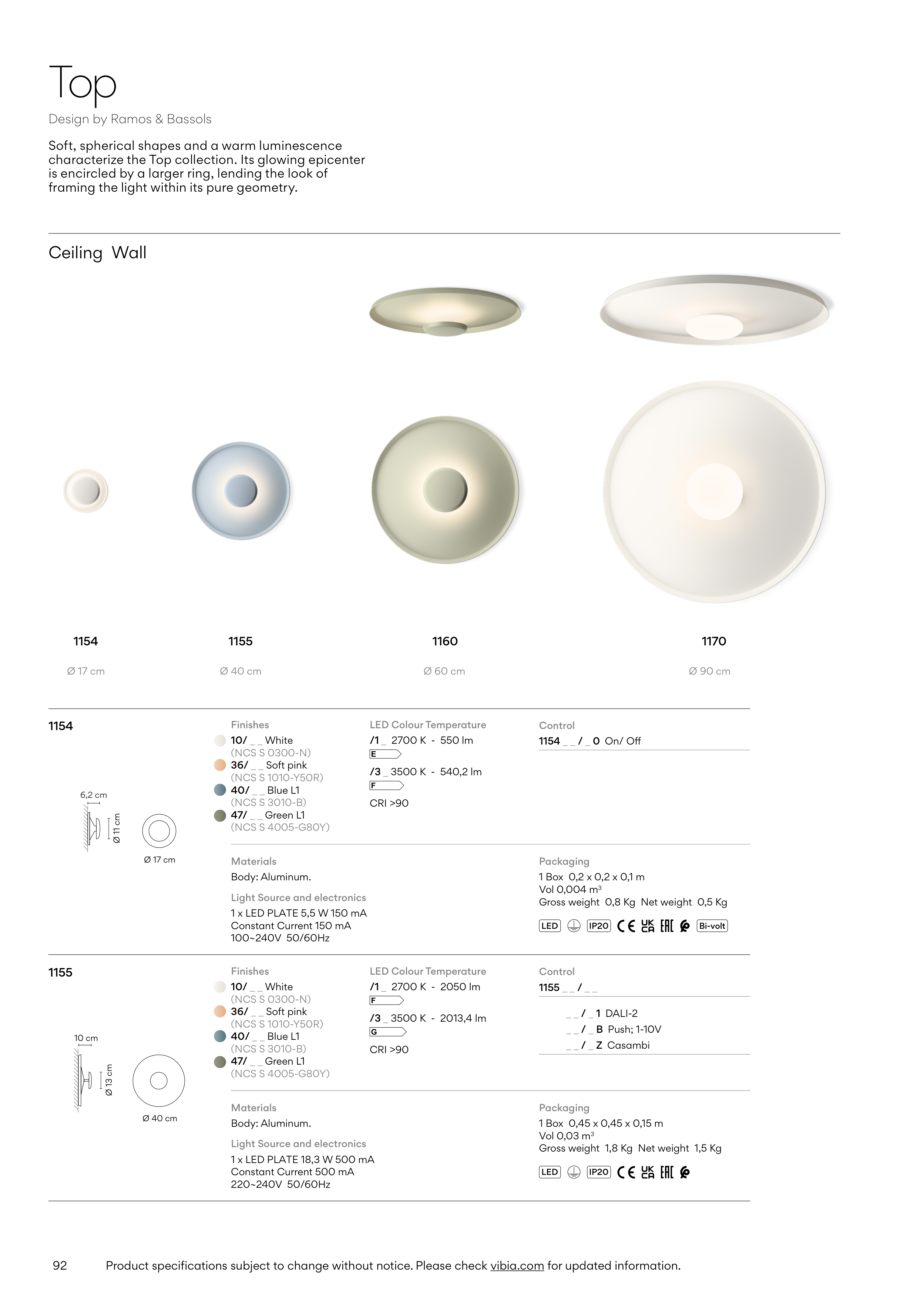

Top
Ceiling Wall
1160
1155
1154
1170
Ø 90 cm
Ø 60 cm
Ø 40 cm
Ø 17 cm
1154
1155
Control
Control
Packaging
1 Box 0,2 x 0,2 x 0,1 m
Vol 0,004 m3
Gross weight 0,8 Kg Net weight 0,5 Kg
Packaging
1 Box 0,45 x 0,45 x 0,15 m
Vol 0,03 m3
Gross weight 1,8 Kg Net weight 1,5 Kg
Materials
Body: Aluminum.
Materials
Body: Aluminum.
Light Source and electronics
1 x LED PLATE 5,5 W 150 mA
Constant Current 150 mA
100~240V 50/60Hz
Light Source and electronics
1 x LED PLATE 18,3 W 500 mA
Constant Current 500 mA
220~240V 50/60Hz
6,2 cm
Ø 17 cm
Ø 11 cm
10 cm
Ø 40 cm
Ø 13 cm
1154 _ _ / _ 0 On/ Off
Finishes
10/ _ _ White
(NCS S 0300-N)
36/ _ _ Soft pink
(NCS S 1010-Y50R)
40/ _ _ Blue L1
(NCS S 3010-B)
47/ _ _ Green L1
(NCS S 4005-G80Y)
Finishes
10/ _ _ White
(NCS S 0300-N)
36/ _ _ Soft pink
(NCS S 1010-Y50R)
40/ _ _ Blue L1
(NCS S 3010-B)
47/ _ _ Green L1
(NCS S 4005-G80Y)
LED Colour Temperature
/1 _ 2700 K - 550 lm
E
/3 _ 3500 K - 540,2 lm
F
CRI >90
LED Colour Temperature
/1 _ 2700 K - 2050 lm
F
/3 _ 3500 K - 2013,4 lm
G
CRI >90
1155 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ B Push; 1-10V
_ _ / _ Z Casambi
Bi-volt
IP20
LED
IP20
LED
