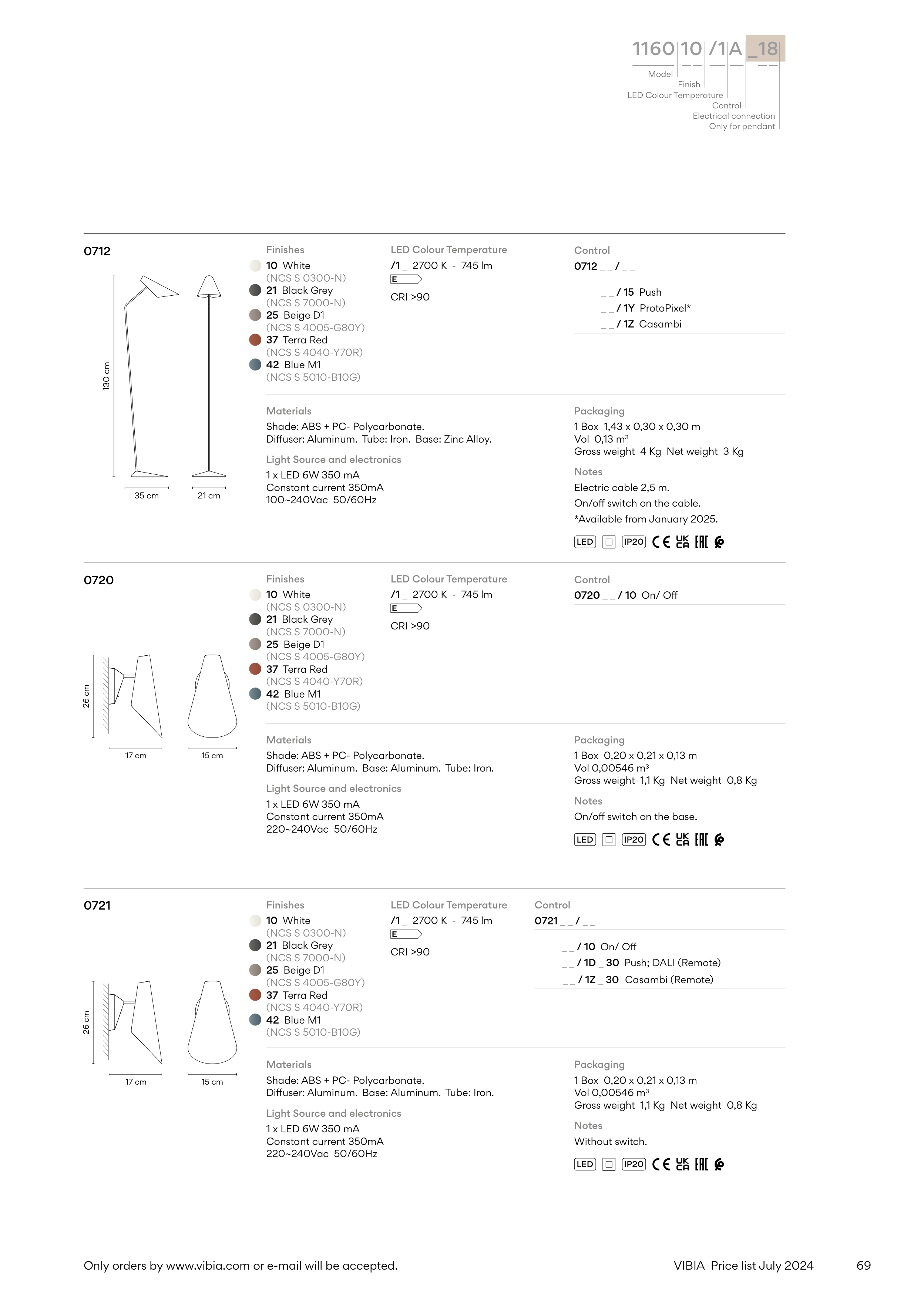

VIBIA Price list July 2024
Finish
Electrical connection
LED Colour Temperature
Model
1160 10 /1 A _18
Control
Only for pendant
0712
0720
LED Colour Temperature
/1 _ 2700 K - 745 lm
E
CRI >90
LED Colour Temperature
/1 _ 2700 K - 745 lm
E
CRI >90
Control
Control
Packaging
1 Box 1,43 x 0,30 x 0,30 m
Vol 0,13 m3
Gross weight 4 Kg Net weight 3 Kg
Packaging
1 Box 0,20 x 0,21 x 0,13 m
Vol 0,00546 m3
Gross weight 1,1 Kg Net weight 0,8 Kg
Materials
Shade: ABS + PC- Polycarbonate.
Diffuser: Aluminum. Tube: Iron. Base: Zinc Alloy.
Materials
Shade: ABS + PC- Polycarbonate.
Diffuser: Aluminum. Base: Aluminum. Tube: Iron.
Light Source and electronics
1 x LED 6W 350 mA
Constant current 350mA
100~240Vac 50/60Hz
Light Source and electronics
1 x LED 6W 350 mA
Constant current 350mA
220~240Vac 50/60Hz
35 cm
130 cm
21 cm
17 cm
15 cm
26 cm
Notes
Electric cable 2,5 m.
On/off switch on the cable.
*Available from January 2025.
Notes
On/off switch on the base.
0712 _ _ / _ _
_ _ / 15 Push
_ _ / 1Y ProtoPixel*
_ _ / 1Z Casambi
0720 _ _ / 10 On/ Off
Finishes
10 White
(NCS S 0300-N)
21 Black Grey
(NCS S 7000-N)
25 Beige D1
(NCS S 4005-G80Y)
37 Terra Red
(NCS S 4040-Y70R)
42 Blue M1
(NCS S 5010-B10G)
Finishes
10 White
(NCS S 0300-N)
21 Black Grey
(NCS S 7000-N)
25 Beige D1
(NCS S 4005-G80Y)
37 Terra Red
(NCS S 4040-Y70R)
42 Blue M1
(NCS S 5010-B10G)
Finishes
10 White
(NCS S 0300-N)
21 Black Grey
(NCS S 7000-N)
25 Beige D1
(NCS S 4005-G80Y)
37 Terra Red
(NCS S 4040-Y70R)
42 Blue M1
(NCS S 5010-B10G)
17 cm
15 cm
26 cm
0721
LED Colour Temperature
/1 _ 2700 K - 745 lm
E
CRI >90
Control
Packaging
1 Box 0,20 x 0,21 x 0,13 m
Vol 0,00546 m3
Gross weight 1,1 Kg Net weight 0,8 Kg
Notes
Without switch.
Materials
Shade: ABS + PC- Polycarbonate.
Diffuser: Aluminum. Base: Aluminum. Tube: Iron.
Light Source and electronics
1 x LED 6W 350 mA
Constant current 350mA
220~240Vac 50/60Hz
0721 _ _ / _ _
_ _ / 10 On/ Off
_ _ / 1D _ 30 Push; DALI (Remote)
_ _ / 1Z _ 30 Casambi (Remote)
IP20
IP20
IP20
LED
LED
LED
Only orders by www.vibia.com or e-mail will be accepted.
