Product fulfills the requirements
of the relevant European directives.
Product fulfills the requirements
of Great Britain relevant legislation.
Product complying with TP TC 004/2011
and TP TC 020/2011. Custom Union Regulation
Product that complies with the law N24-09
of the current Moroccan legislation.
IP
Level of protection. Electrical products are prepared to avoid
solids and liquids from getting in contact with the electrical parts.
Such resistance is expressed as IP followed by two digits:
the first digit indicates the level of resistance to solid objects
and the second one to liquids.
The scale goes from IP20 to IP69.
Product protected against solid object as big as or bigger
than 12 mm. No protection against water.
Product protected against solid objects as big as or bigger
than 12 mm in the built-in part. In the visible part of the luminaire,
product protected against solid objects as big as or bigger
than 1 mm. No protection against water.
Dust-tight product. Protected against water spray.
Dust-tight product. Protected against water trickles.
Dust-tight product. Protected against water spurts.
Insulation class
Class I. Product with an additional protection cable (grounds).
Class II. Product protected against electric shock having
a double insulation. No grounds.
Class III. Product protected against electric shock based
on a very-low voltage system. No grounds.
Valid for the range 110V-230V, 50-60Hz.
Valid for the range 110-277V, 50-60Hz.
504
Product specifications subject to change without notice. Please check vibia.com for updated information.
Cut out
Property for embedding dimension.
Integrated Dimmer
Lamp that has a integrated dimmer.
EU Energetic label
Light source information
CRI
Colour rendering index.
K
LED Colour Temperature.
lm
Lumen, unit of measurement of luminous flux.
lm/W
Light source performance. Relationship between
the luminous flux (lm) and the power consumed (W)
by the source.
LED included.
IP20
IP64
IP65
IP66
Dimmer
Bi-volt
A
B
C
D
E
F
G
More Efficacy
Less Efficacy
Multi-volt
LED

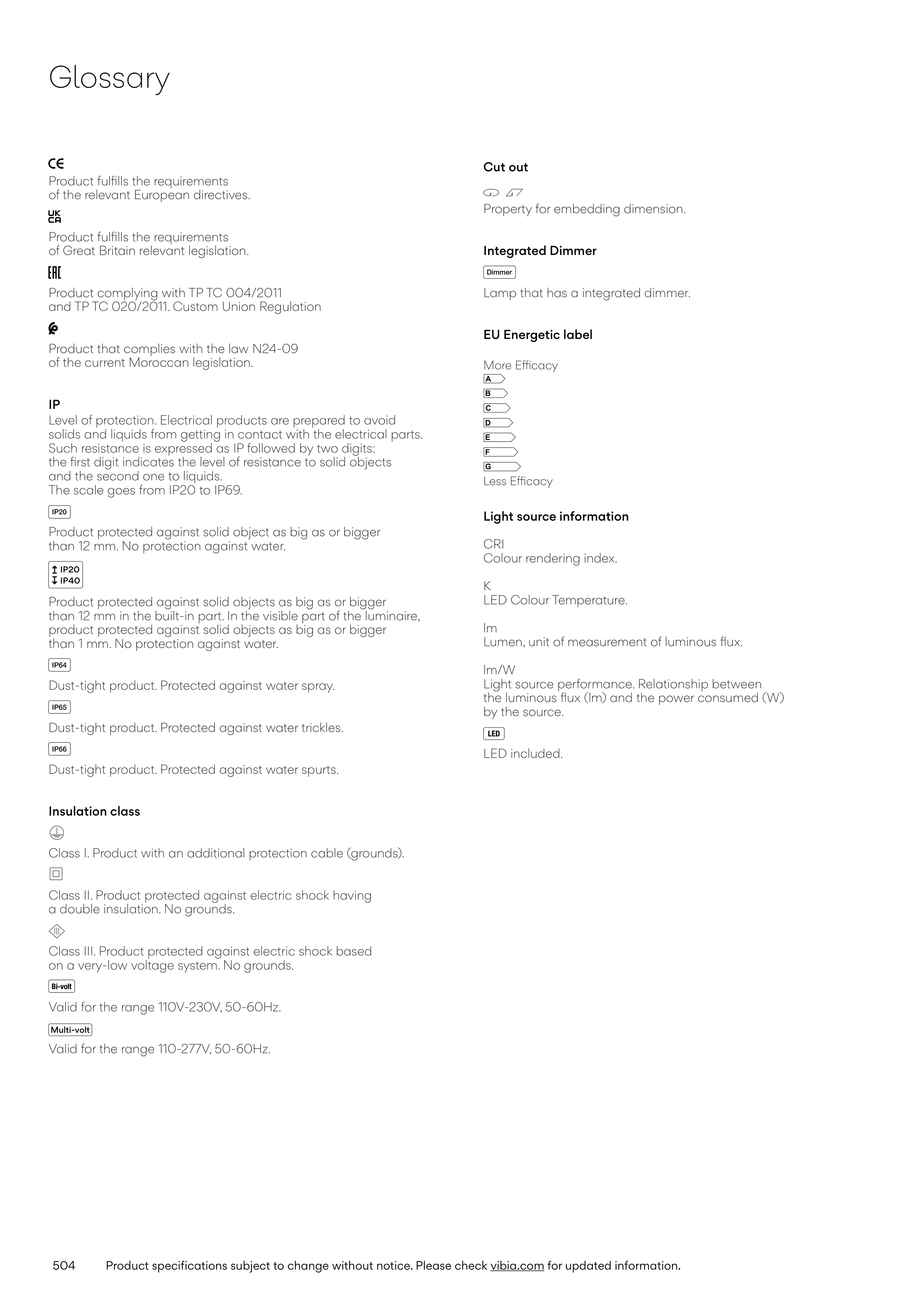

Glossary
IP40
IP20
