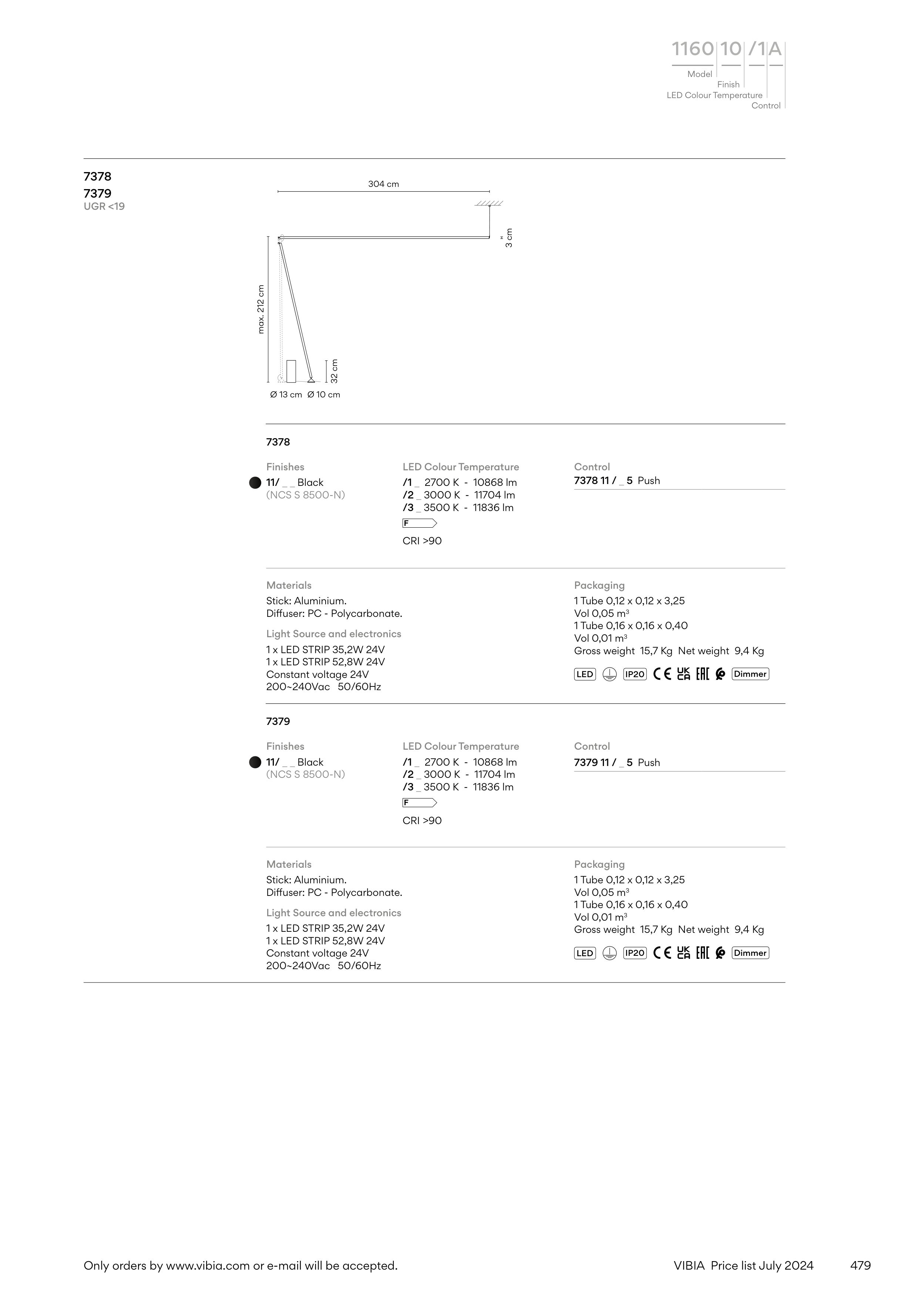

479
VIBIA Price list July 2024
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control
Ø 13 cm Ø 10 cm
304 cm
3 cm
32 cm
max. 212 cm
7378
7379
UGR <19
Dimmer
IP20
LED
Control
Packaging
1 Tube 0,12 x 0,12 x 3,25
Vol 0,05 m3
1 Tube 0,16 x 0,16 x 0,40
Vol 0,01 m3
Gross weight 15,7 Kg Net weight 9,4 Kg
Materials
Stick: Aluminium.
Diffuser: PC - Polycarbonate.
Light Source and electronics
1 x LED STRIP 35,2W 24V
1 x LED STRIP 52,8W 24V
Constant voltage 24V
200~240Vac 50/60Hz
Finishes
11/ _ _ Black
(NCS S 8500-N)
Control
Packaging
1 Tube 0,12 x 0,12 x 3,25
Vol 0,05 m3
1 Tube 0,16 x 0,16 x 0,40
Vol 0,01 m3
Gross weight 15,7 Kg Net weight 9,4 Kg
Materials
Stick: Aluminium.
Diffuser: PC - Polycarbonate.
Light Source and electronics
1 x LED STRIP 35,2W 24V
1 x LED STRIP 52,8W 24V
Constant voltage 24V
200~240Vac 50/60Hz
Finishes
11/ _ _ Black
(NCS S 8500-N)
7378
7379
Dimmer
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 10868 lm
/2 _ 3000 K - 11704 lm
/3 _ 3500 K - 11836 lm
F
CRI >90
LED Colour Temperature
/1 _ 2700 K - 10868 lm
/2 _ 3000 K - 11704 lm
/3 _ 3500 K - 11836 lm
F
CRI >90
7378 11 / _ 5 Push
7379 11 / _ 5 Push
Only orders by www.vibia.com or e-mail will be accepted.
