478
Product specifications subject to change without notice. Please check vibia.com for updated information.

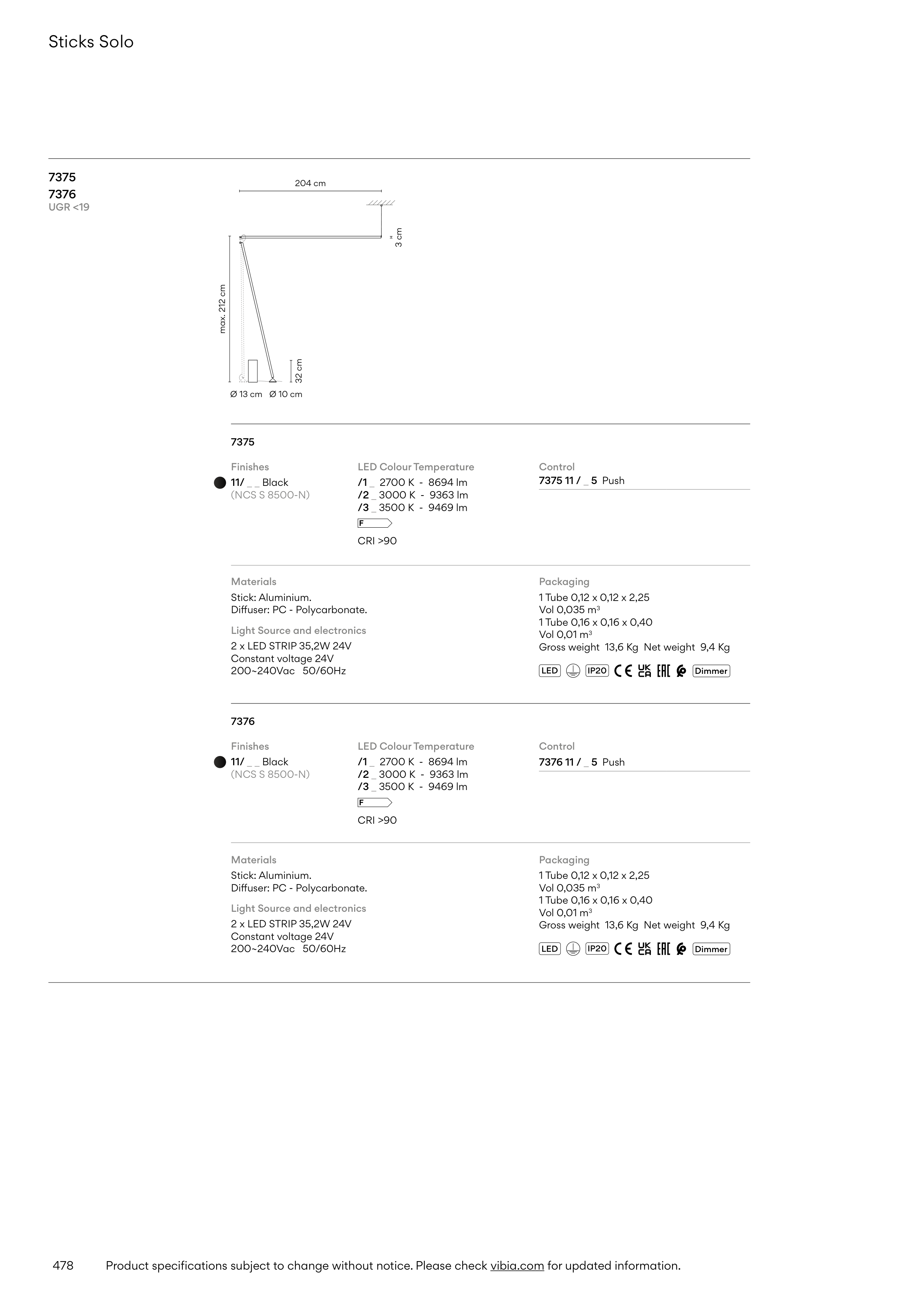

Sticks Solo
Dimmer
LED
IP20
Dimmer
LED
IP20
Packaging
1 Tube 0,12 x 0,12 x 2,25
Vol 0,035 m3
1 Tube 0,16 x 0,16 x 0,40
Vol 0,01 m3
Gross weight 13,6 Kg Net weight 9,4 Kg
Finishes
11/ _ _ Black
(NCS S 8500-N)
Control
Packaging
1 Tube 0,12 x 0,12 x 2,25
Vol 0,035 m3
1 Tube 0,16 x 0,16 x 0,40
Vol 0,01 m3
Gross weight 13,6 Kg Net weight 9,4 Kg
Materials
Stick: Aluminium.
Diffuser: PC - Polycarbonate.
Light Source and electronics
2 x LED STRIP 35,2W 24V
Constant voltage 24V
200~240Vac 50/60Hz
Ø 13 cm
Ø 10 cm
204 cm
3 cm
32 cm
max. 212 cm
7375
Control
Materials
Stick: Aluminium.
Diffuser: PC - Polycarbonate.
Light Source and electronics
2 x LED STRIP 35,2W 24V
Constant voltage 24V
200~240Vac 50/60Hz
Finishes
11/ _ _ Black
(NCS S 8500-N)
7376
7375
7376
UGR <19
LED Colour Temperature
/1 _ 2700 K - 8694 lm
/2 _ 3000 K - 9363 lm
/3 _ 3500 K - 9469 lm
F
CRI >90
LED Colour Temperature
/1 _ 2700 K - 8694 lm
/2 _ 3000 K - 9363 lm
/3 _ 3500 K - 9469 lm
F
CRI >90
7375 11 / _ 5 Push
7376 11 / _ 5 Push
