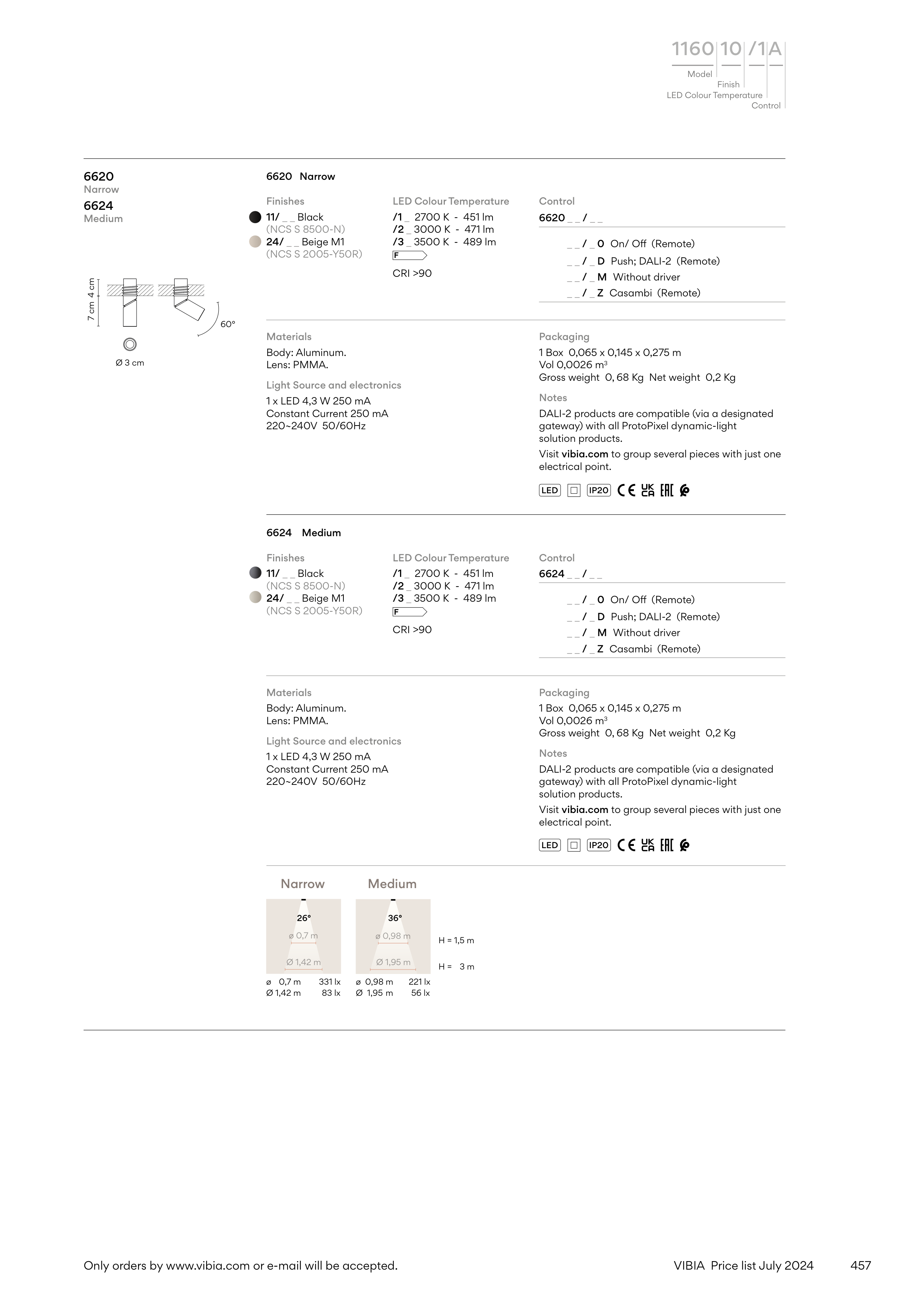

457
VIBIA Price list July 2024
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control
Only orders by www.vibia.com or e-mail will be accepted.
7 cm 4 cm
Ø 3 cm
60°
6620 Narrow
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
Control
Packaging
1 Box 0,065 x 0,145 x 0,275 m
Vol 0,0026 m3
Gross weight 0, 68 Kg Net weight 0,2 Kg
Packaging
1 Box 0,065 x 0,145 x 0,275 m
Vol 0,0026 m3
Gross weight 0, 68 Kg Net weight 0,2 Kg
Materials
Body: Aluminum.
Lens: PMMA.
Materials
Body: Aluminum.
Lens: PMMA.
Light Source and electronics
1 x LED 4,3 W 250 mA
Constant Current 250 mA
220~240V 50/60Hz
Light Source and electronics
1 x LED 4,3 W 250 mA
Constant Current 250 mA
220~240V 50/60Hz
6620
Narrow
6624
Medium
6624 Medium
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
Control
IP20
LED
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 451 lm
/2 _ 3000 K - 471 lm
/3 _ 3500 K - 489 lm
F
CRI >90
LED Colour Temperature
/1 _ 2700 K - 451 lm
/2 _ 3000 K - 471 lm
/3 _ 3500 K - 489 lm
F
CRI >90
ø 0,7 m
331 lx
Ø 1,42 m
83 lx
26°
ø 0,7 m
Ø 1,42 m
ø 0,98 m
221 lx
Ø 1,95 m
56 lx
36°
ø 0,98 m
Ø 1,95 m
H = 1,5 m
H = 3 m
Medium
Narrow
Notes
DALI-2 products are compatible (via a designated
gateway) with all ProtoPixel dynamic-light
solution products.
Visit vibia.com to group several pieces with just one
electrical point.
Notes
DALI-2 products are compatible (via a designated
gateway) with all ProtoPixel dynamic-light
solution products.
Visit vibia.com to group several pieces with just one
electrical point.
6620 _ _ / _ _
_ _ / _ 0 On/ Off (Remote)
_ _ / _ D Push; DALI-2 (Remote)
_ _ / _ M Without driver
_ _ / _ Z Casambi (Remote)
6624 _ _ / _ _
_ _ / _ 0 On/ Off (Remote)
_ _ / _ D Push; DALI-2 (Remote)
_ _ / _ M Without driver
_ _ / _ Z Casambi (Remote)
