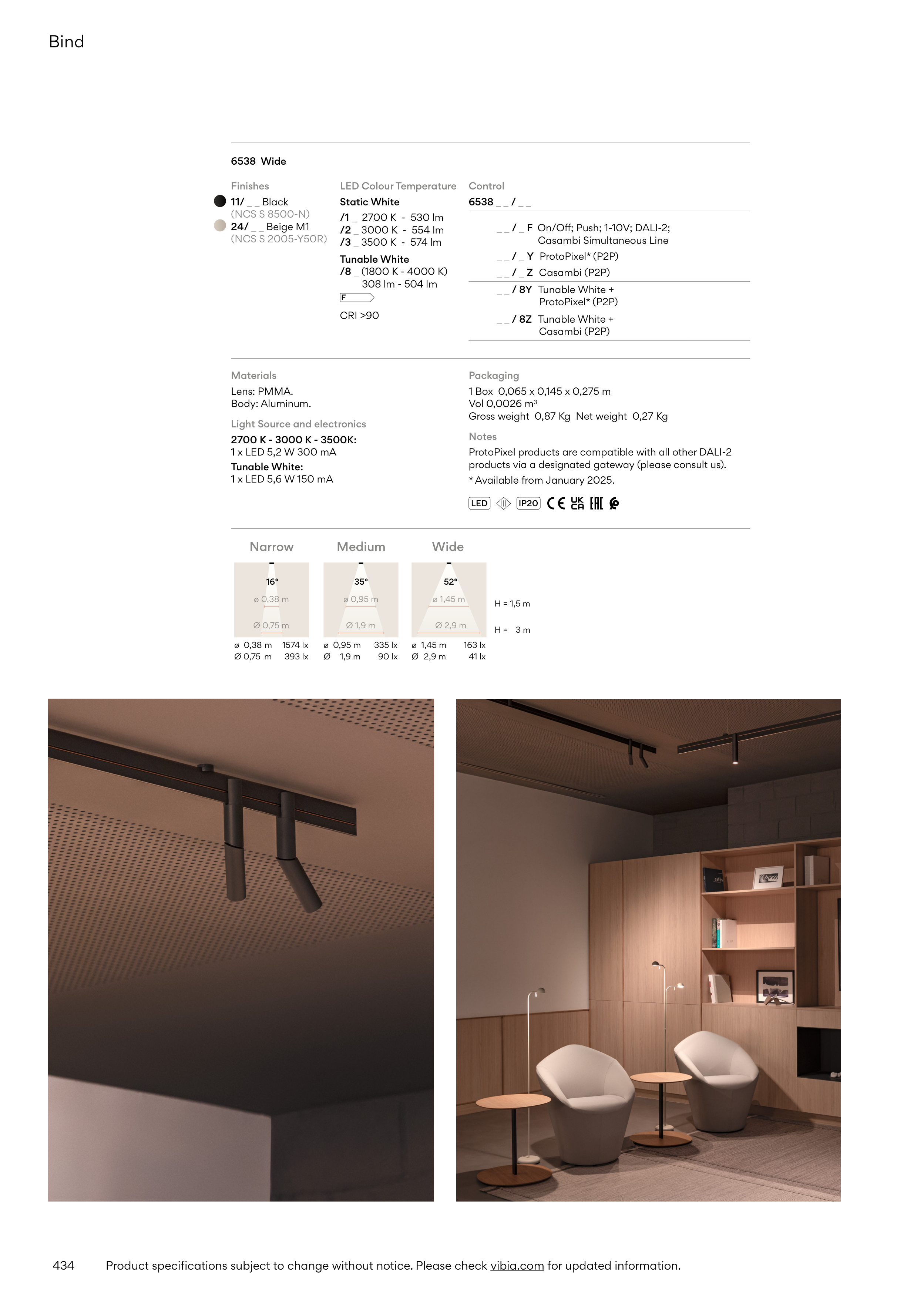

Bind
434
Product specifications subject to change without notice. Please check vibia.com for updated information.
Notes
ProtoPixel products are compatible with all other DALI-2
products via a designated gateway (please consult us).
* Available from January 2025.
LED Colour Temperature
Static White
/1 _ 2700 K - 530 lm
/2 _ 3000 K - 554 lm
/3 _ 3500 K - 574 lm
Tunable White
/8 _ (1800 K - 4000 K)
308 lm - 504 lm
F
CRI >90
Packaging
1 Box 0,065 x 0,145 x 0,275 m
Vol 0,0026 m3
Gross weight 0,87 Kg Net weight 0,27 Kg
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
Control
Materials
Lens: PMMA.
Body: Aluminum.
6538 Wide
Narrow
Medium
Wide
IP20
LED
ø 0,38 m
1574 lx
Ø 0,75 m
393 lx
16°
ø 0,38 m
Ø 0,75 m
ø 0,95 m
335 lx
Ø
1,9 m
90 lx
35°
ø 0,95 m
Ø 1,9 m
ø 1,45 m
163 lx
Ø 2,9 m
41 lx
52°
ø 1,45 m
Ø 2,9 m
H = 1,5 m
H = 3 m
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED 5,2 W 300 mA
Tunable White:
1 x LED 5,6 W 150 mA
6538 _ _ / _ _
_ _ / _ F On/Off; Push; 1-10V; DALI-2;
Casambi Simultaneous Line
_ _ / _ Y ProtoPixel* (P2P)
_ _ / _ Z Casambi (P2P)
_ _ / 8Y Tunable White +
ProtoPixel* (P2P)
_ _ / 8Z Tunable White +
Casambi (P2P)
