432
Product specifications subject to change without notice. Please check vibia.com for updated information.

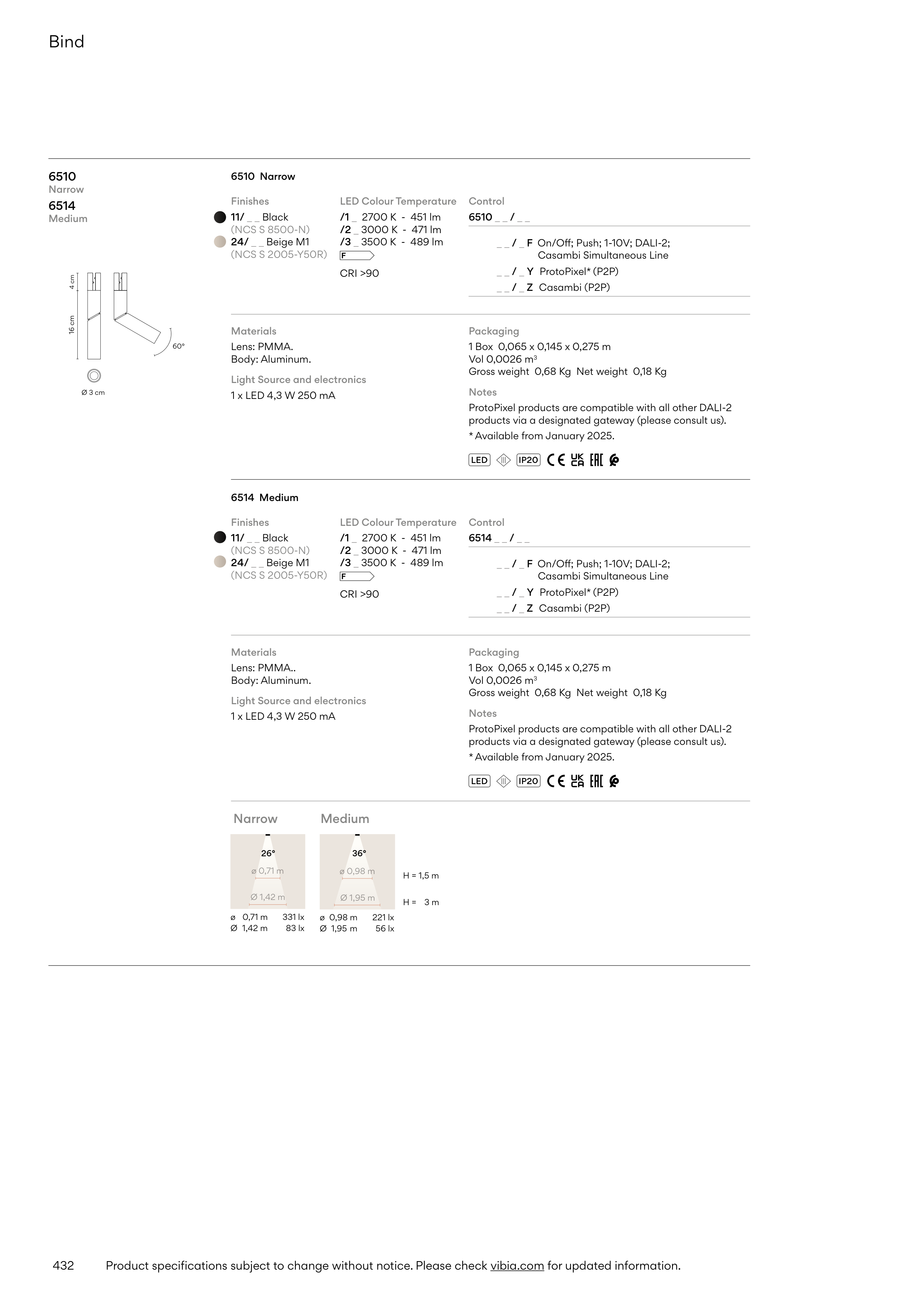

Bind
4 cm
Ø 3 cm
16 cm
60°
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
Control
6510 Narrow
6510
Narrow
6514
Medium
LED Colour Temperature
/1 _ 2700 K - 451 lm
/2 _ 3000 K - 471 lm
/3 _ 3500 K - 489 lm
F
CRI >90
Packaging
1 Box 0,065 x 0,145 x 0,275 m
Vol 0,0026 m3
Gross weight 0,68 Kg Net weight 0,18 Kg
Packaging
1 Box 0,065 x 0,145 x 0,275 m
Vol 0,0026 m3
Gross weight 0,68 Kg Net weight 0,18 Kg
Materials
Lens: PMMA.
Body: Aluminum.
Light Source and electronics
1 x LED 4,3 W 250 mA
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
Control
Materials
Lens: PMMA..
Body: Aluminum.
Light Source and electronics
1 x LED 4,3 W 250 mA
6514 Medium
Narrow
Medium
IP20
LED
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 451 lm
/2 _ 3000 K - 471 lm
/3 _ 3500 K - 489 lm
F
CRI >90
6510 _ _ / _ _
_ _ / _ F On/Off; Push; 1-10V; DALI-2;
Casambi Simultaneous Line
_ _ / _ Y ProtoPixel* (P2P)
_ _ / _ Z Casambi (P2P)
6514 _ _ / _ _
_ _ / _ F On/Off; Push; 1-10V; DALI-2;
Casambi Simultaneous Line
_ _ / _ Y ProtoPixel* (P2P)
_ _ / _ Z Casambi (P2P)
ø 0,71 m
331 lx
Ø 1,42 m
83 lx
26°
ø 0,71 m
Ø 1,42 m
ø 0,98 m
221 lx
Ø 1,95 m
56 lx
36°
ø 0,98 m
Ø 1,95 m
H = 1,5 m
H = 3 m
Notes
ProtoPixel products are compatible with all other DALI-2
products via a designated gateway (please consult us).
* Available from January 2025.
Notes
ProtoPixel products are compatible with all other DALI-2
products via a designated gateway (please consult us).
* Available from January 2025.
