424
Product specifications subject to change without notice. Please check vibia.com for updated information.

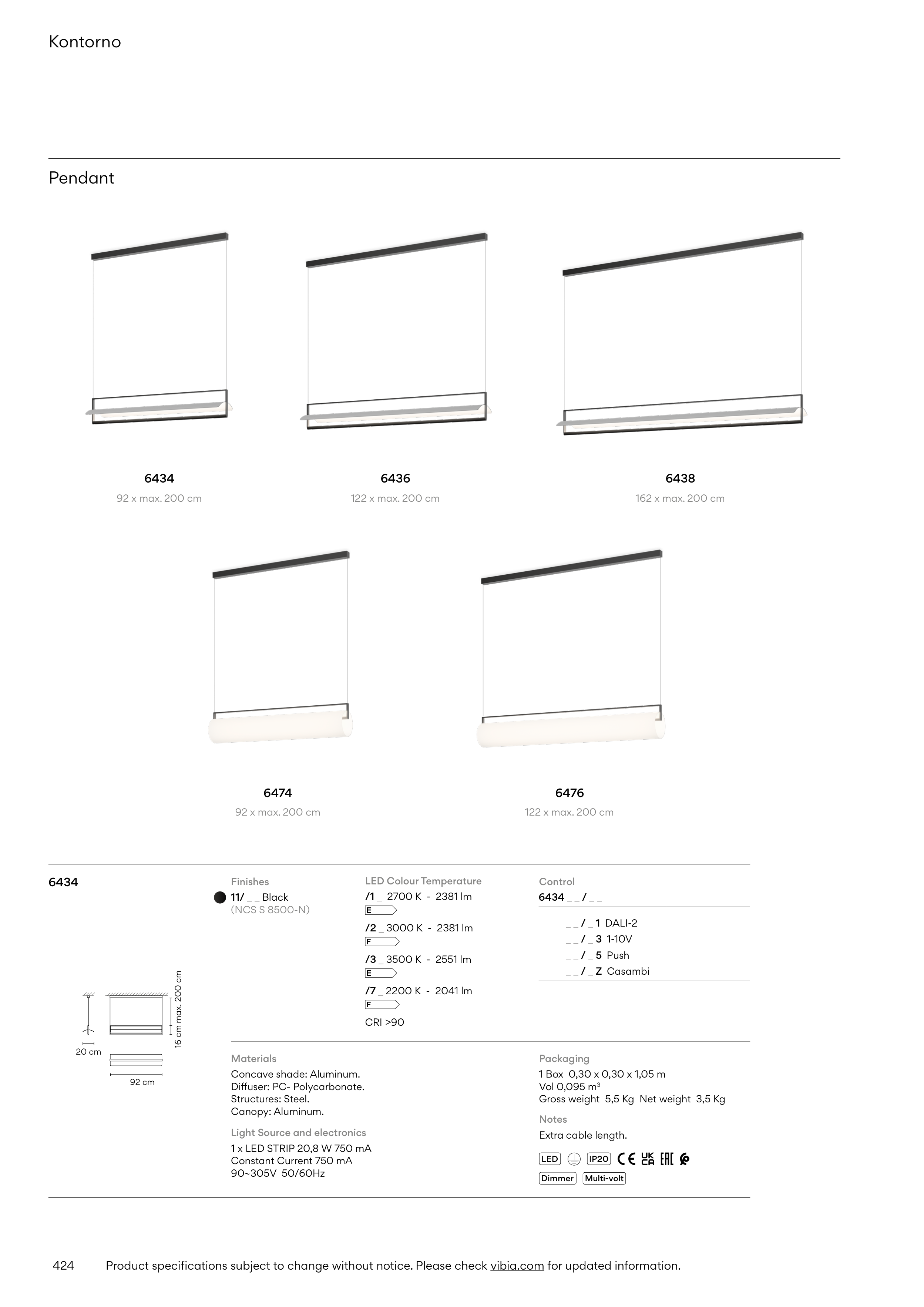

Kontorno
6434
6436
6438
6474
6476
Pendant
92 x max. 200 cm
92 x max. 200 cm
122 x max. 200 cm
122 x max. 200 cm
162 x max. 200 cm
6434
Finishes
11/ _ _ Black
(NCS S 8500-N)
Control
Packaging
1 Box 0,30 x 0,30 x 1,05 m
Vol 0,095 m3
Gross weight 5,5 Kg Net weight 3,5 Kg
Materials
Concave shade: Aluminum.
Diffuser: PC- Polycarbonate.
Structures: Steel.
Canopy: Aluminum.
Light Source and electronics
1 x LED STRIP 20,8 W 750 mA
Constant Current 750 mA
90~305V 50/60Hz
20 cm
92 cm
16 cm max. 200 cm
Notes
Extra cable length.
Dimmer
Multi-volt
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 2381 lm
E
/2 _ 3000 K - 2381 lm
F
/3 _ 3500 K - 2551 lm
E
/7 _ 2200 K - 2041 lm
F
CRI >90
6434 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ 3 1-10V
_ _ / _ 5 Push
_ _ / _ Z Casambi
