418
Product specifications subject to change without notice. Please check vibia.com for updated information.

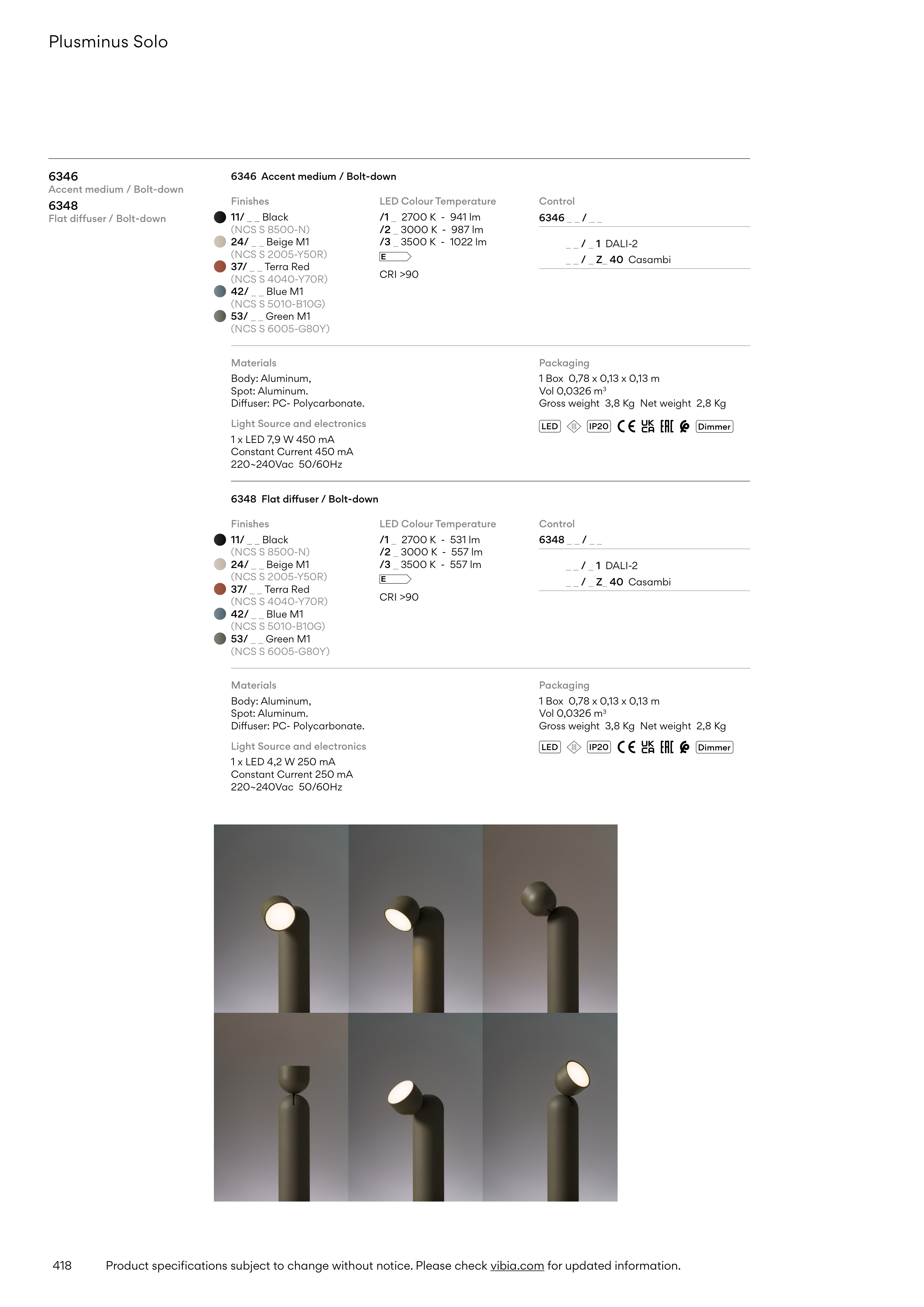

Plusminus Solo
6346 Accent medium / Bolt-down
6348 Flat diffuser / Bolt-down
Control
Packaging
1 Box 0,78 x 0,13 x 0,13 m
Vol 0,0326 m3
Gross weight 3,8 Kg Net weight 2,8 Kg
Materials
Body: Aluminum,
Spot: Aluminum.
Diffuser: PC- Polycarbonate.
Light Source and electronics
1 x LED 7,9 W 450 mA
Constant Current 450 mA
220~240Vac 50/60Hz
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
42/ _ _ Blue M1
(NCS S 5010-B10G)
53/ _ _ Green M1
(NCS S 6005-G80Y)
Control
Packaging
1 Box 0,78 x 0,13 x 0,13 m
Vol 0,0326 m3
Gross weight 3,8 Kg Net weight 2,8 Kg
Materials
Body: Aluminum,
Spot: Aluminum.
Diffuser: PC- Polycarbonate.
Light Source and electronics
1 x LED 4,2 W 250 mA
Constant Current 250 mA
220~240Vac 50/60Hz
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
42/ _ _ Blue M1
(NCS S 5010-B10G)
53/ _ _ Green M1
(NCS S 6005-G80Y)
6346
Accent medium / Bolt-down
6348
Flat diffuser / Bolt-down
Dimmer
IP20
LED
Dimmer
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 941 lm
/2 _ 3000 K - 987 lm
/3 _ 3500 K - 1022 lm
E
CRI >90
LED Colour Temperature
/1 _ 2700 K - 531 lm
/2 _ 3000 K - 557 lm
/3 _ 3500 K - 557 lm
E
CRI >90
6346 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ Z_ 40 Casambi
6348 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ Z_ 40 Casambi
