417

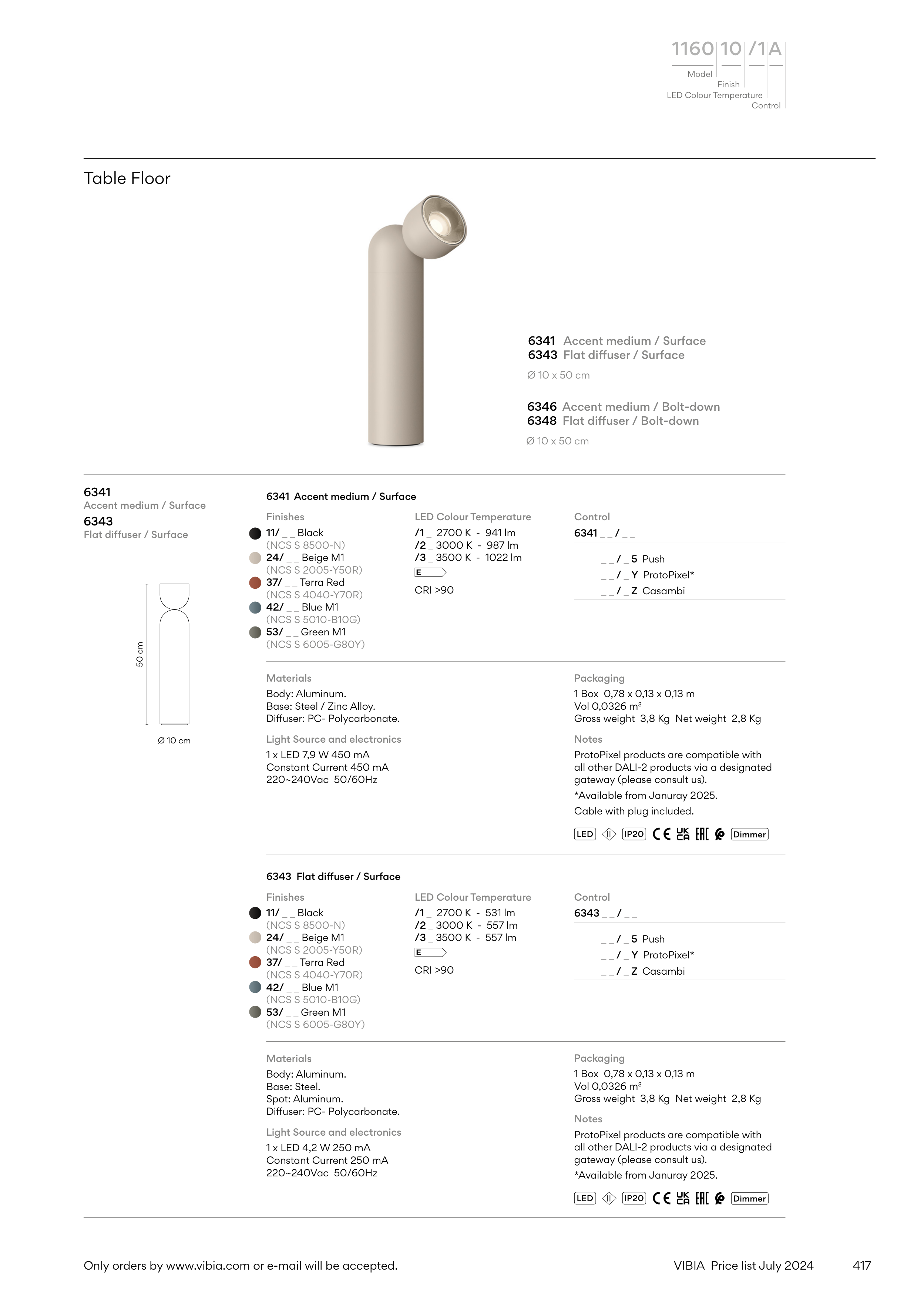

VIBIA Price list July 2024
Table Floor
6341 Accent medium / Surface
6343 Flat diffuser / Surface
Control
Packaging
1 Box 0,78 x 0,13 x 0,13 m
Vol 0,0326 m3
Gross weight 3,8 Kg Net weight 2,8 Kg
Materials
Body: Aluminum.
Base: Steel / Zinc Alloy.
Diffuser: PC- Polycarbonate.
Light Source and electronics
1 x LED 7,9 W 450 mA
Constant Current 450 mA
220~240Vac 50/60Hz
Ø 10 cm
50 cm
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
42/ _ _ Blue M1
(NCS S 5010-B10G)
53/ _ _ Green M1
(NCS S 6005-G80Y)
Control
Packaging
1 Box 0,78 x 0,13 x 0,13 m
Vol 0,0326 m3
Gross weight 3,8 Kg Net weight 2,8 Kg
Materials
Body: Aluminum.
Base: Steel.
Spot: Aluminum.
Diffuser: PC- Polycarbonate.
Light Source and electronics
1 x LED 4,2 W 250 mA
Constant Current 250 mA
220~240Vac 50/60Hz
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
42/ _ _ Blue M1
(NCS S 5010-B10G)
53/ _ _ Green M1
(NCS S 6005-G80Y)
6341
Accent medium / Surface
6343
Flat diffuser / Surface
6341 Accent medium / Surface
6343 Flat diffuser / Surface
Ø 10 x 50 cm
6346 Accent medium / Bolt-down
6348 Flat diffuser / Bolt-down
Ø 10 x 50 cm
Dimmer
IP20
LED
Dimmer
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 941 lm
/2 _ 3000 K - 987 lm
/3 _ 3500 K - 1022 lm
E
CRI >90
LED Colour Temperature
/1 _ 2700 K - 531 lm
/2 _ 3000 K - 557 lm
/3 _ 3500 K - 557 lm
E
CRI >90
6341 _ _ / _ _
_ _ / _ 5 Push
_ _ / _ Y ProtoPixel*
_ _ / _ Z Casambi
6343 _ _ / _ _
_ _ / _ 5 Push
_ _ / _ Y ProtoPixel*
_ _ / _ Z Casambi
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control
Notes
ProtoPixel products are compatible with
all other DALI-2 products via a designated
gateway (please consult us).
*Available from Januray 2025.
Cable with plug included.
Notes
ProtoPixel products are compatible with
all other DALI-2 products via a designated
gateway (please consult us).
*Available from Januray 2025.
Only orders by www.vibia.com or e-mail will be accepted.
