392
Product specifications subject to change without notice. Please check vibia.com for updated information.
It is not possible to order luminaires alone,
you need to design your Plusminus on our
website vibia.com

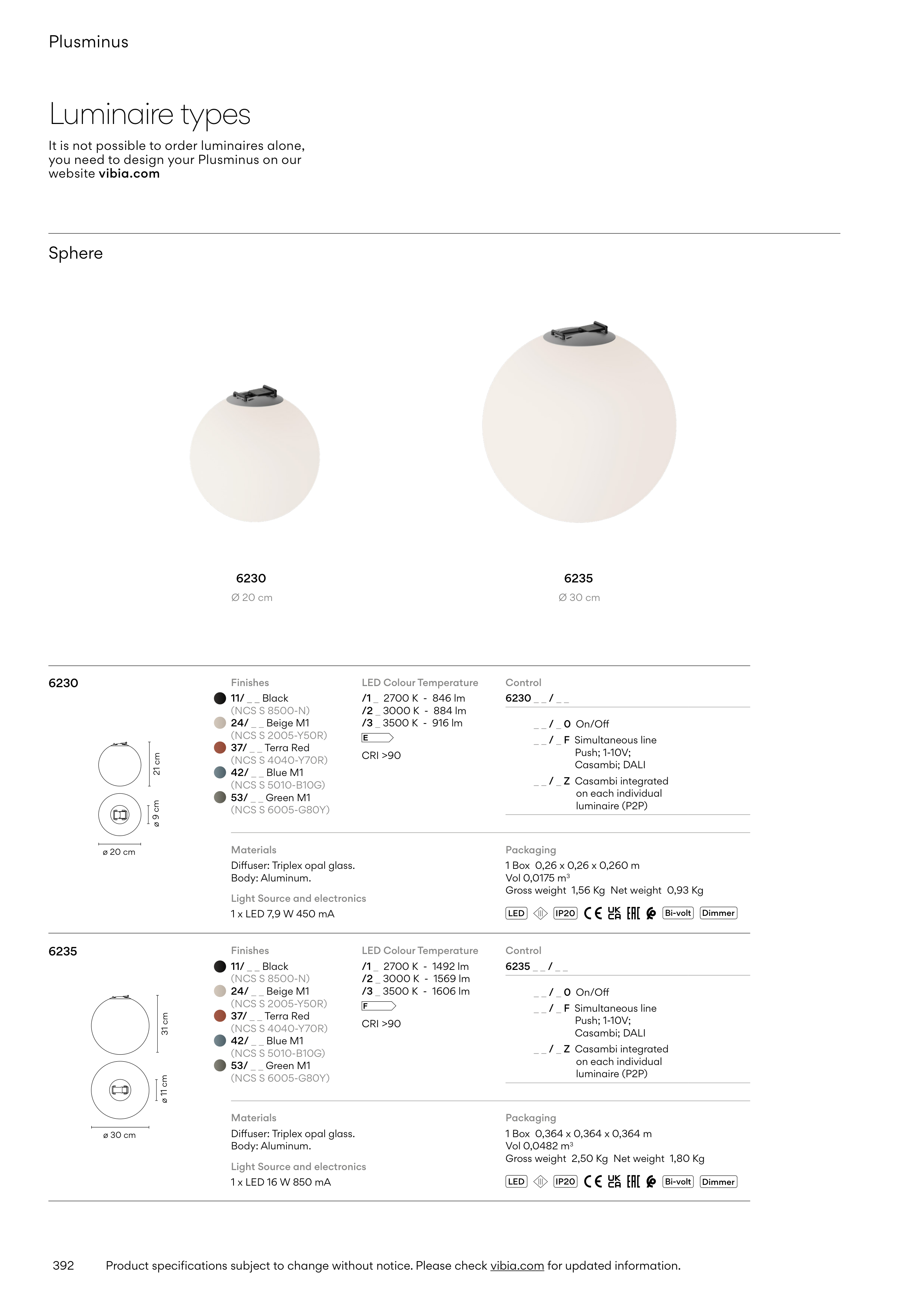

Luminaire types
6230
Control
Packaging
1 Box 0,26 x 0,26 x 0,260 m
Vol 0,0175 m3
Gross weight 1,56 Kg Net weight 0,93 Kg
Materials
Diffuser: Triplex opal glass.
Body: Aluminum.
Light Source and electronics
1 x LED 7,9 W 450 mA
ø 20 cm
ø 9 cm
21 cm
6235
Control
Packaging
1 Box 0,364 x 0,364 x 0,364 m
Vol 0,0482 m3
Gross weight 2,50 Kg Net weight 1,80 Kg
Materials
Diffuser: Triplex opal glass.
Body: Aluminum.
Light Source and electronics
1 x LED 16 W 850 mA
ø 30 cm
ø 11 cm
31 cm
6230
6235
Ø 20 cm
Ø 30 cm
Sphere
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
42/ _ _ Blue M1
(NCS S 5010-B10G)
53/ _ _ Green M1
(NCS S 6005-G80Y)
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
42/ _ _ Blue M1
(NCS S 5010-B10G)
53/ _ _ Green M1
(NCS S 6005-G80Y)
Bi-volt
Dimmer
IP20
LED
Bi-volt
Dimmer
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 846 lm
/2 _ 3000 K - 884 lm
/3 _ 3500 K - 916 lm
E
CRI >90
LED Colour Temperature
/1 _ 2700 K - 1492 lm
/2 _ 3000 K - 1569 lm
/3 _ 3500 K - 1606 lm
F
CRI >90
6230 _ _ / _ _
_ _ / _ 0 On/Off
_ _ / _ F Simultaneous line
Push; 1-10V;
Casambi; DALI
_ _ / _ Z Casambi integrated
on each individual
luminaire (P2P)
6235 _ _ / _ _
_ _ / _ 0 On/Off
_ _ / _ F Simultaneous line
Push; 1-10V;
Casambi; DALI
_ _ / _ Z Casambi integrated
on each individual
luminaire (P2P)
Plusminus
