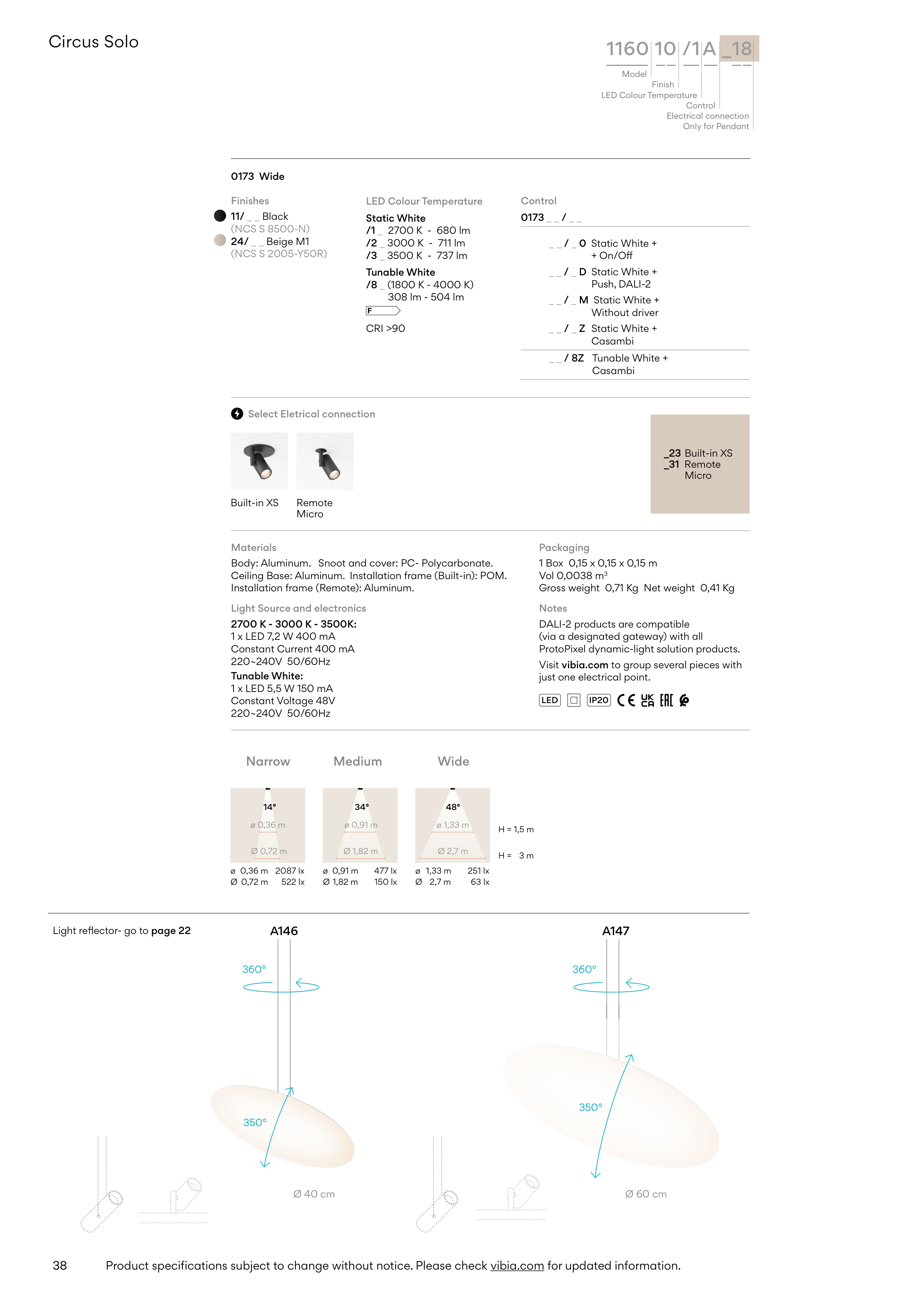

Circus Solo
Finish
Electrical connection
LED Colour Temperature
Model
1160 10 /1 A _18
Control
Only for Pendant
LED Colour Temperature
Static White
/1 _ 2700 K - 680 lm
/2 _ 3000 K - 711 lm
/3 _ 3500 K - 737 lm
Tunable White
/8 _ (1800 K - 4000 K)
308 lm - 504 lm
F
CRI >90
0173 _ _ / _ _
_ _ / _ 0 Static White +
+ On/Off
_ _ / _ D Static White +
Push, DALI-2
_ _ / _ M Static White +
Without driver
_ _ / _ Z Static White +
Casambi
_ _ / 8Z Tunable White +
Casambi
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
Control
0173 Wide
Ø 40 cm
Ø 60 cm
Select Eletrical connection
Packaging
1 Box 0,15 x 0,15 x 0,15 m
Vol 0,0038 m3
Gross weight 0,71 Kg Net weight 0,41 Kg
Materials
Body: Aluminum. Snoot and cover: PC- Polycarbonate.
Ceiling Base: Aluminum. Installation frame (Built-in): POM.
Installation frame (Remote): Aluminum.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED 7,2 W 400 mA
Constant Current 400 mA
220~240V 50/60Hz
Tunable White:
1 x LED 5,5 W 150 mA
Constant Voltage 48V
220~240V 50/60Hz
ø 0,36 m 2087 lx
Ø 0,72 m
522 lx
14°
ø 0,36 m
Ø 0,72 m
ø 0,91 m
477 lx
Ø 1,82 m
150 lx
34°
ø 0,91 m
Ø 1,82 m
ø 1,33 m
251 lx
Ø 2,7 m
63 lx
48°
ø 1,33 m
Ø 2,7 m
H = 1,5 m
H = 3 m
Narrow
Medium
Wide
_23 Built-in XS
_31 Remote
Micro
Light reflector- go to page 22
IP20
LED
Notes
DALI-2 products are compatible
(via a designated gateway) with all
ProtoPixel dynamic-light solution products.
Visit vibia.com to group several pieces with
just one electrical point.
Built-in XS
Remote
Micro
A146
350°
360°
A147
350°
360°
