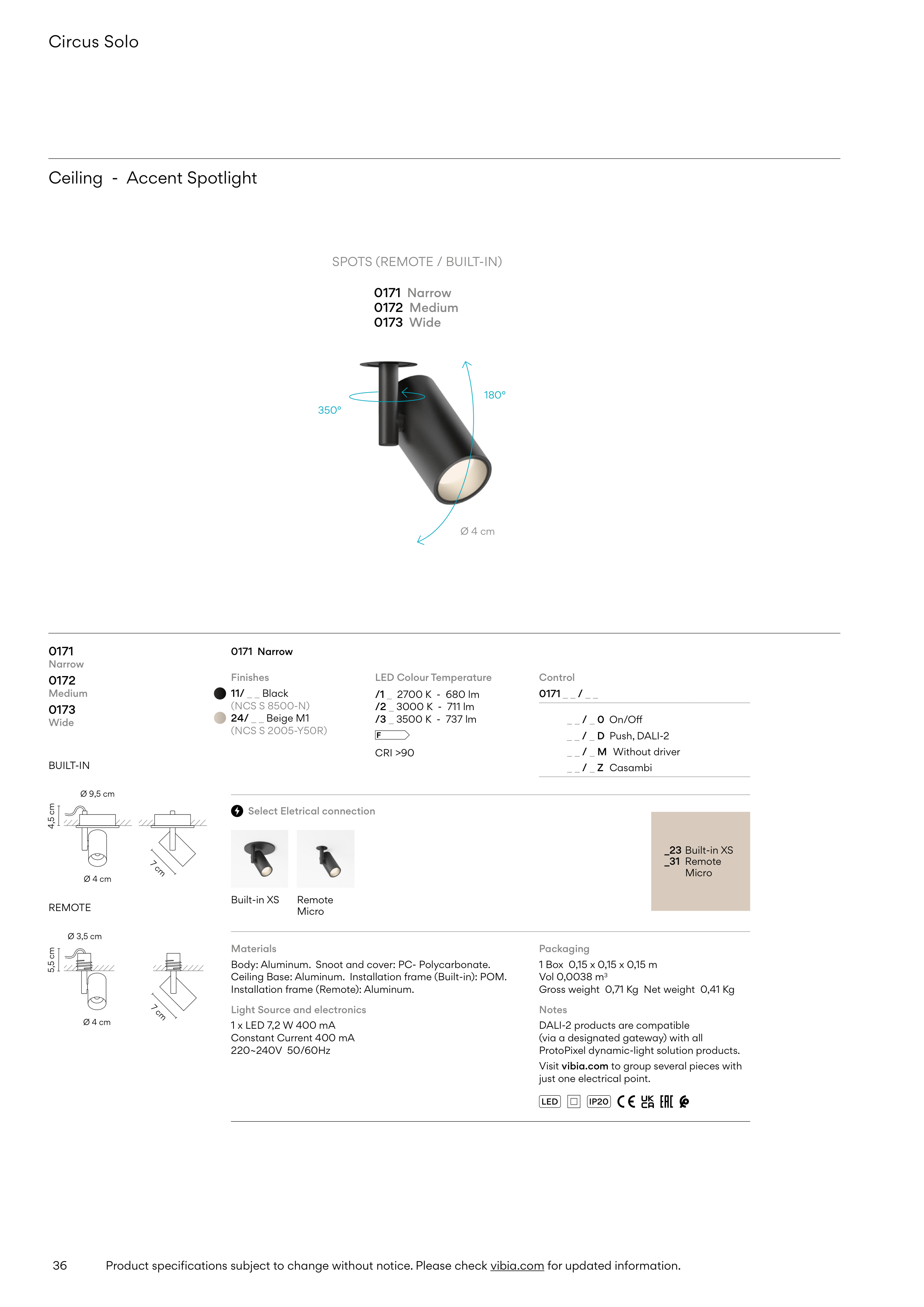

Circus Solo
Ceiling - Accent Spotlight
SPOTS (REMOTE / BUILT-IN)
Ø 4 cm
0171 Narrow
0172 Medium
0173 Wide
0171 Narrow
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
Control
0171
Narrow
0172
Medium
0173
Wide
Packaging
1 Box 0,15 x 0,15 x 0,15 m
Vol 0,0038 m3
Gross weight 0,71 Kg Net weight 0,41 Kg
Materials
Body: Aluminum. Snoot and cover: PC- Polycarbonate.
Ceiling Base: Aluminum. Installation frame (Built-in): POM.
Installation frame (Remote): Aluminum.
Light Source and electronics
1 x LED 7,2 W 400 mA
Constant Current 400 mA
220~240V 50/60Hz
_23 Built-in XS
_31 Remote
Micro
Select Eletrical connection
LED Colour Temperature
/1 _ 2700 K - 680 lm
/2 _ 3000 K - 711 lm
/3 _ 3500 K - 737 lm
F
CRI >90
0171 _ _ / _ _
_ _ / _ 0 On/Off
_ _ / _ D Push, DALI-2
_ _ / _ M Without driver
_ _ / _ Z Casambi
7 cm
Ø 4 cm
Ø 4 cm
7 cm
Ø 9,5 cm
Ø 3,5 cm
BUILT-IN
REMOTE
4,5 cm
5,5 cm
BUILT-IN
7 cm
Ø 4 cm
Ø 4 cm
7 cm
Ø 9,5 cm
Ø 3,5 cm
BUILT-IN
REMOTE
4,5 cm
5,5 cm
REMOTE
IP20
LED
180°
350°
Notes
DALI-2 products are compatible
(via a designated gateway) with all
ProtoPixel dynamic-light solution products.
Visit vibia.com to group several pieces with
just one electrical point.
Built-in XS
Remote
Micro
