350
Product specifications subject to change without notice. Please check vibia.com for updated information.

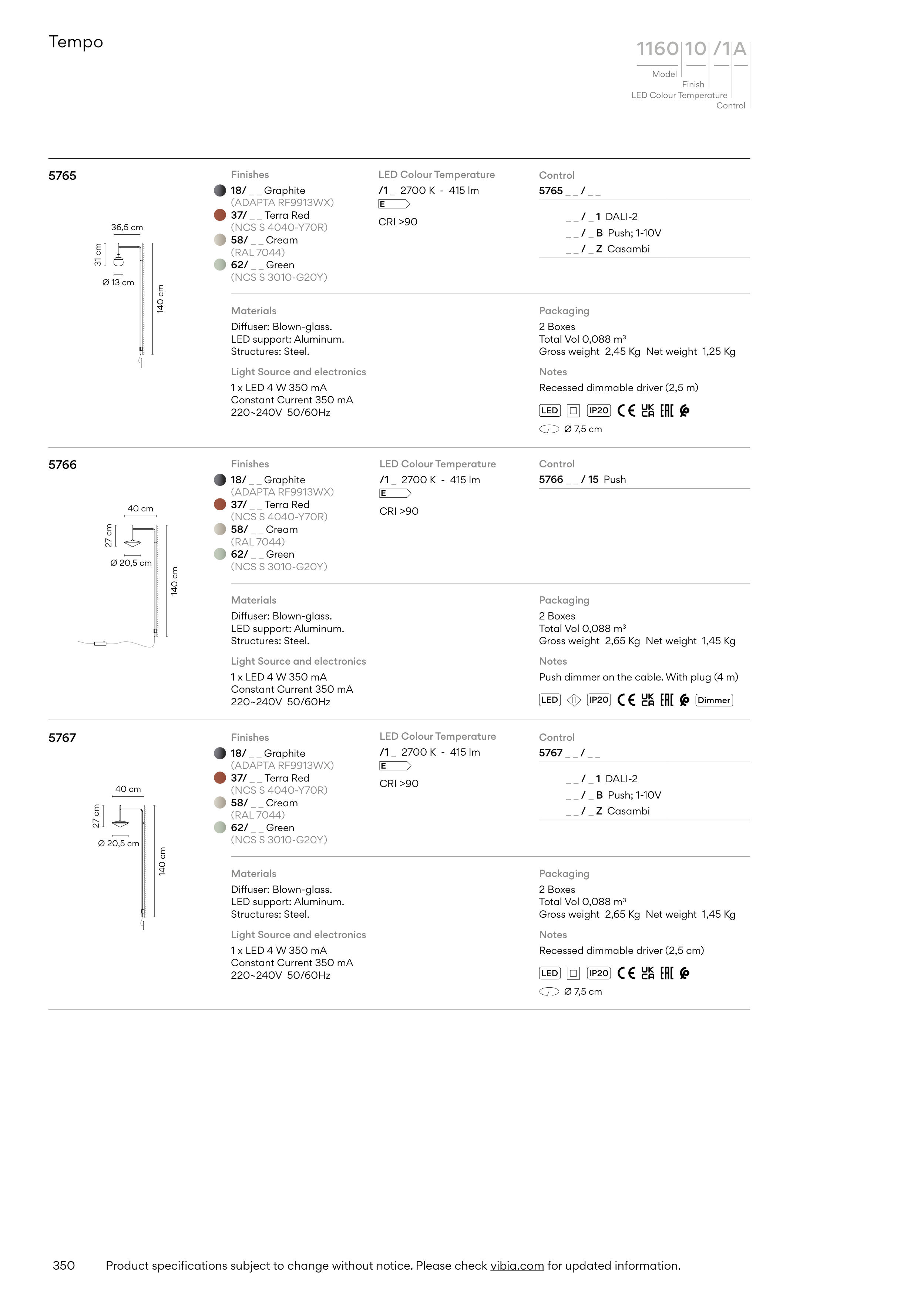

Tempo
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control
5767
Control
Packaging
2 Boxes
Total Vol 0,088 m3
Gross weight 2,65 Kg Net weight 1,45 Kg
Notes
Recessed dimmable driver (2,5 cm)
Materials
Diffuser: Blown-glass.
LED support: Aluminum.
Structures: Steel.
Light Source and electronics
1 x LED 4 W 350 mA
Constant Current 350 mA
220~240V 50/60Hz
140 cm
40 cm
Ø 20,5 cm
27 cm
Finishes
18/ _ _ Graphite
(ADAPTA RF9913WX)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
58/ _ _ Cream
(RAL 7044)
62/ _ _ Green
(NCS S 3010-G20Y)
Ø 7,5 cm
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 415 lm
E
CRI >90
5767 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ B Push; 1-10V
_ _ / _ Z Casambi
5766
Control
Packaging
2 Boxes
Total Vol 0,088 m3
Gross weight 2,65 Kg Net weight 1,45 Kg
Notes
Push dimmer on the cable. With plug (4 m)
Materials
Diffuser: Blown-glass.
LED support: Aluminum.
Structures: Steel.
Light Source and electronics
1 x LED 4 W 350 mA
Constant Current 350 mA
220~240V 50/60Hz
140 cm
40 cm
Ø 20,5 cm
27 cm
Finishes
18/ _ _ Graphite
(ADAPTA RF9913WX)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
58/ _ _ Cream
(RAL 7044)
62/ _ _ Green
(NCS S 3010-G20Y)
Dimmer
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 415 lm
E
CRI >90
5766 _ _ / 15 Push
5765
Control
Packaging
2 Boxes
Total Vol 0,088 m3
Gross weight 2,45 Kg Net weight 1,25 Kg
Notes
Recessed dimmable driver (2,5 m)
Materials
Diffuser: Blown-glass.
LED support: Aluminum.
Structures: Steel.
Light Source and electronics
1 x LED 4 W 350 mA
Constant Current 350 mA
220~240V 50/60Hz
36,5 cm
Ø 13 cm
31 cm
140 cm
Finishes
18/ _ _ Graphite
(ADAPTA RF9913WX)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
58/ _ _ Cream
(RAL 7044)
62/ _ _ Green
(NCS S 3010-G20Y)
Ø 7,5 cm
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 415 lm
E
CRI >90
5765 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ B Push; 1-10V
_ _ / _ Z Casambi
