349

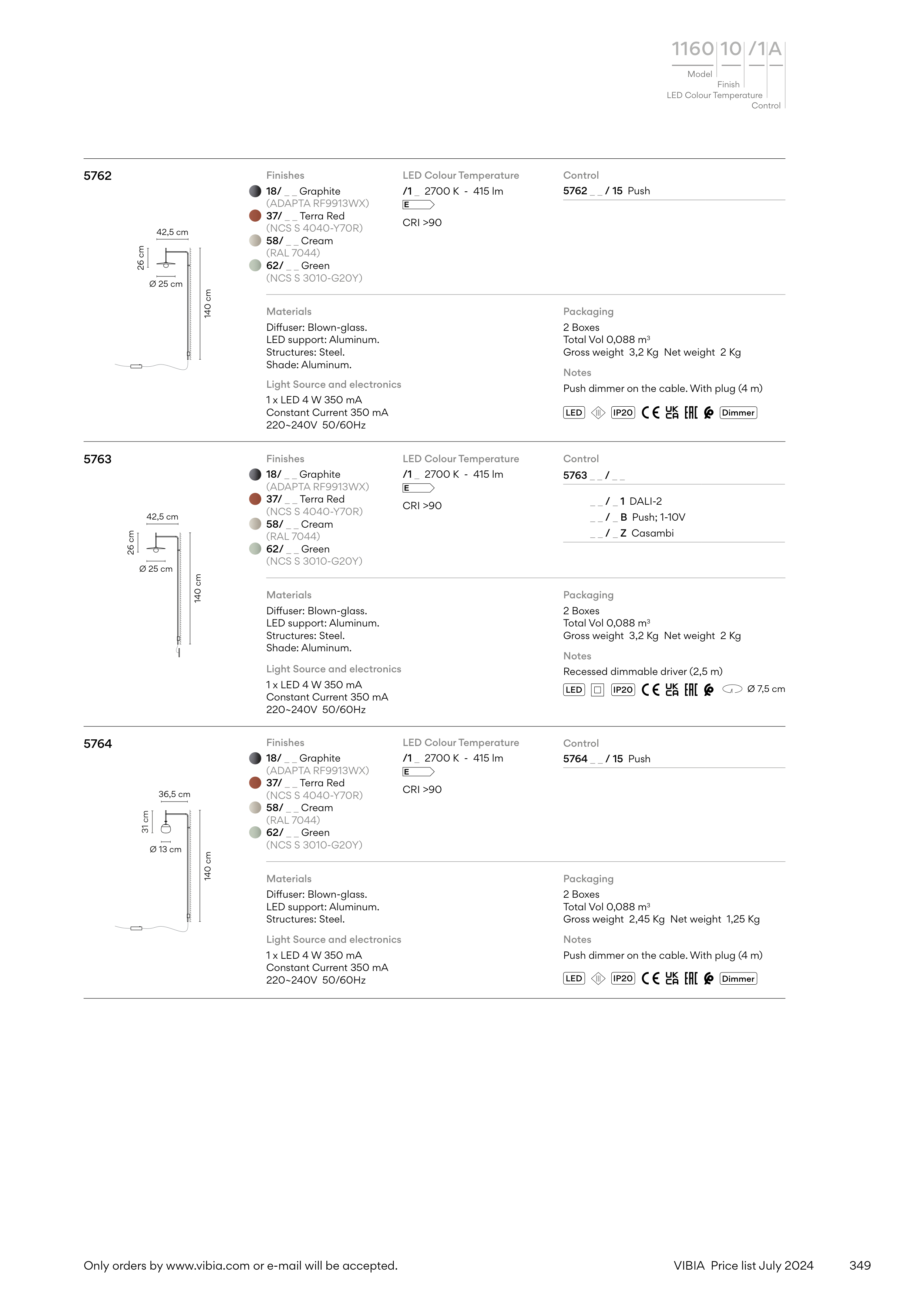

VIBIA Price list July 2024
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control
Finishes
18/ _ _ Graphite
(ADAPTA RF9913WX)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
58/ _ _ Cream
(RAL 7044)
62/ _ _ Green
(NCS S 3010-G20Y)
5762
Control
Packaging
2 Boxes
Total Vol 0,088 m3
Gross weight 3,2 Kg Net weight 2 Kg
Notes
Push dimmer on the cable. With plug (4 m)
Materials
Diffuser: Blown-glass.
LED support: Aluminum.
Structures: Steel.
Shade: Aluminum.
Light Source and electronics
1 x LED 4 W 350 mA
Constant Current 350 mA
220~240V 50/60Hz
26 cm
Ø 25 cm
42,5 cm
140 cm
Dimmer
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 415 lm
E
CRI >90
5762 _ _ / 15 Push
5764
Control
Packaging
2 Boxes
Total Vol 0,088 m3
Gross weight 2,45 Kg Net weight 1,25 Kg
Notes
Push dimmer on the cable. With plug (4 m)
Materials
Diffuser: Blown-glass.
LED support: Aluminum.
Structures: Steel.
Light Source and electronics
1 x LED 4 W 350 mA
Constant Current 350 mA
220~240V 50/60Hz
36,5 cm
Ø 13 cm
31 cm
140 cm
Finishes
18/ _ _ Graphite
(ADAPTA RF9913WX)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
58/ _ _ Cream
(RAL 7044)
62/ _ _ Green
(NCS S 3010-G20Y)
Dimmer
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 415 lm
E
CRI >90
5764 _ _ / 15 Push
Finishes
18/ _ _ Graphite
(ADAPTA RF9913WX)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
58/ _ _ Cream
(RAL 7044)
62/ _ _ Green
(NCS S 3010-G20Y)
5763
Control
Packaging
2 Boxes
Total Vol 0,088 m3
Gross weight 3,2 Kg Net weight 2 Kg
Notes
Recessed dimmable driver (2,5 m)
Materials
Diffuser: Blown-glass.
LED support: Aluminum.
Structures: Steel.
Shade: Aluminum.
Light Source and electronics
1 x LED 4 W 350 mA
Constant Current 350 mA
220~240V 50/60Hz
26 cm
Ø 25 cm
42,5 cm
140 cm
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 415 lm
E
CRI >90
5763 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ B Push; 1-10V
_ _ / _ Z Casambi
Ø 7,5 cm
Only orders by www.vibia.com or e-mail will be accepted.
