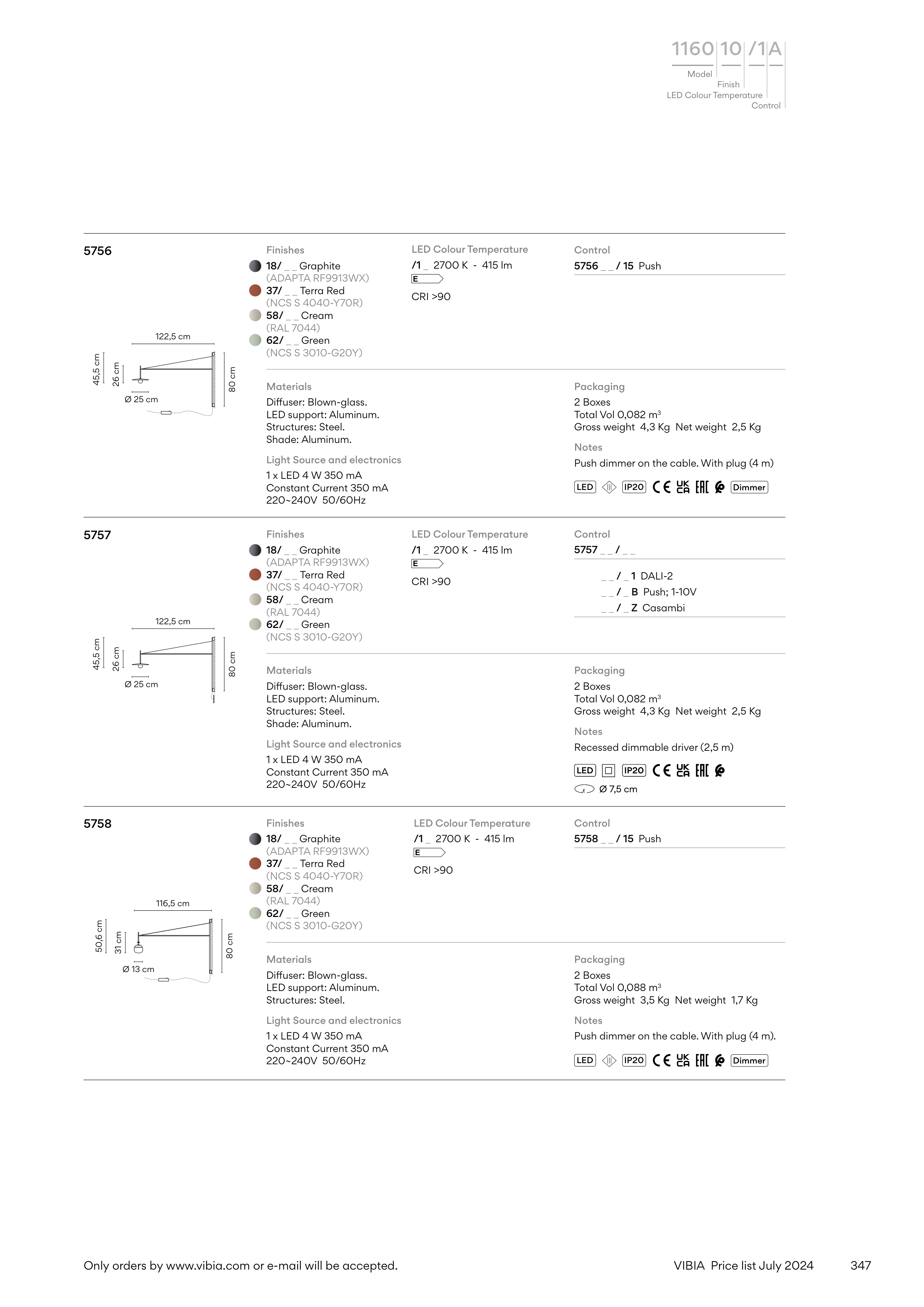

VIBIA Price list July 2024
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control
5756
Control
Packaging
2 Boxes
Total Vol 0,082 m3
Gross weight 4,3 Kg Net weight 2,5 Kg
Notes
Push dimmer on the cable. With plug (4 m)
Materials
Diffuser: Blown-glass.
LED support: Aluminum.
Structures: Steel.
Shade: Aluminum.
Light Source and electronics
1 x LED 4 W 350 mA
Constant Current 350 mA
220~240V 50/60Hz
80 cm
122,5 cm
Ø 25 cm
26 cm
45,5 cm
Finishes
18/ _ _ Graphite
(ADAPTA RF9913WX)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
58/ _ _ Cream
(RAL 7044)
62/ _ _ Green
(NCS S 3010-G20Y)
Dimmer
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 415 lm
E
CRI >90
5756 _ _ / 15 Push
Finishes
18/ _ _ Graphite
(ADAPTA RF9913WX)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
58/ _ _ Cream
(RAL 7044)
62/ _ _ Green
(NCS S 3010-G20Y)
5757
Control
Packaging
2 Boxes
Total Vol 0,082 m3
Gross weight 4,3 Kg Net weight 2,5 Kg
Notes
Recessed dimmable driver (2,5 m)
Materials
Diffuser: Blown-glass.
LED support: Aluminum.
Structures: Steel.
Shade: Aluminum.
Light Source and electronics
1 x LED 4 W 350 mA
Constant Current 350 mA
220~240V 50/60Hz
80 cm
122,5 cm
Ø 25 cm
26 cm
45,5 cm
Ø 7,5 cm
IP20
LED
Ø 7,5 cm
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 415 lm
E
CRI >90
5757 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ B Push; 1-10V
_ _ / _ Z Casambi
Finishes
18/ _ _ Graphite
(ADAPTA RF9913WX)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
58/ _ _ Cream
(RAL 7044)
62/ _ _ Green
(NCS S 3010-G20Y)
5758
Control
Packaging
2 Boxes
Total Vol 0,088 m3
Gross weight 3,5 Kg Net weight 1,7 Kg
Notes
Push dimmer on the cable. With plug (4 m).
Materials
Diffuser: Blown-glass.
LED support: Aluminum.
Structures: Steel.
Light Source and electronics
1 x LED 4 W 350 mA
Constant Current 350 mA
220~240V 50/60Hz
80 cm
116,5 cm
Ø 13 cm
31 cm
50,6 cm
Dimmer
IP20
LED
LED Colour Temperature
/1 _ 2700 K - 415 lm
E
CRI >90
5758 _ _ / 15 Push
Only orders by www.vibia.com or e-mail will be accepted.
