34
Product specifications subject to change without notice. Please check vibia.com for updated information.

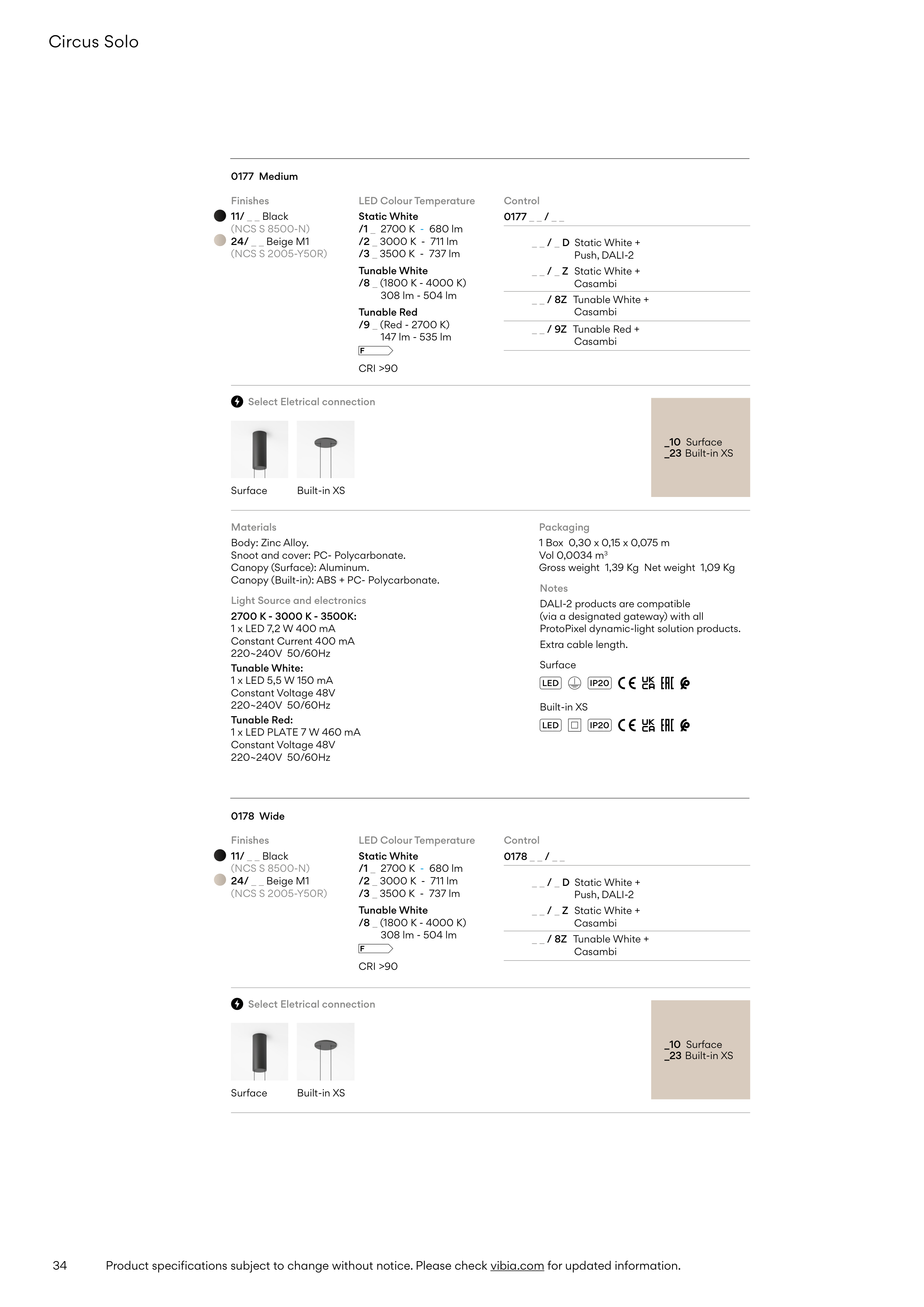

Circus Solo
Packaging
1 Box 0,30 x 0,15 x 0,075 m
Vol 0,0034 m3
Gross weight 1,39 Kg Net weight 1,09 Kg
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
Control
Materials
Body: Zinc Alloy.
Snoot and cover: PC- Polycarbonate.
Canopy (Surface): Aluminum.
Canopy (Built-in): ABS + PC- Polycarbonate.
0177 Medium
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED 7,2 W 400 mA
Constant Current 400 mA
220~240V 50/60Hz
Tunable White:
1 x LED 5,5 W 150 mA
Constant Voltage 48V
220~240V 50/60Hz
Tunable Red:
1 x LED PLATE 7 W 460 mA
Constant Voltage 48V
220~240V 50/60Hz
LED Colour Temperature
Static White
/1 _ 2700 K - 680 lm
/2 _ 3000 K - 711 lm
/3 _ 3500 K - 737 lm
Tunable White
/8 _ (1800 K - 4000 K)
308 lm - 504 lm
Tunable Red
/9 _ (Red - 2700 K)
147 lm - 535 lm
F
CRI >90
_10 Surface
_23 Built-in XS
Select Eletrical connection
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
Control
0178 Wide
0178 _ _ / _ _
_ _ / _ D Static White +
Push, DALI-2
_ _ / _ Z Static White +
Casambi
_ _ / 8Z Tunable White +
Casambi
LED Colour Temperature
Static White
/1 _ 2700 K - 680 lm
/2 _ 3000 K - 711 lm
/3 _ 3500 K - 737 lm
Tunable White
/8 _ (1800 K - 4000 K)
308 lm - 504 lm
F
CRI >90
_10 Surface
_23 Built-in XS
Select Eletrical connection
Surface
Built-in XS
IP20
LED
IP20
LED
0177 _ _ / _ _
_ _ / _ D Static White +
Push, DALI-2
_ _ / _ Z Static White +
Casambi
_ _ / 8Z Tunable White +
Casambi
_ _ / 9Z Tunable Red +
Casambi
Notes
DALI-2 products are compatible
(via a designated gateway) with all
ProtoPixel dynamic-light solution products.
Extra cable length.
Surface
Built-in XS
Surface
Built-in XS
