336
Product specifications subject to change without notice. Please check vibia.com for updated information.

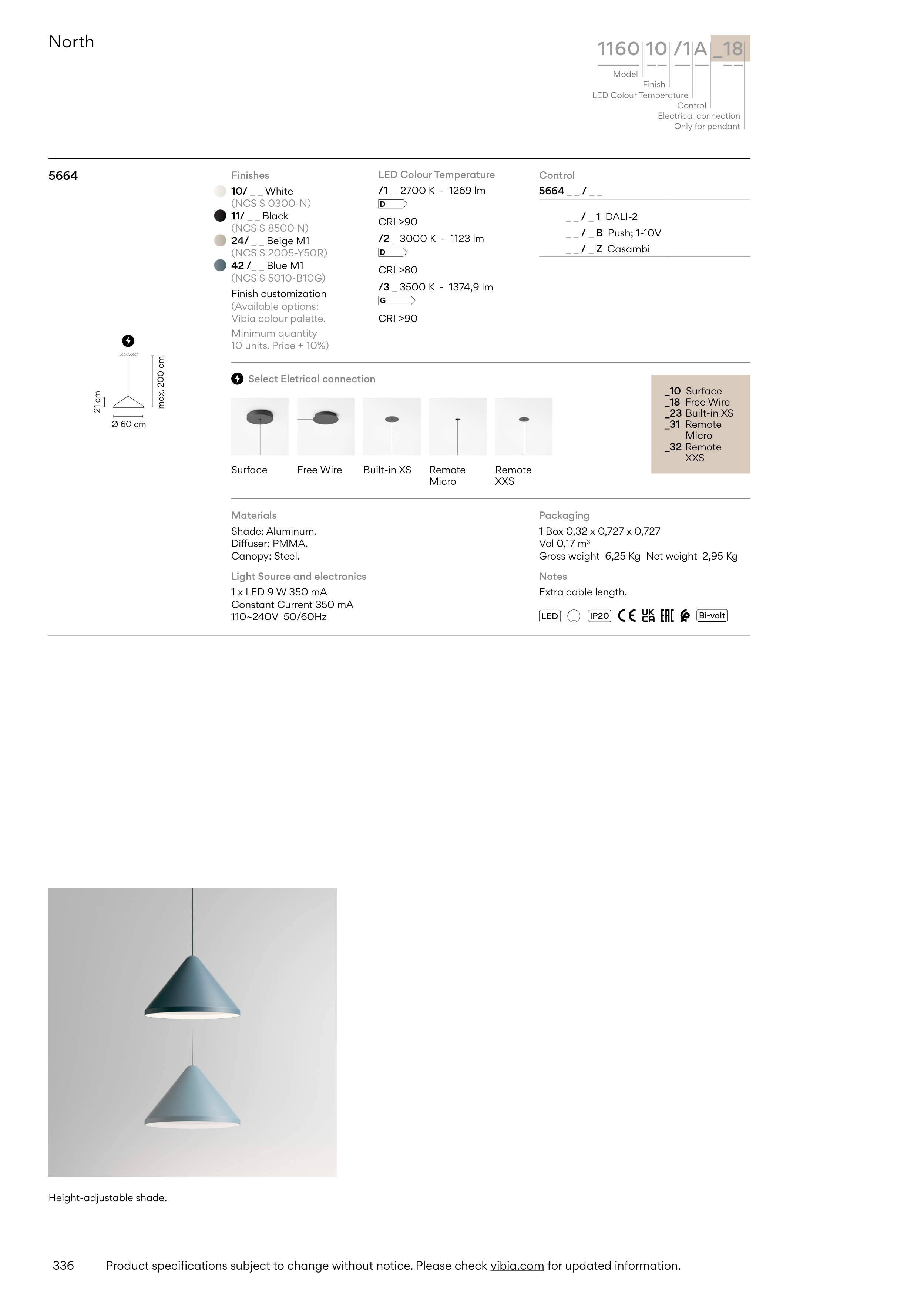

North
_10 Surface
_18 Free Wire
_23 Built-in XS
_31 Remote
Micro
_32 Remote
XXS
Select Eletrical connection
Ø 60 cm
21 cm
max. 200 cm
5664
Finishes
10/ _ _ White
(NCS S 0300-N)
11/ _ _ Black
(NCS S 8500 N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
42 /_ _ Blue M1
(NCS S 5010-B10G)
Finish customization
(Available options:
Vibia colour palette.
Minimum quantity
10 units. Price + 10%)
Control
Packaging
1 Box 0,32 x 0,727 x 0,727
Vol 0,17 m3
Gross weight 6,25 Kg Net weight 2,95 Kg
Notes
Extra cable length.
Materials
Shade: Aluminum.
Diffuser: PMMA.
Canopy: Steel.
Light Source and electronics
1 x LED 9 W 350 mA
Constant Current 350 mA
110~240V 50/60Hz
Bi-volt
LED
IP20
LED Colour Temperature
/1 _ 2700 K - 1269 lm
D
CRI >90
/2 _ 3000 K - 1123 lm
D
CRI >80
/3 _ 3500 K - 1374,9 lm
G
CRI >90
5664 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ B Push; 1-10V
_ _ / _ Z Casambi
Surface
Free Wire
Built-in XS
Remote
Micro
Remote
XXS
Finish
Electrical connection
LED Colour Temperature
Model
1160 10 /1 A _18
Control
Only for pendant
Height-adjustable shade.
