322
Product specifications subject to change without notice. Please check vibia.com for updated information.

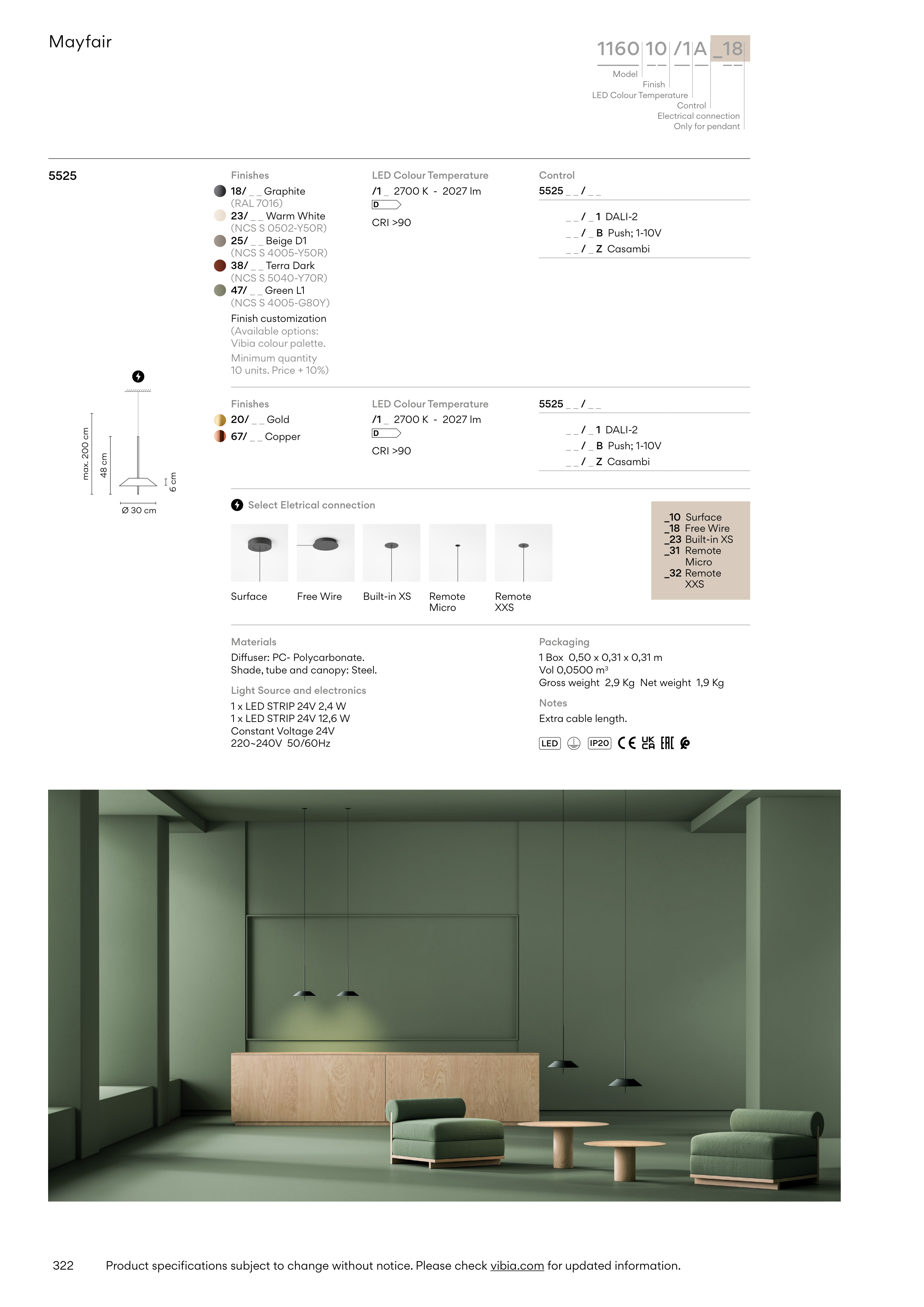

Mayfair
5525
Control
Packaging
1 Box 0,50 x 0,31 x 0,31 m
Vol 0,0500 m3
Gross weight 2,9 Kg Net weight 1,9 Kg
Materials
Diffuser: PC- Polycarbonate.
Shade, tube and canopy: Steel.
Light Source and electronics
1 x LED STRIP 24V 2,4 W
1 x LED STRIP 24V 12,6 W
Constant Voltage 24V
220~240V 50/60Hz
48 cm
max. 200 cm
6 cm
Ø 30 cm
Notes
Extra cable length.
Finishes
20/ _ _ Gold
67/ _ _ Copper
Finishes
18/ _ _ Graphite
(RAL 7016)
23/ _ _ Warm White
(NCS S 0502-Y50R)
25/ _ _ Beige D1
(NCS S 4005-Y50R)
38/ _ _ Terra Dark
(NCS S 5040-Y70R)
47/ _ _ Green L1
(NCS S 4005-G80Y)
Finish customization
(Available options:
Vibia colour palette.
Minimum quantity
10 units. Price + 10%)
LED
IP20
LED Colour Temperature
/1 _ 2700 K - 2027 lm
D
CRI >90
LED Colour Temperature
/1 _ 2700 K - 2027 lm
D
CRI >90
5525 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ B Push; 1-10V
_ _ / _ Z Casambi
_10 Surface
_18 Free Wire
_23 Built-in XS
_31 Remote
Micro
_32 Remote
XXS
Select Eletrical connection
Finish
Electrical connection
LED Colour Temperature
Model
1160 10 /1 A _18
Control
Only for pendant
Surface
Free Wire
Built-in XS
Remote
Micro
Remote
XXS
5525 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ B Push; 1-10V
_ _ / _ Z Casambi
