5481
Finishes
15/ _ _ Grey L2
(NCS S 2500-N)
28/ _ _ Brown M1
(NCS S 4020-Y60R)
72/ _ _ Black Grey
& Grey L2
(NCS S 7000-N,
NCS S 2500-N)
Control
Control
Packaging
1 Box 0,46 x 0,46 x 0,4 m
Vol 0,0846 m3
Gross weight 6,1 Kg Net weight 3,4 Kg
Materials
Diffuser: PC- Polycarbonate.
Shade: ABS.
Wall support: Aluminum.
Light Source and electronics
1 x LED STRIP 8,4 W 700 mA
1 x LED STRIP 12,6 W 700 mA
Constant Current 700 mA
/ _ 1 110~240V 50/60Hz Bi-volt
/ _ 3 110~240V 50/60Hz Bi-volt
/ _ 5 110~240V 50/60Hz Bi-volt
/ _ 4 220~240V 50/60Hz
/ _ Z 220~240V 50/60Hz
9 cm
6 cm
69 cm
Ø 45 cm
Ø 40 cm
69 cm
Finishes
71/ _ _ Grey Felt L1
& Grey Felt D1
76/ _ _ Grey Felt L1
LED
Bi-volt
IP20
LED Colour Temperature
/1 _ 2700 K - 2871 lm
/3 _ 3500 K - 3067 lm
E
CRI >90
LED Colour Temperature
/1 _ 2700 K - 2871 lm
/3 _ 3500 K - 3067 lm
E
CRI >90
5481 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ 3 1-10V
_ _ / _ 4 Triac
_ _ / _ 5 Push
_ _ / _ Z Casambi
5481 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ 3 1-10V
_ _ / _ 4 Triac
_ _ / _ 5 Push
_ _ / _ Z Casambi
312
Product specifications subject to change without notice. Please check vibia.com for updated information.

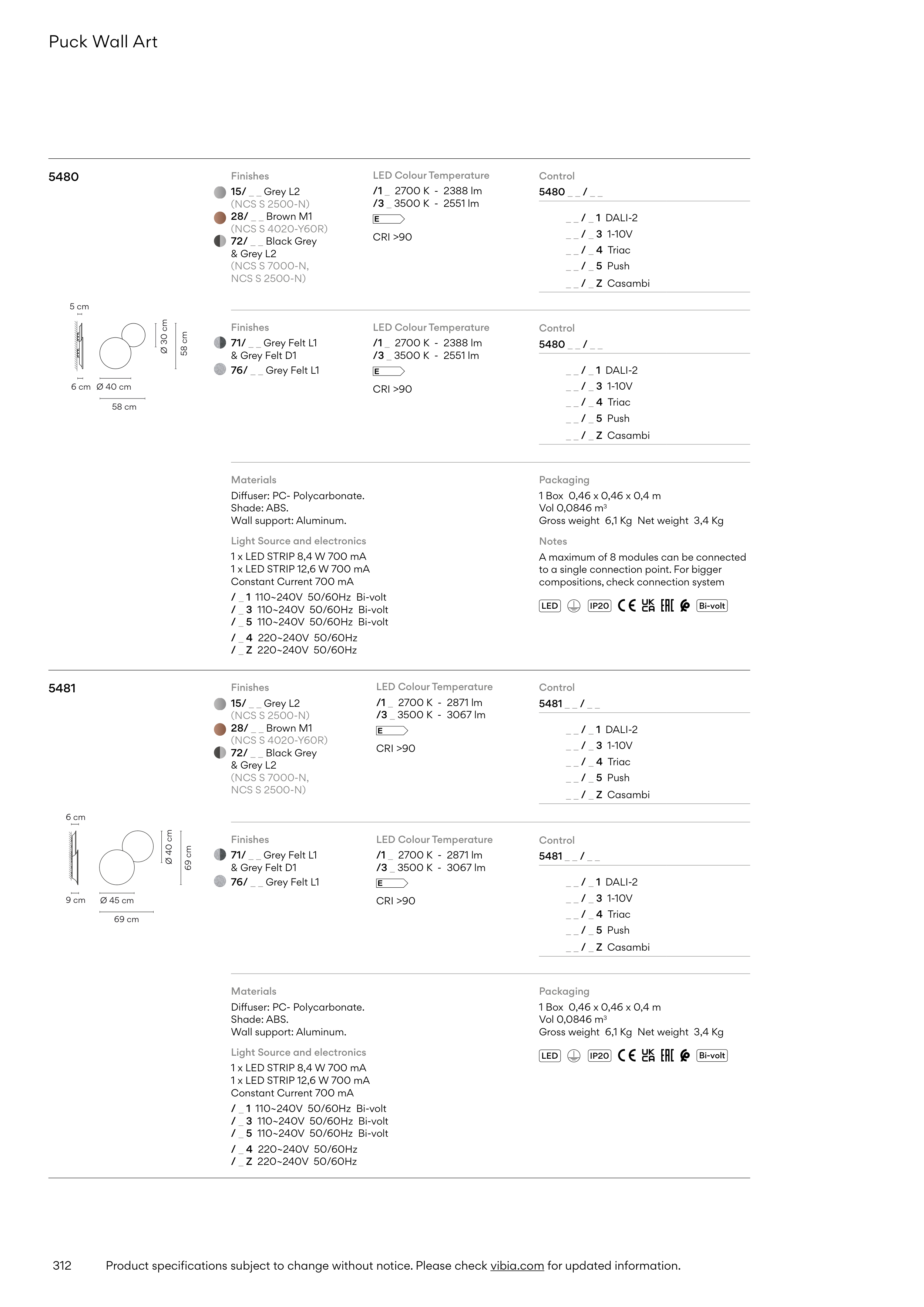

Puck Wall Art
5480
Finishes
15/ _ _ Grey L2
(NCS S 2500-N)
28/ _ _ Brown M1
(NCS S 4020-Y60R)
72/ _ _ Black Grey
& Grey L2
(NCS S 7000-N,
NCS S 2500-N)
Control
Control
Packaging
1 Box 0,46 x 0,46 x 0,4 m
Vol 0,0846 m3
Gross weight 6,1 Kg Net weight 3,4 Kg
Notes
A maximum of 8 modules can be connected
to a single connection point. For bigger
compositions, check connection system
Materials
Diffuser: PC- Polycarbonate.
Shade: ABS.
Wall support: Aluminum.
Light Source and electronics
1 x LED STRIP 8,4 W 700 mA
1 x LED STRIP 12,6 W 700 mA
Constant Current 700 mA
/ _ 1 110~240V 50/60Hz Bi-volt
/ _ 3 110~240V 50/60Hz Bi-volt
/ _ 5 110~240V 50/60Hz Bi-volt
/ _ 4 220~240V 50/60Hz
/ _ Z 220~240V 50/60Hz
Ø 40 cm
5 cm
Ø 30 cm
6 cm
58 cm
58 cm
Finishes
71/ _ _ Grey Felt L1
& Grey Felt D1
76/ _ _ Grey Felt L1
LED
Bi-volt
IP20
LED Colour Temperature
/1 _ 2700 K - 2388 lm
/3 _ 3500 K - 2551 lm
E
CRI >90
LED Colour Temperature
/1 _ 2700 K - 2388 lm
/3 _ 3500 K - 2551 lm
E
CRI >90
5480 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ 3 1-10V
_ _ / _ 4 Triac
_ _ / _ 5 Push
_ _ / _ Z Casambi
5480 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ 3 1-10V
_ _ / _ 4 Triac
_ _ / _ 5 Push
_ _ / _ Z Casambi
