Surface
Built-in XS
30
Product specifications subject to change without notice. Please check vibia.com for updated information.

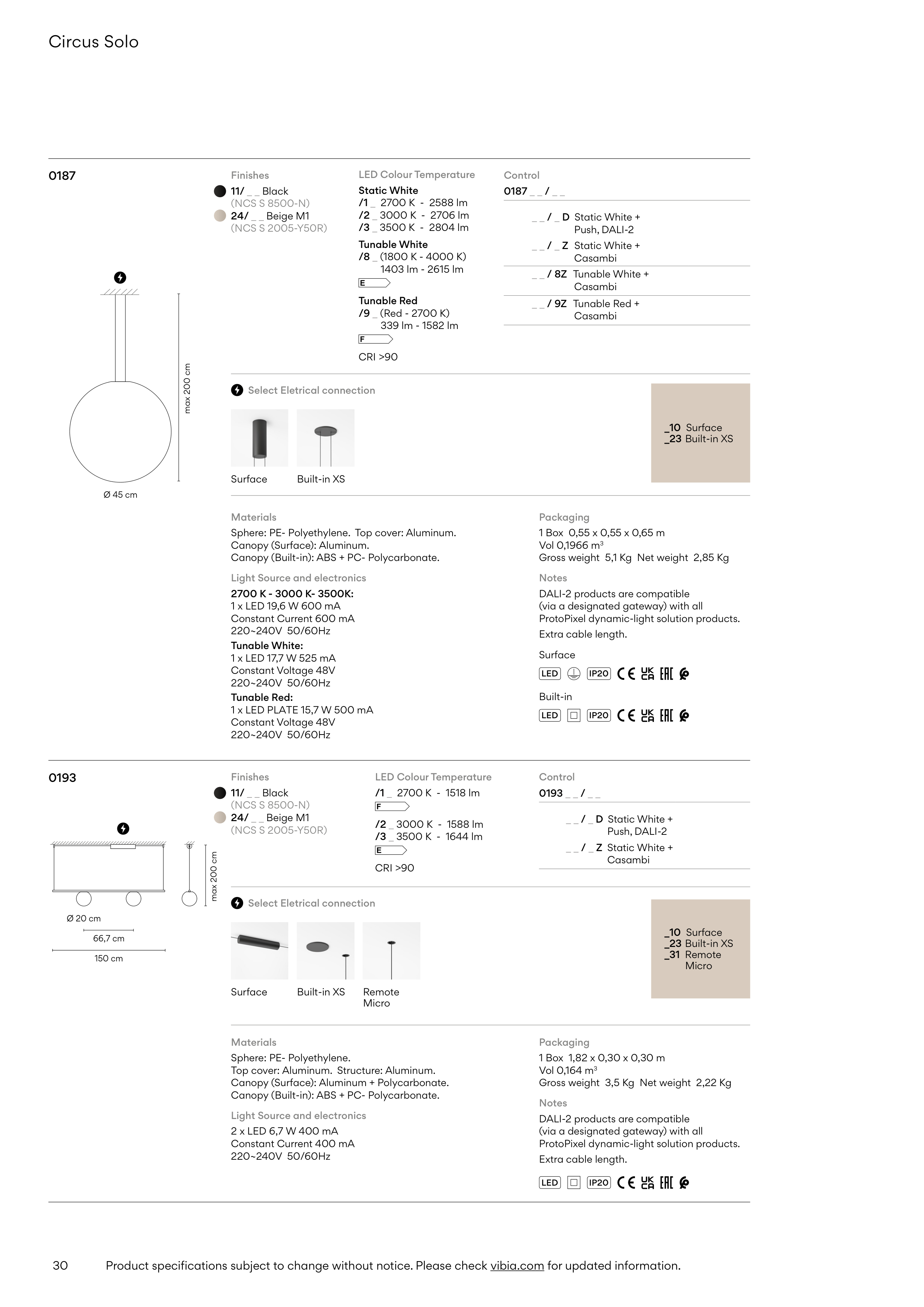

Circus Solo
Ø 45 cm
max 200 cm
0187
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
Control
Packaging
1 Box 0,55 x 0,55 x 0,65 m
Vol 0,1966 m3
Gross weight 5,1 Kg Net weight 2,85 Kg
Materials
Sphere: PE- Polyethylene. Top cover: Aluminum.
Canopy (Surface): Aluminum.
Canopy (Built-in): ABS + PC- Polycarbonate.
Light Source and electronics
2700 K - 3000 K- 3500K:
1 x LED 19,6 W 600 mA
Constant Current 600 mA
220~240V 50/60Hz
Tunable White:
1 x LED 17,7 W 525 mA
Constant Voltage 48V
220~240V 50/60Hz
Tunable Red:
1 x LED PLATE 15,7 W 500 mA
Constant Voltage 48V
220~240V 50/60Hz
Surface
Built-in
_10 Surface
_23 Built-in XS
Select Eletrical connection
LED Colour Temperature
Static White
/1 _ 2700 K - 2588 lm
/2 _ 3000 K - 2706 lm
/3 _ 3500 K - 2804 lm
Tunable White
/8 _ (1800 K - 4000 K)
1403 lm - 2615 lm
E
Tunable Red
/9 _ (Red - 2700 K)
339 lm - 1582 lm
F
CRI >90
0187 _ _ / _ _
_ _ / _ D Static White +
Push, DALI-2
_ _ / _ Z Static White +
Casambi
_ _ / 8Z Tunable White +
Casambi
_ _ / 9Z Tunable Red +
Casambi
0193
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
Control
Packaging
1 Box 1,82 x 0,30 x 0,30 m
Vol 0,164 m3
Gross weight 3,5 Kg Net weight 2,22 Kg
Materials
Sphere: PE- Polyethylene.
Top cover: Aluminum. Structure: Aluminum.
Canopy (Surface): Aluminum + Polycarbonate.
Canopy (Built-in): ABS + PC- Polycarbonate.
Light Source and electronics
2 x LED 6,7 W 400 mA
Constant Current 400 mA
220~240V 50/60Hz
66,7 cm
Ø 20 cm
max 200 cm
150 cm
LED Colour Temperature
/1 _ 2700 K - 1518 lm
F
/2 _ 3000 K - 1588 lm
/3 _ 3500 K - 1644 lm
E
CRI >90
0193 _ _ / _ _
_ _ / _ D Static White +
Push, DALI-2
_ _ / _ Z Static White +
Casambi
_10 Surface
_23 Built-in XS
_31 Remote
Micro
Select Eletrical connection
IP20
LED
IP20
LED
IP20
LED
Notes
DALI-2 products are compatible
(via a designated gateway) with all
ProtoPixel dynamic-light solution products.
Extra cable length.
Notes
DALI-2 products are compatible
(via a designated gateway) with all
ProtoPixel dynamic-light solution products.
Extra cable length.
Surface
Built-in XS
Remote
Micro
