276
Product specifications subject to change without notice. Please check vibia.com for updated information.

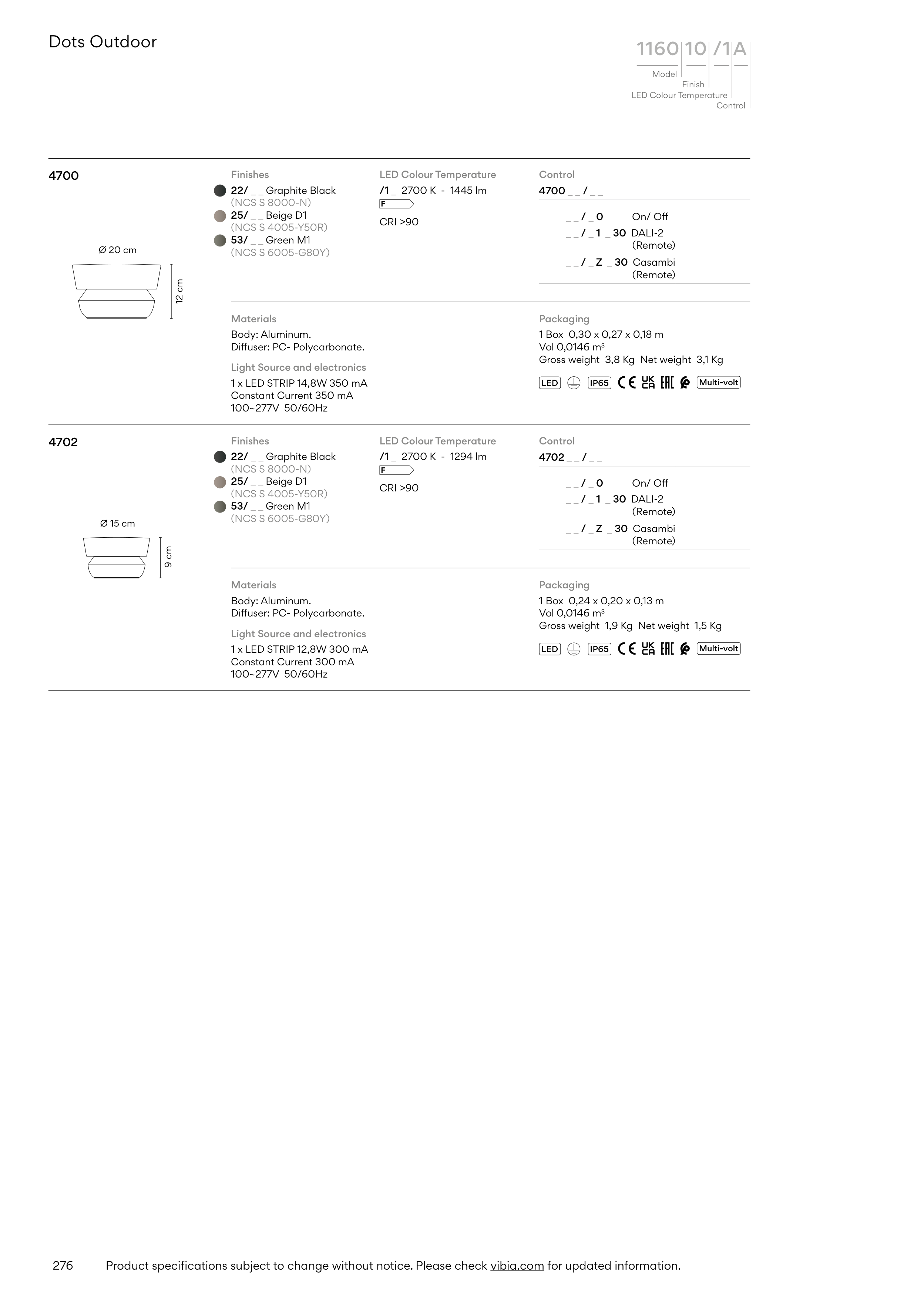

Dots Outdoor
4700
Control
Packaging
1 Box 0,30 x 0,27 x 0,18 m
Vol 0,0146 m3
Gross weight 3,8 Kg Net weight 3,1 Kg
Materials
Body: Aluminum.
Diffuser: PC- Polycarbonate.
Light Source and electronics
1 x LED STRIP 14,8W 350 mA
Constant Current 350 mA
100~277V 50/60Hz
Ø 20 cm
12 cm
4702
Control
Packaging
1 Box 0,24 x 0,20 x 0,13 m
Vol 0,0146 m3
Gross weight 1,9 Kg Net weight 1,5 Kg
Materials
Body: Aluminum.
Diffuser: PC- Polycarbonate.
Light Source and electronics
1 x LED STRIP 12,8W 300 mA
Constant Current 300 mA
100~277V 50/60Hz
Ø 15 cm
9 cm
Finishes
22/ _ _ Graphite Black
(NCS S 8000-N)
25/ _ _ Beige D1
(NCS S 4005-Y50R)
53/ _ _ Green M1
(NCS S 6005-G80Y)
Finishes
22/ _ _ Graphite Black
(NCS S 8000-N)
25/ _ _ Beige D1
(NCS S 4005-Y50R)
53/ _ _ Green M1
(NCS S 6005-G80Y)
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control
Multi-volt
LED
IP65
Multi-volt
LED
IP65
LED Colour Temperature
/1 _ 2700 K - 1445 lm
F
CRI >90
LED Colour Temperature
/1 _ 2700 K - 1294 lm
F
CRI >90
4700 _ _ / _ _
_ _ / _ 0
On/ Off
_ _ / _ 1 _ 30 DALI-2
(Remote)
_ _ / _ Z _ 30 Casambi
(Remote)
4702 _ _ / _ _
_ _ / _ 0
On/ Off
_ _ / _ 1 _ 30 DALI-2
(Remote)
_ _ / _ Z _ 30 Casambi
(Remote)
