274
Product specifications subject to change without notice. Please check vibia.com for updated information.
Diminutive, compact and easily installed, Dots Outdoor
is the perfect solution for subtle outdoor illumination.
Designed to nestle discreetly into the undergrowth
of a garden or patio, Dots shines at night with a diffuse
or focused glow from an invisible source.
Design by Martín Azúa

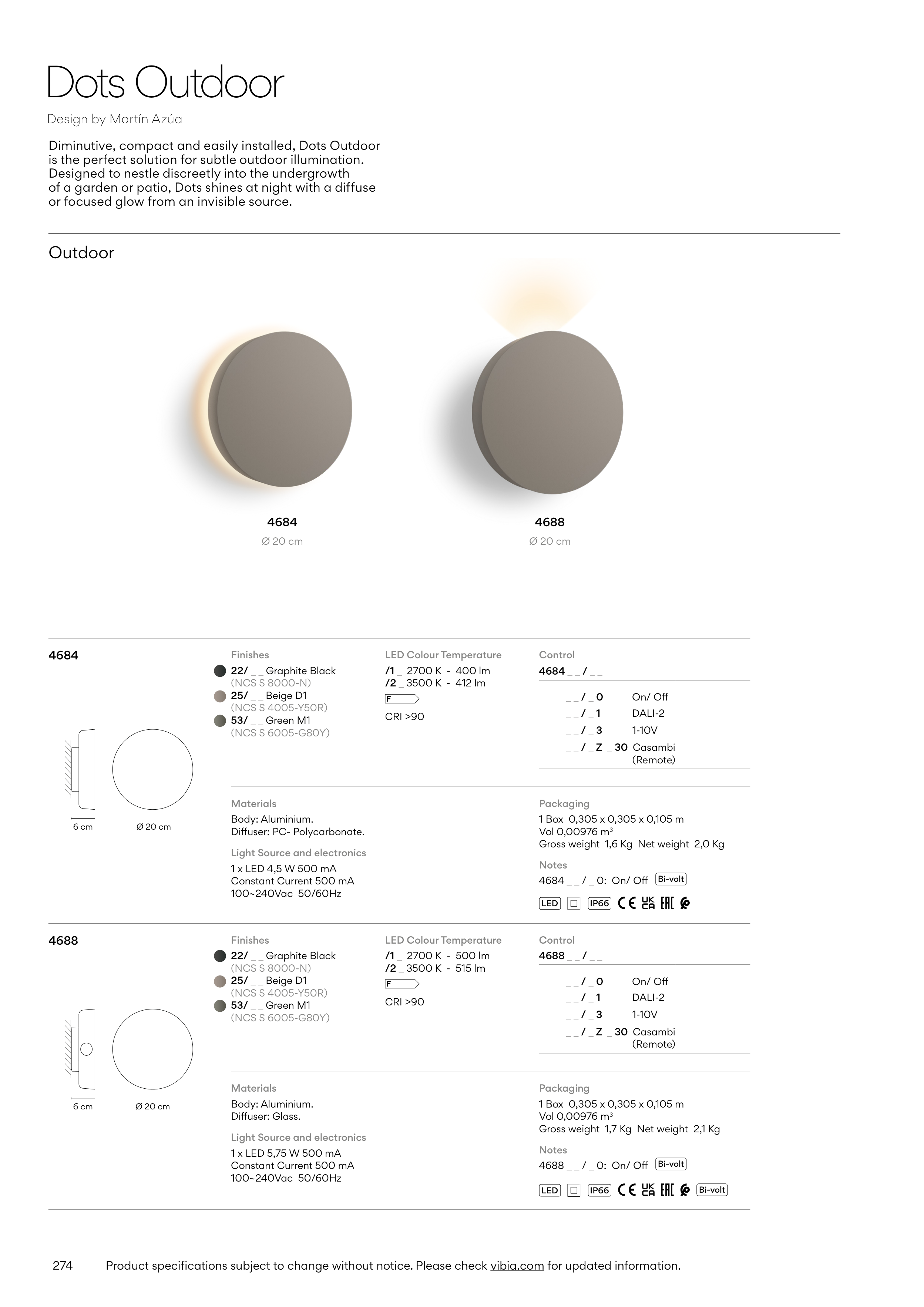

Dots Outdoor
4688
Ø 20 cm
Ø 20 cm
4684
Outdoor
4688 _ _ / _ _
_ _ / _ 0
On/ Off
_ _ / _ 1
DALI-2
_ _ / _ 3
1-10V
_ _ / _ Z _ 30 Casambi
(Remote)
Notes
4688 _ _ / _ 0: On/ Off
4684
Control
Packaging
1 Box 0,305 x 0,305 x 0,105 m
Vol 0,00976 m3
Gross weight 1,6 Kg Net weight 2,0 Kg
Materials
Body: Aluminium.
Diffuser: PC- Polycarbonate.
Light Source and electronics
1 x LED 4,5 W 500 mA
Constant Current 500 mA
100~240Vac 50/60Hz
6 cm
Ø 20 cm
Finishes
22/ _ _ Graphite Black
(NCS S 8000-N)
25/ _ _ Beige D1
(NCS S 4005-Y50R)
53/ _ _ Green M1
(NCS S 6005-G80Y)
Finishes
22/ _ _ Graphite Black
(NCS S 8000-N)
25/ _ _ Beige D1
(NCS S 4005-Y50R)
53/ _ _ Green M1
(NCS S 6005-G80Y)
4688
Control
Packaging
1 Box 0,305 x 0,305 x 0,105 m
Vol 0,00976 m3
Gross weight 1,7 Kg Net weight 2,1 Kg
Materials
Body: Aluminium.
Diffuser: Glass.
Light Source and electronics
1 x LED 5,75 W 500 mA
Constant Current 500 mA
100~240Vac 50/60Hz
6 cm
Ø 20 cm
Notes
4684 _ _ / _ 0: On/ Off Bi-volt
Bi-volt
LED
IP66
Bi-volt
LED
IP66
LED Colour Temperature
/1 _ 2700 K - 400 lm
/2 _ 3500 K - 412 lm
F
CRI >90
LED Colour Temperature
/1 _ 2700 K - 500 lm
/2 _ 3500 K - 515 lm
F
CRI >90
4684 _ _ / _ _
_ _ / _ 0
On/ Off
_ _ / _ 1
DALI-2
_ _ / _ 3
1-10V
_ _ / _ Z _ 30 Casambi
(Remote)
