272
Product specifications subject to change without notice. Please check vibia.com for updated information.
Sheathed in layers of transparent optical glass, the LED
source within the fixture generates a warm, 360-degree
glow, while the layering of the glass and aluminum at the
edge of each disc creates a pulsating ambient effect.
Design by Martín Azúa

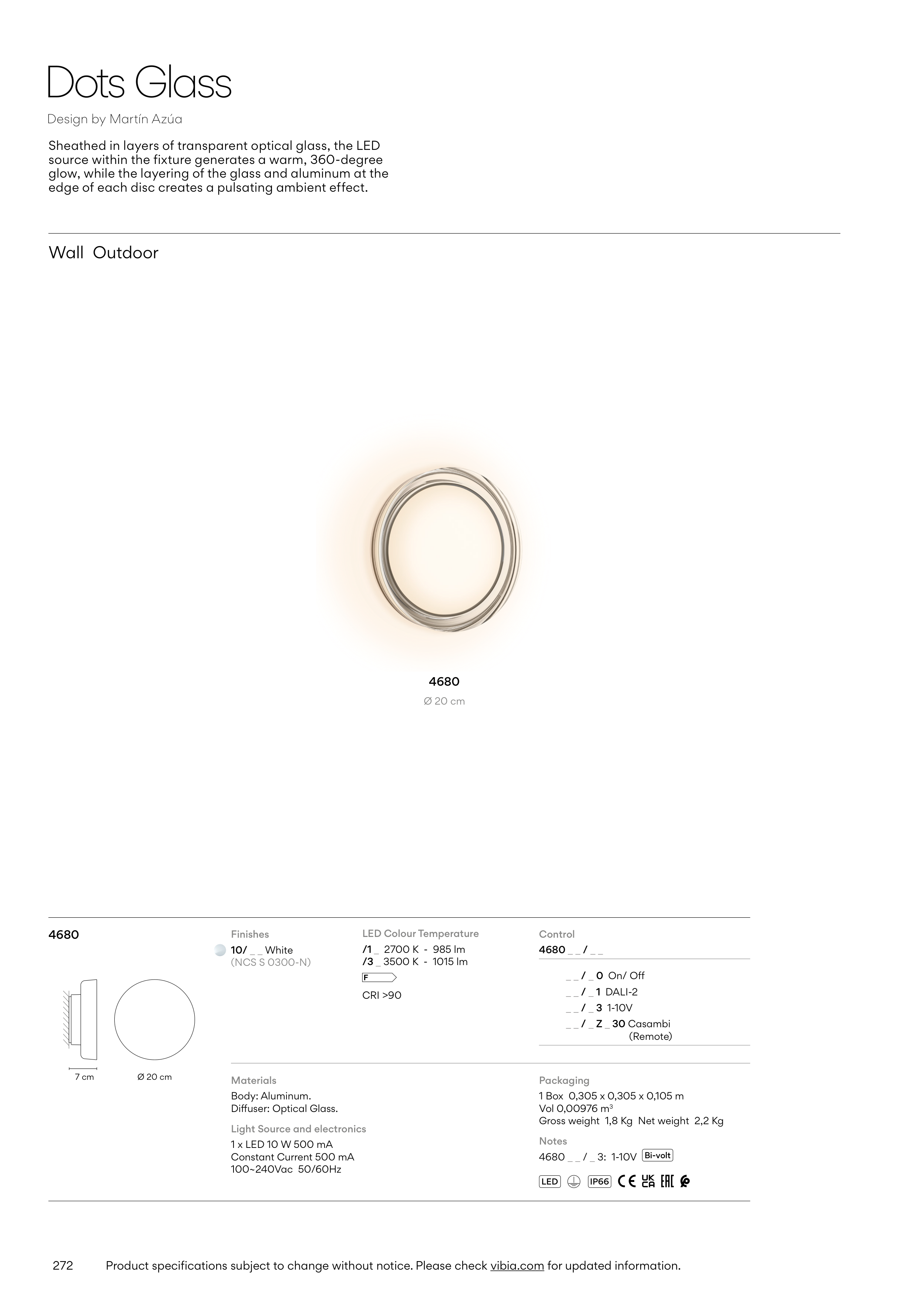

Dots Glass
Wall Outdoor
4680
Finishes
10/ _ _ White
(NCS S 0300-N)
Control
Packaging
1 Box 0,305 x 0,305 x 0,105 m
Vol 0,00976 m3
Gross weight 1,8 Kg Net weight 2,2 Kg
Materials
Body: Aluminum.
Diffuser: Optical Glass.
Light Source and electronics
1 x LED 10 W 500 mA
Constant Current 500 mA
100~240Vac 50/60Hz
7 cm
Ø 20 cm
Ø 20 cm
4680
Notes
4680 _ _ / _ 3: 1-10V Bi-volt
LED
IP66
LED Colour Temperature
/1 _ 2700 K - 985 lm
/3 _ 3500 K - 1015 lm
F
CRI >90
4680 _ _ / _ _
_ _ / _ 0 On/ Off
_ _ / _ 1 DALI-2
_ _ / _ 3 1-10V
_ _ / _ Z _ 30 Casambi
(Remote)
