264
Product specifications subject to change without notice. Please check vibia.com for updated information.
Palo Alto is defined by a linear, angular silhouette.
Industrial in style yet natural in form, it recalls a tree whose
steel “branches” are embedded with LEDs, illuminating the
surrounding landscape with a diffuse downlight.
Design by Xuclà

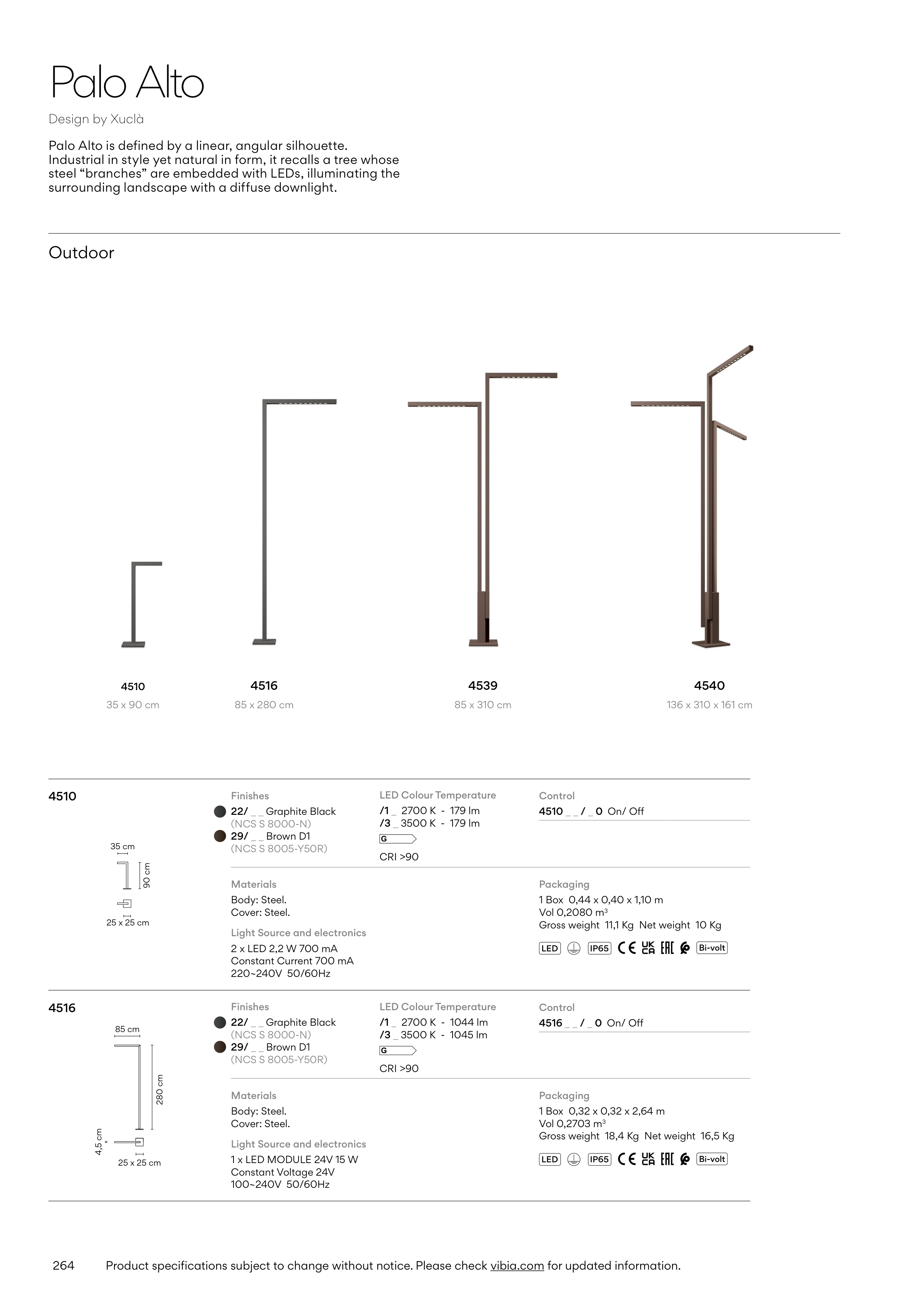

Palo Alto
4510
Control
Packaging
1 Box 0,44 x 0,40 x 1,10 m
Vol 0,2080 m3
Gross weight 11,1 Kg Net weight 10 Kg
Materials
Body: Steel.
Cover: Steel.
Light Source and electronics
2 x LED 2,2 W 700 mA
Constant Current 700 mA
220~240V 50/60Hz
35 cm
90 cm
25 x 25 cm
Finishes
22/ _ _ Graphite Black
(NCS S 8000-N)
29/ _ _ Brown D1
(NCS S 8005-Y50R)
Finishes
22/ _ _ Graphite Black
(NCS S 8000-N)
29/ _ _ Brown D1
(NCS S 8005-Y50R)
4516
Control
Packaging
1 Box 0,32 x 0,32 x 2,64 m
Vol 0,2703 m3
Gross weight 18,4 Kg Net weight 16,5 Kg
Materials
Body: Steel.
Cover: Steel.
Light Source and electronics
1 x LED MODULE 24V 15 W
Constant Voltage 24V
100~240V 50/60Hz
85 cm
25 x 25 cm
280 cm
4,5 cm
Outdoor
4516
4510
4539
4540
35 x 90 cm
85 x 280 cm
85 x 310 cm
136 x 310 x 161 cm
Bi-volt
LED
IP65
Bi-volt
LED
IP65
LED Colour Temperature
/1 _ 2700 K - 179 lm
/3 _ 3500 K - 179 lm
G
CRI >90
LED Colour Temperature
/1 _ 2700 K - 1044 lm
/3 _ 3500 K - 1045 lm
G
CRI >90
4510 _ _ / _ 0 On/ Off
4516 _ _ / _ 0 On/ Off
