258
Product specifications subject to change without notice. Please check vibia.com for updated information.

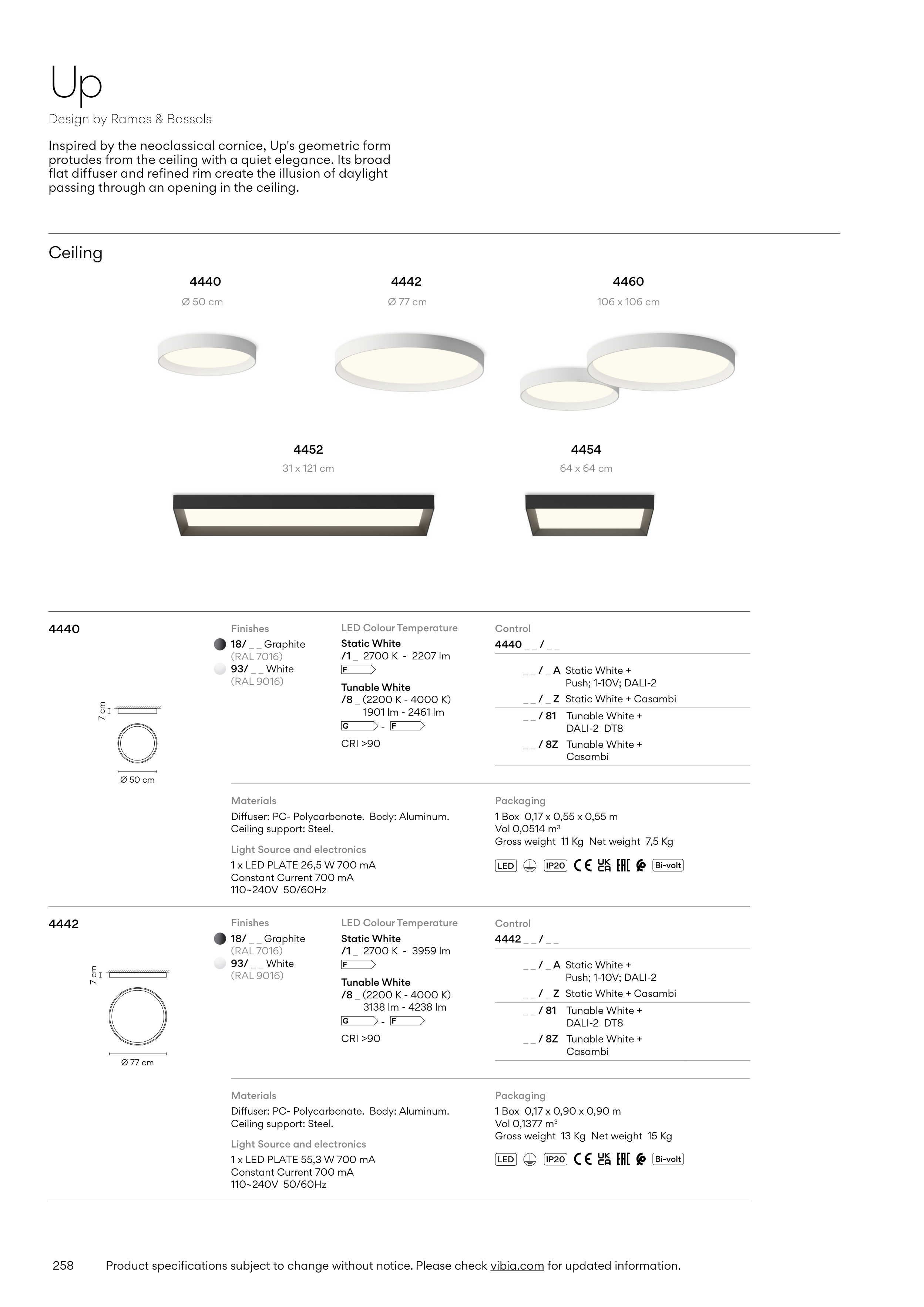

Inspired by the neoclassical cornice, Up's geometric form
protudes from the ceiling with a quiet elegance. Its broad
flat diffuser and refined rim create the illusion of daylight
passing through an opening in the ceiling.
Design by Ramos & Bassols
Up
4442
Control
Packaging
1 Box 0,17 x 0,90 x 0,90 m
Vol 0,1377 m3
Gross weight 13 Kg Net weight 15 Kg
Materials
Diffuser: PC- Polycarbonate. Body: Aluminum.
Ceiling support: Steel.
Light Source and electronics
1 x LED PLATE 55,3 W 700 mA
Constant Current 700 mA
110~240V 50/60Hz
Ø 77 cm
7 cm
Finishes
18/ _ _ Graphite
(RAL 7016)
93/ _ _ White
(RAL 9016)
Finishes
18/ _ _ Graphite
(RAL 7016)
93/ _ _ White
(RAL 9016)
4440
Control
Packaging
1 Box 0,17 x 0,55 x 0,55 m
Vol 0,0514 m3
Gross weight 11 Kg Net weight 7,5 Kg
Materials
Diffuser: PC- Polycarbonate. Body: Aluminum.
Ceiling support: Steel.
Light Source and electronics
1 x LED PLATE 26,5 W 700 mA
Constant Current 700 mA
110~240V 50/60Hz
Ø 50 cm
7 cm
Ceiling
4440
4442
4452
4454
4460
Ø 50 cm
Ø 77 cm
31 x 121 cm
64 x 64 cm
106 x 106 cm
Bi-volt
LED
IP20
Bi-volt
LED
IP20
LED Colour Temperature
Static White
/1 _ 2700 K - 2207 lm
F
Tunable White
/8 _ (2200 K - 4000 K)
1901 lm - 2461 lm
G
- F
CRI >90
LED Colour Temperature
Static White
/1 _ 2700 K - 3959 lm
F
Tunable White
/8 _ (2200 K - 4000 K)
3138 lm - 4238 lm
G
- F
CRI >90
4440 _ _ / _ _
_ _ / _ A Static White +
Push; 1-10V; DALI-2
_ _ / _ Z Static White + Casambi
_ _ / 81
Tunable White +
DALI-2 DT8
_ _ / 8Z Tunable White +
Casambi
4442 _ _ / _ _
_ _ / _ A Static White +
Push; 1-10V; DALI-2
_ _ / _ Z Static White + Casambi
_ _ / 81
Tunable White +
DALI-2 DT8
_ _ / 8Z Tunable White +
Casambi
