238
Product specifications subject to change without notice. Please check vibia.com for updated information.

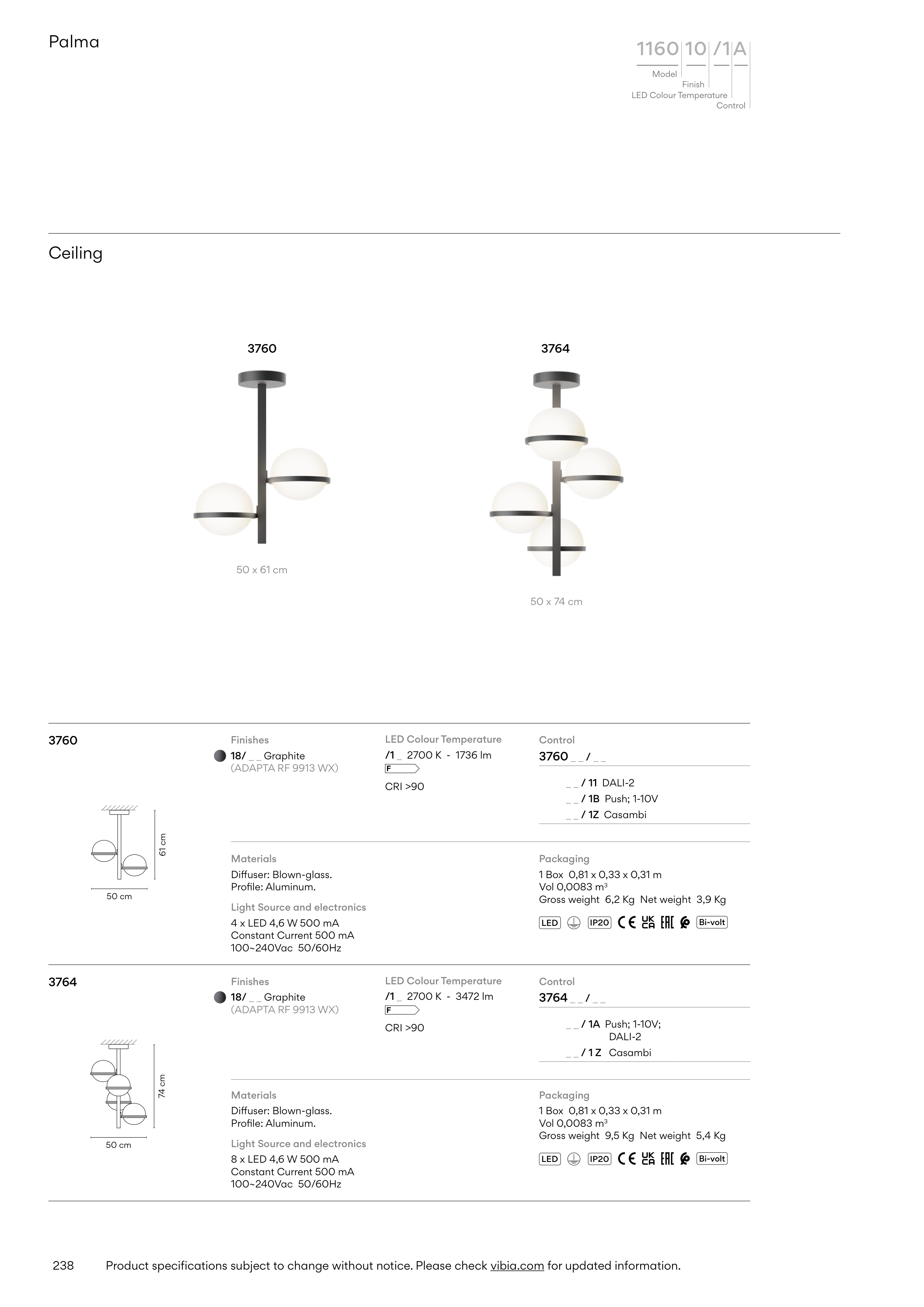

Palma
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control
Ceiling
3760
Finishes
18/ _ _ Graphite
(ADAPTA RF 9913 WX)
Control
3764
Finishes
18/ _ _ Graphite
(ADAPTA RF 9913 WX)
Control
Packaging
1 Box 0,81 x 0,33 x 0,31 m
Vol 0,0083 m3
Gross weight 9,5 Kg Net weight 5,4 Kg
Materials
Diffuser: Blown-glass.
Profile: Aluminum.
Light Source and electronics
8 x LED 4,6 W 500 mA
Constant Current 500 mA
100~240Vac 50/60Hz
74 cm
50 cm
Packaging
1 Box 0,81 x 0,33 x 0,31 m
Vol 0,0083 m3
Gross weight 6,2 Kg Net weight 3,9 Kg
Materials
Diffuser: Blown-glass.
Profile: Aluminum.
Light Source and electronics
4 x LED 4,6 W 500 mA
Constant Current 500 mA
100~240Vac 50/60Hz
61 cm
50 cm
3760
3764
50 x 61 cm
50 x 74 cm
Bi-volt
LED
IP20
Bi-volt
LED
IP20
LED Colour Temperature
/1 _ 2700 K - 1736 lm
F
CRI >90
LED Colour Temperature
/1 _ 2700 K - 3472 lm
F
CRI >90
3760 _ _ / _ _
_ _ / 11 DALI-2
_ _ / 1B Push; 1-10V
_ _ / 1Z Casambi
3764 _ _ / _ _
_ _ / 1A Push; 1-10V;
DALI-2
_ _ / 1 Z Casambi
