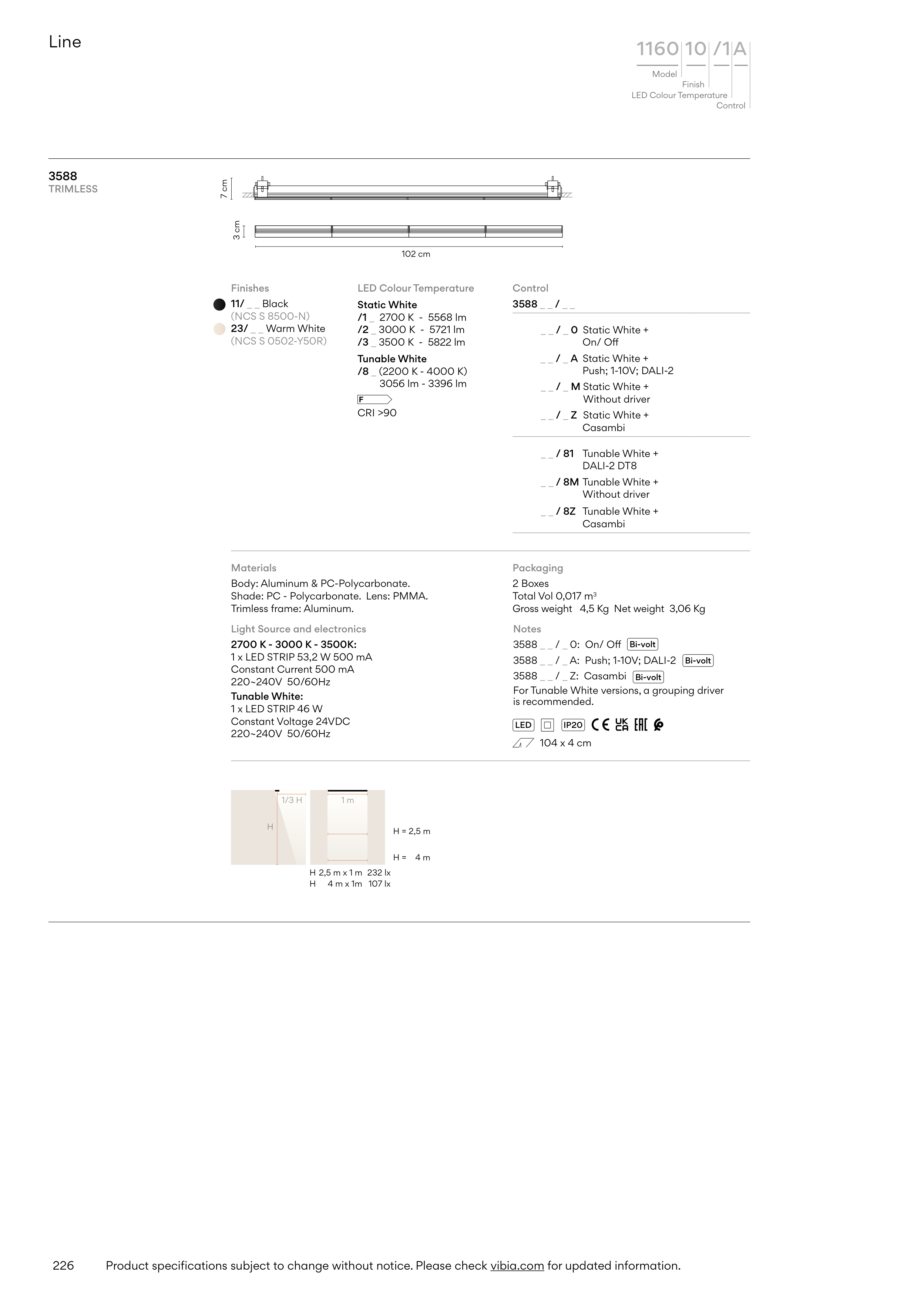

Line
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control
102 cm
3 cm
7 cm
3588
TRIMLESS
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
Control
LED Colour Temperature
Static White
/1 _ 2700 K - 5568 lm
/2 _ 3000 K - 5721 lm
/3 _ 3500 K - 5822 lm
Tunable White
/8 _ (2200 K - 4000 K)
3056 lm - 3396 lm
F
CRI >90
Packaging
2 Boxes
Total Vol 0,017 m3
Gross weight 4,5 Kg Net weight 3,06 Kg
Materials
Body: Aluminum & PC-Polycarbonate.
Shade: PC - Polycarbonate. Lens: PMMA.
Trimless frame: Aluminum.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED STRIP 53,2 W 500 mA
Constant Current 500 mA
220~240V 50/60Hz
Tunable White:
1 x LED STRIP 46 W
Constant Voltage 24VDC
220~240V 50/60Hz
LED
IP20
H
1/3 H
1 m
H 2,5 m x 1 m 232 lx
H
4 m x 1m 107 lx
H = 2,5 m
H =
4 m
104 x 4 cm
Notes
3588 _ _ / _ 0: On/ Off
3588 _ _ / _ A: Push; 1-10V; DALI-2
3588 _ _ / _ Z: Casambi
For Tunable White versions, a grouping driver
is recommended.
Bi-volt
Bi-volt
Bi-volt
3588 _ _ / _ _
_ _ / _ 0 Static White +
On/ Off
_ _ / _ A Static White +
Push; 1-10V; DALI-2
_ _ / _ M Static White +
Without driver
_ _ / _ Z Static White +
Casambi
_ _ / 81 Tunable White +
DALI-2 DT8
_ _ / 8M Tunable White +
Without driver
_ _ / 8Z Tunable White +
Casambi
