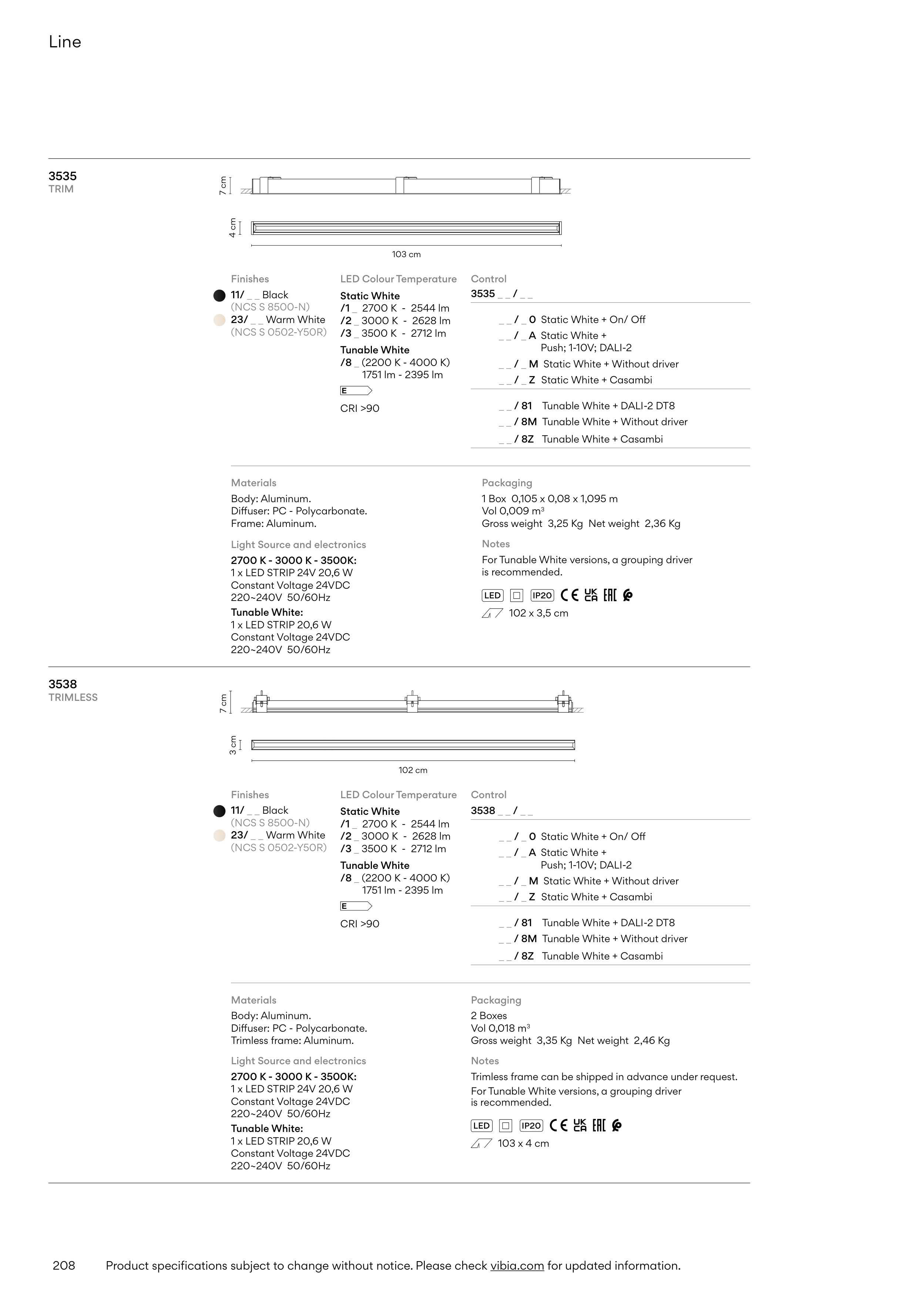

Line
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
Control
Packaging
1 Box 0,105 x 0,08 x 1,095 m
Vol 0,009 m3
Gross weight 3,25 Kg Net weight 2,36 Kg
Materials
Body: Aluminum.
Diffuser: PC - Polycarbonate.
Frame: Aluminum.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED STRIP 24V 20,6 W
Constant Voltage 24VDC
220~240V 50/60Hz
Tunable White:
1 x LED STRIP 20,6 W
Constant Voltage 24VDC
220~240V 50/60Hz
3535
TRIM
103 cm
4 cm
7 cm
LED Colour Temperature
Static White
/1 _ 2700 K - 2544 lm
/2 _ 3000 K - 2628 lm
/3 _ 3500 K - 2712 lm
Tunable White
/8 _ (2200 K - 4000 K)
1751 lm - 2395 lm
E
CRI >90
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
Control
Materials
Body: Aluminum.
Diffuser: PC - Polycarbonate.
Trimless frame: Aluminum.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED STRIP 24V 20,6 W
Constant Voltage 24VDC
220~240V 50/60Hz
Tunable White:
1 x LED STRIP 20,6 W
Constant Voltage 24VDC
220~240V 50/60Hz
3538
TRIMLESS
102 cm
3 cm
7 cm
LED Colour Temperature
Static White
/1 _ 2700 K - 2544 lm
/2 _ 3000 K - 2628 lm
/3 _ 3500 K - 2712 lm
Tunable White
/8 _ (2200 K - 4000 K)
1751 lm - 2395 lm
E
CRI >90
LED
IP20
102 x 3,5 cm
Packaging
2 Boxes
Vol 0,018 m3
Gross weight 3,35 Kg Net weight 2,46 Kg
LED
IP20
103 x 4 cm
Notes
Trimless frame can be shipped in advance under request.
For Tunable White versions, a grouping driver
is recommended.
3535 _ _ / _ _
_ _ / _ 0 Static White + On/ Off
_ _ / _ A Static White +
Push; 1-10V; DALI-2
_ _ / _ M Static White + Without driver
_ _ / _ Z Static White + Casambi
_ _ / 81
Tunable White + DALI-2 DT8
_ _ / 8M Tunable White + Without driver
_ _ / 8Z Tunable White + Casambi
3538 _ _ / _ _
_ _ / _ 0 Static White + On/ Off
_ _ / _ A Static White +
Push; 1-10V; DALI-2
_ _ / _ M Static White + Without driver
_ _ / _ Z Static White + Casambi
_ _ / 81
Tunable White + DALI-2 DT8
_ _ / 8M Tunable White + Without driver
_ _ / 8Z Tunable White + Casambi
Notes
For Tunable White versions, a grouping driver
is recommended.
