204
Product specifications subject to change without notice. Please check vibia.com for updated information.

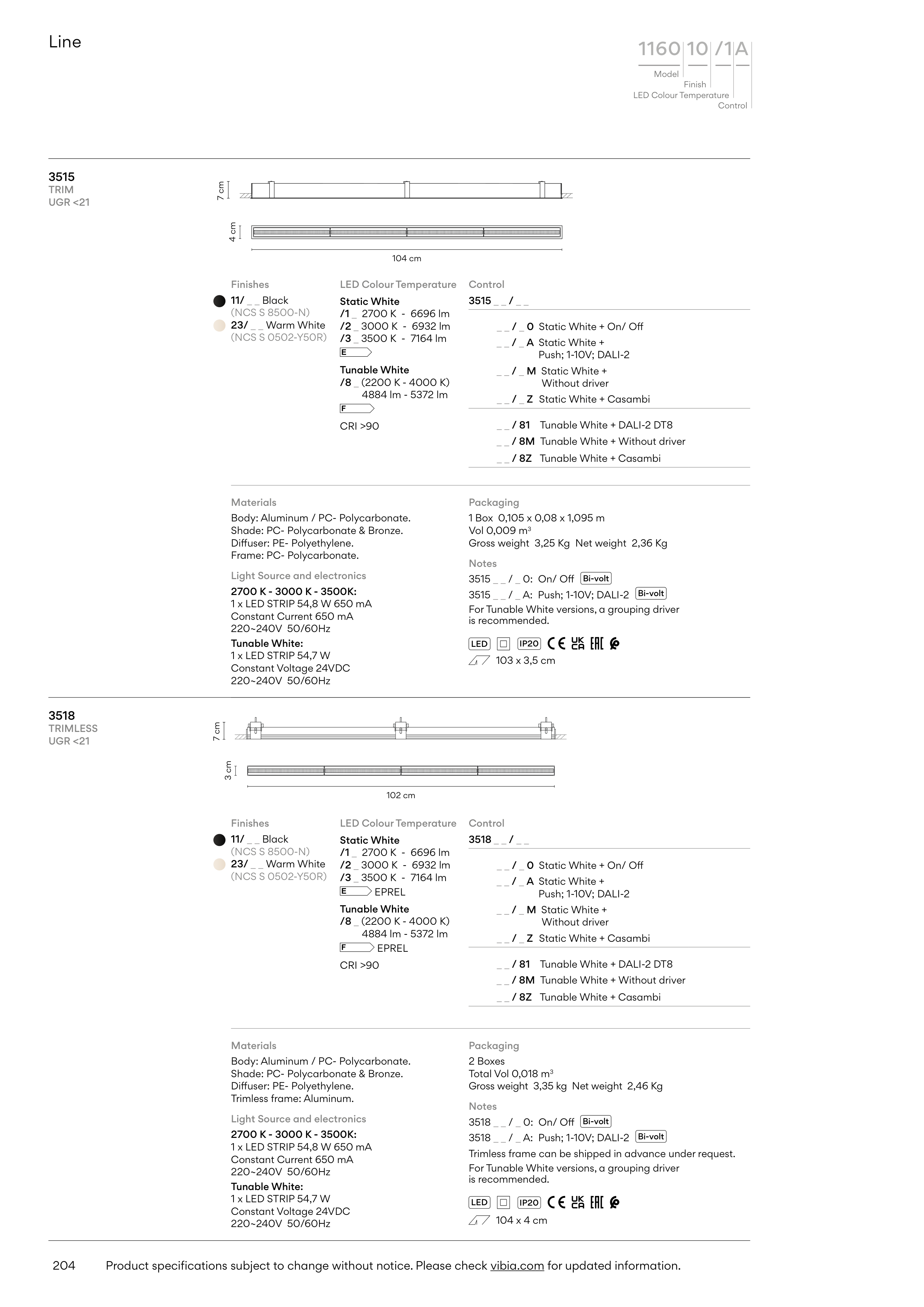

Line
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
Control
Control
Materials
Body: Aluminum / PC- Polycarbonate.
Shade: PC- Polycarbonate & Bronze.
Diffuser: PE- Polyethylene.
Frame: PC- Polycarbonate.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED STRIP 54,8 W 650 mA
Constant Current 650 mA
220~240V 50/60Hz
Tunable White:
1 x LED STRIP 54,7 W
Constant Voltage 24VDC
220~240V 50/60Hz
4 cm
104 cm
7 cm
LED Colour Temperature
Static White
/1 _ 2700 K - 6696 lm
/2 _ 3000 K - 6932 lm
/3 _ 3500 K - 7164 lm
E
Tunable White
/8 _ (2200 K - 4000 K)
4884 lm - 5372 lm
F
CRI >90
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
Packaging
2 Boxes
Total Vol 0,018 m3
Gross weight 3,35 kg Net weight 2,46 Kg
Materials
Body: Aluminum / PC- Polycarbonate.
Shade: PC- Polycarbonate & Bronze.
Diffuser: PE- Polyethylene.
Trimless frame: Aluminum.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED STRIP 54,8 W 650 mA
Constant Current 650 mA
220~240V 50/60Hz
Tunable White:
1 x LED STRIP 54,7 W
Constant Voltage 24VDC
220~240V 50/60Hz
3 cm
7 cm
102 cm
LED Colour Temperature
Static White
/1 _ 2700 K - 6696 lm
/2 _ 3000 K - 6932 lm
/3 _ 3500 K - 7164 lm
E
EPREL
Tunable White
/8 _ (2200 K - 4000 K)
4884 lm - 5372 lm
F
EPREL
CRI >90
3515 _ _ / _ _
_ _ / _ 0 Static White + On/ Off
_ _ / _ A Static White +
Push; 1-10V; DALI-2
_ _ / _ M Static White +
Without driver
_ _ / _ Z Static White + Casambi
_ _ / 81
Tunable White + DALI-2 DT8
_ _ / 8M Tunable White + Without driver
_ _ / 8Z Tunable White + Casambi
3518 _ _ / _ _
_ _ / _ 0 Static White + On/ Off
_ _ / _ A Static White +
Push; 1-10V; DALI-2
_ _ / _ M Static White +
Without driver
_ _ / _ Z Static White + Casambi
_ _ / 81
Tunable White + DALI-2 DT8
_ _ / 8M Tunable White + Without driver
_ _ / 8Z Tunable White + Casambi
Notes
3518 _ _ / _ 0: On/ Off
3518 _ _ / _ A: Push; 1-10V; DALI-2
Trimless frame can be shipped in advance under request.
For Tunable White versions, a grouping driver
is recommended.
Bi-volt
Bi-volt
Packaging
1 Box 0,105 x 0,08 x 1,095 m
Vol 0,009 m3
Gross weight 3,25 Kg Net weight 2,36 Kg
Notes
3515 _ _ / _ 0: On/ Off
3515 _ _ / _ A: Push; 1-10V; DALI-2
For Tunable White versions, a grouping driver
is recommended.
Bi-volt
Bi-volt
LED
IP20
103 x 3,5 cm
LED
IP20
104 x 4 cm
3515
TRIM
UGR <21
3518
TRIMLESS
UGR <21
