198
Product specifications subject to change without notice. Please check vibia.com for updated information.

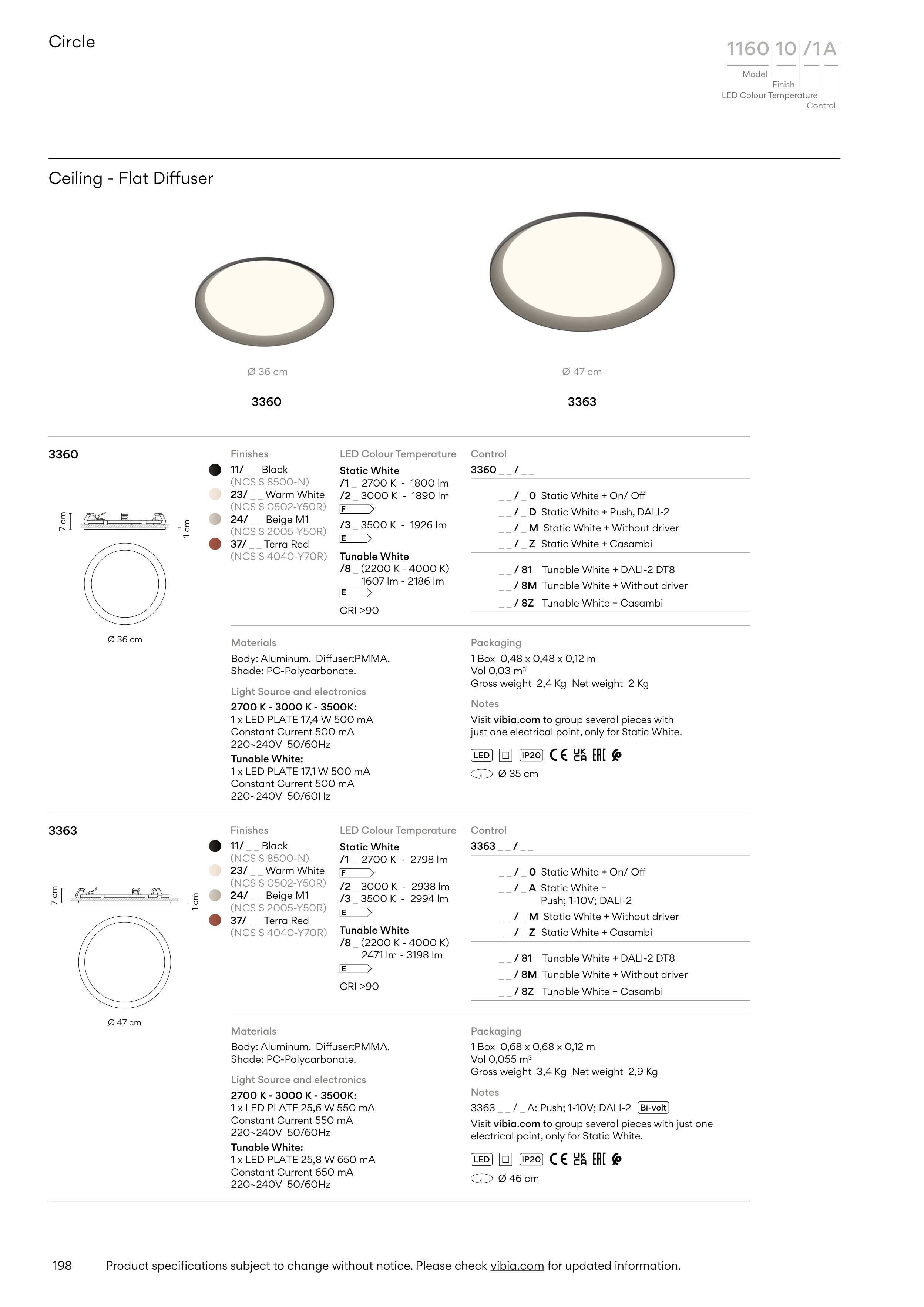

Circle
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control
Ceiling - Flat Diffuser
3360
3363
Ø 36 cm
Ø 47 cm
7 cm
Ø 36 cm
1 cm
Control
Packaging
1 Box 0,48 x 0,48 x 0,12 m
Vol 0,03 m3
Gross weight 2,4 Kg Net weight 2 Kg
Materials
Body: Aluminum. Diffuser:PMMA.
Shade: PC-Polycarbonate.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED PLATE 17,4 W 500 mA
Constant Current 500 mA
220~240V 50/60Hz
Tunable White:
1 x LED PLATE 17,1 W 500 mA
Constant Current 500 mA
220~240V 50/60Hz
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
3360
LED
IP20
LED Colour Temperature
Static White
/1 _ 2700 K - 1800 lm
/2 _ 3000 K - 1890 lm
F
/3 _ 3500 K - 1926 lm
E
Tunable White
/8 _ (2200 K - 4000 K)
1607 lm - 2186 lm
E
CRI >90
Ø 47 cm
7 cm
1 cm
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
Control
Packaging
1 Box 0,68 x 0,68 x 0,12 m
Vol 0,055 m3
Gross weight 3,4 Kg Net weight 2,9 Kg
Materials
Body: Aluminum. Diffuser:PMMA.
Shade: PC-Polycarbonate.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED PLATE 25,6 W 550 mA
Constant Current 550 mA
220~240V 50/60Hz
Tunable White:
1 x LED PLATE 25,8 W 650 mA
Constant Current 650 mA
220~240V 50/60Hz
3363
LED
IP20
LED Colour Temperature
Static White
/1 _ 2700 K - 2798 lm
F
/2 _ 3000 K - 2938 lm
/3 _ 3500 K - 2994 lm
E
Tunable White
/8 _ (2200 K - 4000 K)
2471 lm - 3198 lm
E
CRI >90
Ø 35 cm
Ø 46 cm
Notes
3363 _ _ / _ A: Push; 1-10V; DALI-2
Visit vibia.com to group several pieces with just one
electrical point, only for Static White.
Bi-volt
3360 _ _ / _ _
_ _ / _ 0 Static White + On/ Off
_ _ / _ D Static White + Push, DALI-2
_ _ / _ M Static White + Without driver
_ _ / _ Z Static White + Casambi
_ _ / 81
Tunable White + DALI-2 DT8
_ _ / 8M Tunable White + Without driver
_ _ / 8Z Tunable White + Casambi
3363 _ _ / _ _
_ _ / _ 0 Static White + On/ Off
_ _ / _ A Static White +
Push; 1-10V; DALI-2
_ _ / _ M Static White + Without driver
_ _ / _ Z Static White + Casambi
_ _ / 81
Tunable White + DALI-2 DT8
_ _ / 8M Tunable White + Without driver
_ _ / 8Z Tunable White + Casambi
Notes
Visit vibia.com to group several pieces with
just one electrical point, only for Static White.
