194
Product specifications subject to change without notice. Please check vibia.com for updated information.

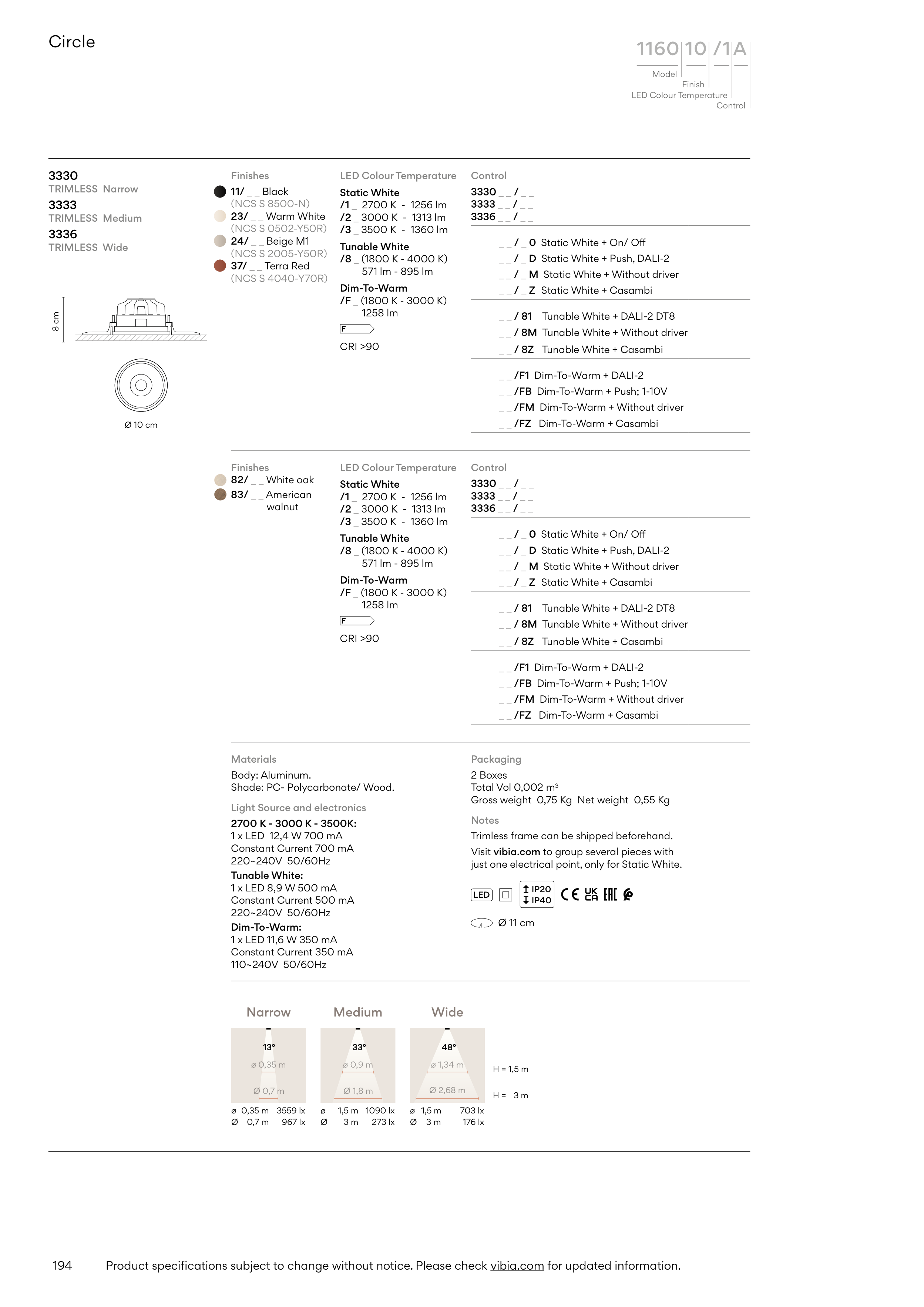

Circle
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control
8 cm
Ø 10 cm
3330
TRIMLESS Narrow
3333
TRIMLESS Medium
3336
TRIMLESS Wide
Control
Control
Materials
Body: Aluminum.
Shade: PC- Polycarbonate/ Wood.
Finishes
82/ _ _ White oak
83/ _ _ American
walnut
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
13°
ø 0,35 m
Ø 0,7 m
ø 0,35 m 3559 lx
Ø
0,7 m
967 lx
33°
ø 0,9 m
Ø 1,8 m
ø
1,5 m 1090 lx
Ø
3 m
273 lx
48°
ø 1,34 m
Ø 2,68 m
ø 1,5 m
703 lx
Ø 3 m
176 lx
H = 1,5 m
H = 3 m
Medium
Narrow
Wide
LED Colour Temperature
Static White
/1 _ 2700 K - 1256 lm
/2 _ 3000 K - 1313 lm
/3 _ 3500 K - 1360 lm
Tunable White
/8 _ (1800 K - 4000 K)
571 lm - 895 lm
Dim-To-Warm
/F _ (1800 K - 3000 K)
1258 lm
F
CRI >90
LED Colour Temperature
Static White
/1 _ 2700 K - 1256 lm
/2 _ 3000 K - 1313 lm
/3 _ 3500 K - 1360 lm
Tunable White
/8 _ (1800 K - 4000 K)
571 lm - 895 lm
Dim-To-Warm
/F _ (1800 K - 3000 K)
1258 lm
F
CRI >90
Packaging
2 Boxes
Total Vol 0,002 m3
Gross weight 0,75 Kg Net weight 0,55 Kg
IP40
IP20
LED
Ø 11 cm
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED 12,4 W 700 mA
Constant Current 700 mA
220~240V 50/60Hz
Tunable White:
1 x LED 8,9 W 500 mA
Constant Current 500 mA
220~240V 50/60Hz
Dim-To-Warm:
1 x LED 11,6 W 350 mA
Constant Current 350 mA
110~240V 50/60Hz
3330 _ _ / _ _
3333 _ _ / _ _
3336 _ _ / _ _
_ _ / _ 0 Static White + On/ Off
_ _ / _ D Static White + Push, DALI-2
_ _ / _ M Static White + Without driver
_ _ / _ Z Static White + Casambi
_ _ / 81
Tunable White + DALI-2 DT8
_ _ / 8M Tunable White + Without driver
_ _ / 8Z Tunable White + Casambi
_ _ /F1 Dim-To-Warm + DALI-2
_ _ /FB Dim-To-Warm + Push; 1-10V
_ _ /FM Dim-To-Warm + Without driver
_ _ /FZ Dim-To-Warm + Casambi
3330 _ _ / _ _
3333 _ _ / _ _
3336 _ _ / _ _
_ _ / _ 0 Static White + On/ Off
_ _ / _ D Static White + Push, DALI-2
_ _ / _ M Static White + Without driver
_ _ / _ Z Static White + Casambi
_ _ / 81
Tunable White + DALI-2 DT8
_ _ / 8M Tunable White + Without driver
_ _ / 8Z Tunable White + Casambi
_ _ /F1 Dim-To-Warm + DALI-2
_ _ /FB Dim-To-Warm + Push; 1-10V
_ _ /FM Dim-To-Warm + Without driver
_ _ /FZ Dim-To-Warm + Casambi
Notes
Trimless frame can be shipped beforehand.
Visit vibia.com to group several pieces with
just one electrical point, only for Static White.
