192
Product specifications subject to change without notice. Please check vibia.com for updated information.

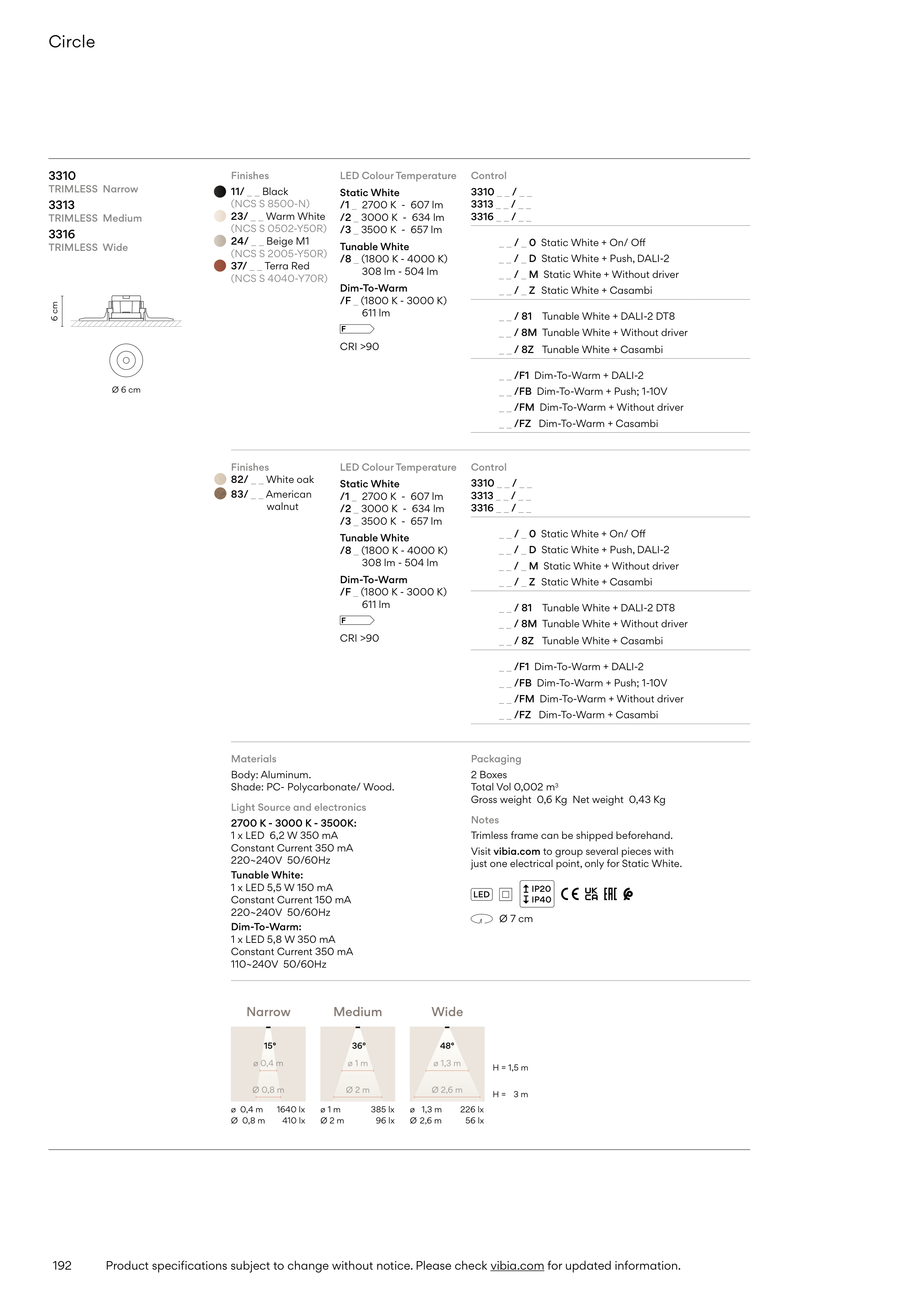

Circle
Ø 6 cm
6 cm
Control
Control
Materials
Body: Aluminum.
Shade: PC- Polycarbonate/ Wood.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED 6,2 W 350 mA
Constant Current 350 mA
220~240V 50/60Hz
Tunable White:
1 x LED 5,5 W 150 mA
Constant Current 150 mA
220~240V 50/60Hz
Dim-To-Warm:
1 x LED 5,8 W 350 mA
Constant Current 350 mA
110~240V 50/60Hz
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
37/ _ _ Terra Red
(NCS S 4040-Y70R)
3310
TRIMLESS Narrow
3313
TRIMLESS Medium
3316
TRIMLESS Wide
15°
ø 0,4 m
Ø 0,8 m
ø 0,4 m 1640 lx
Ø 0,8 m
410 lx
36°
ø 1 m
Ø 2 m
ø 1 m
385 lx
Ø 2 m
96 lx
48°
ø 1,3 m
Ø 2,6 m
ø 1,3 m
226 lx
Ø 2,6 m
56 lx
H = 1,5 m
H = 3 m
Medium
Narrow
Wide
LED Colour Temperature
Static White
/1 _ 2700 K - 607 lm
/2 _ 3000 K - 634 lm
/3 _ 3500 K - 657 lm
Tunable White
/8 _ (1800 K - 4000 K)
308 lm - 504 lm
Dim-To-Warm
/F _ (1800 K - 3000 K)
611 lm
F
CRI >90
LED Colour Temperature
Static White
/1 _ 2700 K - 607 lm
/2 _ 3000 K - 634 lm
/3 _ 3500 K - 657 lm
Tunable White
/8 _ (1800 K - 4000 K)
308 lm - 504 lm
Dim-To-Warm
/F _ (1800 K - 3000 K)
611 lm
F
CRI >90
Finishes
82/ _ _ White oak
83/ _ _ American
walnut
Packaging
2 Boxes
Total Vol 0,002 m3
Gross weight 0,6 Kg Net weight 0,43 Kg
IP40
IP20
LED
Ø 7 cm
3310 _ _ / _ _
3313 _ _ / _ _
3316 _ _ / _ _
_ _ / _ 0 Static White + On/ Off
_ _ / _ D Static White + Push, DALI-2
_ _ / _ M Static White + Without driver
_ _ / _ Z Static White + Casambi
_ _ / 81
Tunable White + DALI-2 DT8
_ _ / 8M Tunable White + Without driver
_ _ / 8Z Tunable White + Casambi
_ _ /F1 Dim-To-Warm + DALI-2
_ _ /FB Dim-To-Warm + Push; 1-10V
_ _ /FM Dim-To-Warm + Without driver
_ _ /FZ Dim-To-Warm + Casambi
3310 _ _ / _ _
3313 _ _ / _ _
3316 _ _ / _ _
_ _ / _ 0 Static White + On/ Off
_ _ / _ D Static White + Push, DALI-2
_ _ / _ M Static White + Without driver
_ _ / _ Z Static White + Casambi
_ _ / 81
Tunable White + DALI-2 DT8
_ _ / 8M Tunable White + Without driver
_ _ / 8Z Tunable White + Casambi
_ _ /F1 Dim-To-Warm + DALI-2
_ _ /FB Dim-To-Warm + Push; 1-10V
_ _ /FM Dim-To-Warm + Without driver
_ _ /FZ Dim-To-Warm + Casambi
Notes
Trimless frame can be shipped beforehand.
Visit vibia.com to group several pieces with
just one electrical point, only for Static White.
