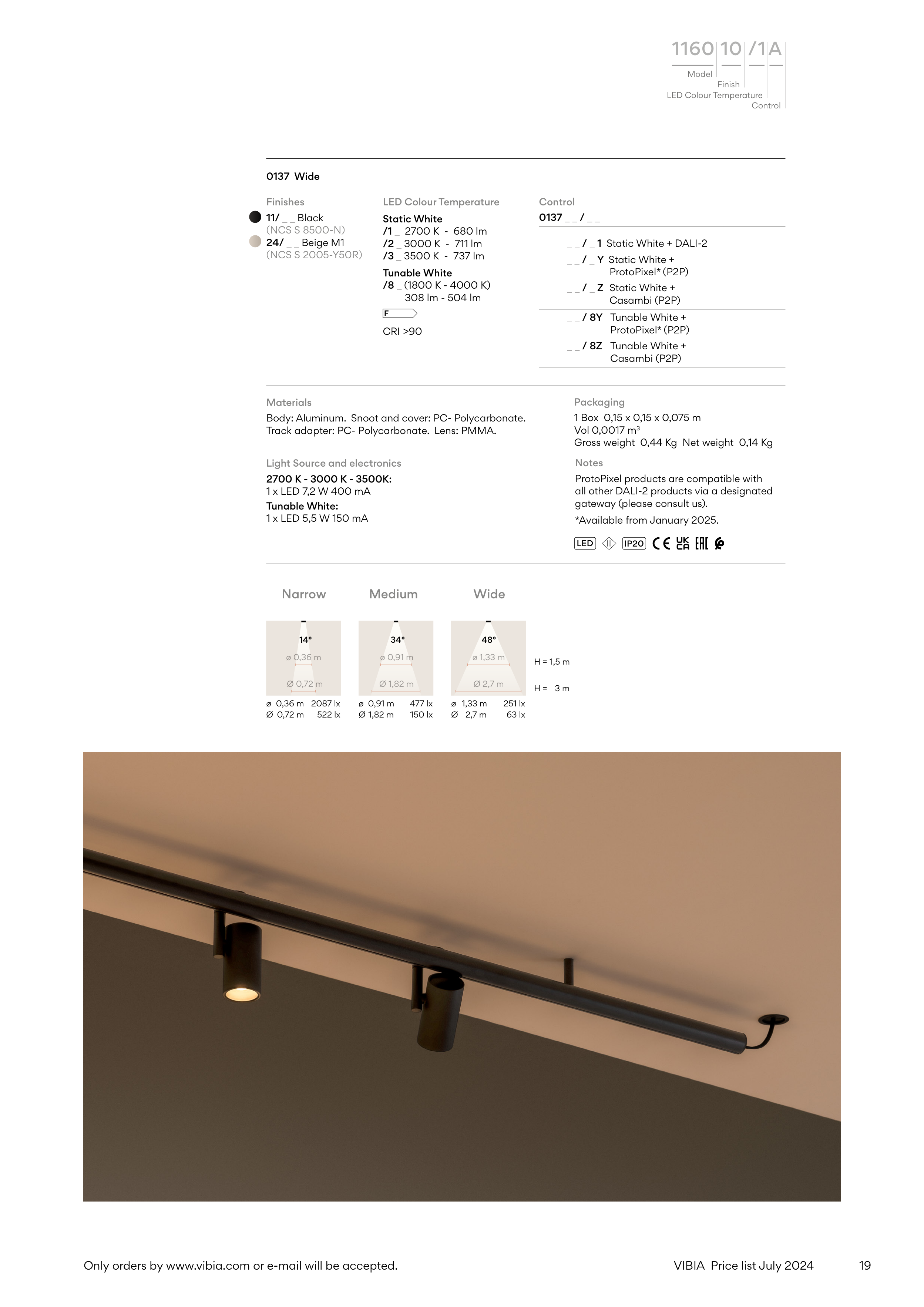

VIBIA Price list July 2024
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
Control
Materials
Body: Aluminum. Snoot and cover: PC- Polycarbonate.
Track adapter: PC- Polycarbonate. Lens: PMMA.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED 7,2 W 400 mA
Tunable White:
1 x LED 5,5 W 150 mA
0137 Wide
Packaging
1 Box 0,15 x 0,15 x 0,075 m
Vol 0,0017 m3
Gross weight 0,44 Kg Net weight 0,14 Kg
0137 _ _ / _ _
_ _ / _ 1 Static White + DALI-2
_ _ / _ Y Static White +
ProtoPixel* (P2P)
_ _ / _ Z Static White +
Casambi (P2P)
_ _ / 8Y Tunable White +
ProtoPixel* (P2P)
_ _ / 8Z Tunable White +
Casambi (P2P)
ø 0,36 m 2087 lx
Ø 0,72 m
522 lx
14°
ø 0,36 m
Ø 0,72 m
ø 0,91 m
477 lx
Ø 1,82 m
150 lx
34°
ø 0,91 m
Ø 1,82 m
ø 1,33 m
251 lx
Ø 2,7 m
63 lx
48°
ø 1,33 m
Ø 2,7 m
H = 1,5 m
H = 3 m
Narrow
Medium
Wide
LED Colour Temperature
Static White
/1 _ 2700 K - 680 lm
/2 _ 3000 K - 711 lm
/3 _ 3500 K - 737 lm
Tunable White
/8 _ (1800 K - 4000 K)
308 lm - 504 lm
F
CRI >90
IP20
LED
Notes
ProtoPixel products are compatible with
all other DALI-2 products via a designated
gateway (please consult us).
*Available from January 2025.
