184
Product specifications subject to change without notice. Please check vibia.com for updated information.
22 x 78,5 cm
22 x 78,5 cm
18 x 60 cm
18 x 96 cm
28 x 250 cm
28 x 250 cm
2810
2815
2800
2805
2820
2825

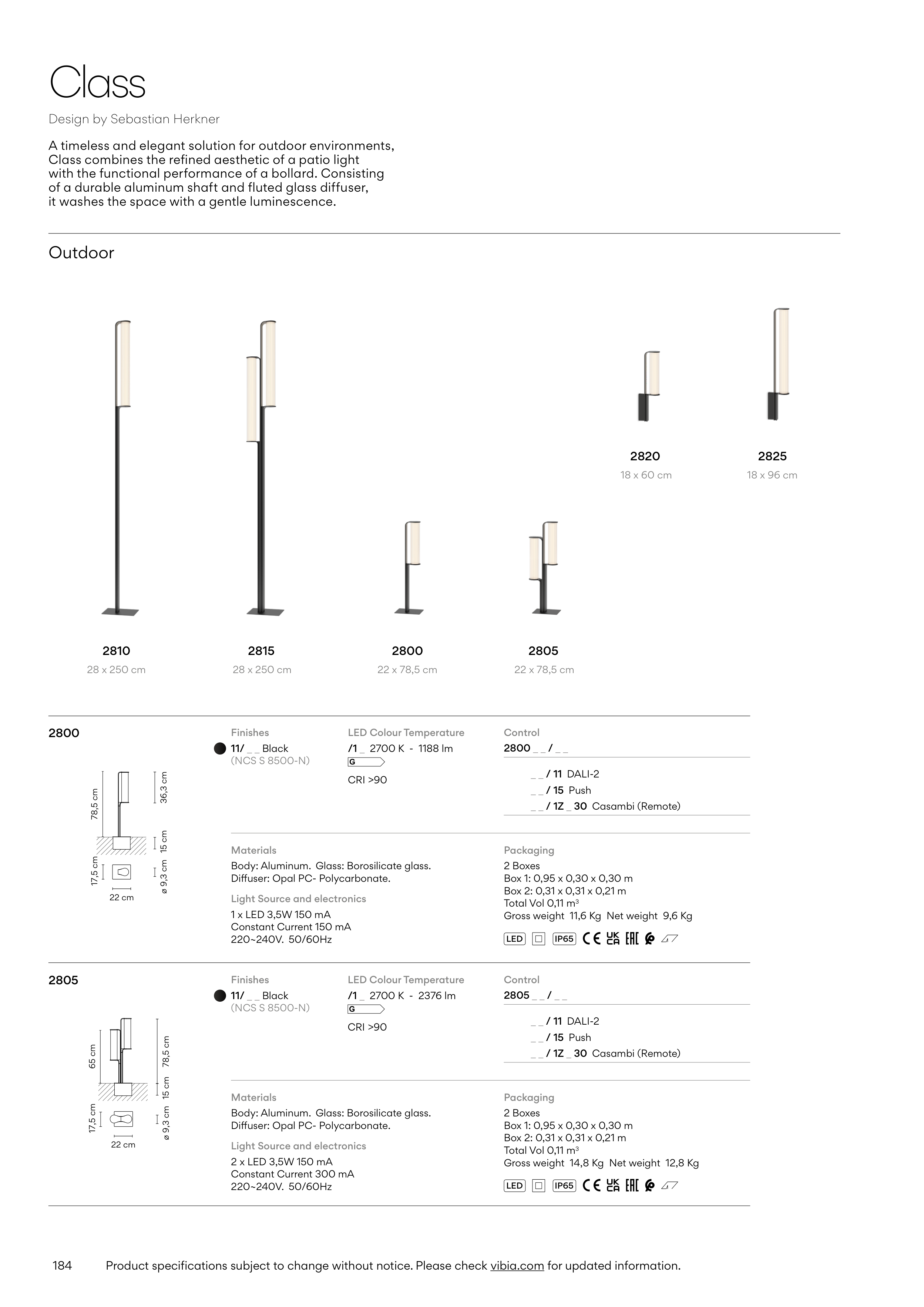

A timeless and elegant solution for outdoor environments,
Class combines the refined aesthetic of a patio light
with the functional performance of a bollard. Consisting
of a durable aluminum shaft and fluted glass diffuser,
it washes the space with a gentle luminescence.
Design by Sebastian Herkner
Class
Outdoor
2800
Finishes
11/ _ _ Black
(NCS S 8500-N)
Control
Packaging
2 Boxes
Box 1: 0,95 x 0,30 x 0,30 m
Box 2: 0,31 x 0,31 x 0,21 m
Total Vol 0,11 m3
Gross weight 11,6 Kg Net weight 9,6 Kg
Materials
Body: Aluminum. Glass: Borosilicate glass.
Diffuser: Opal PC- Polycarbonate.
Light Source and electronics
1 x LED 3,5W 150 mA
Constant Current 150 mA
220~240V. 50/60Hz
17,5 cm
22 cm
36,3 cm
ø 9,3 cm
78,5 cm
15 cm
2800 _ _ / _ _
_ _ / 11 DALI-2
_ _ / 15 Push
_ _ / 1Z _ 30 Casambi (Remote)
LED Colour Temperature
/1 _ 2700 K - 1188 lm
G
CRI >90
LED
IP65
2805
Finishes
11/ _ _ Black
(NCS S 8500-N)
Control
78,5 cm
17,5 cm
22 cm
ø 9,3 cm
65 cm
15 cm
Packaging
2 Boxes
Box 1: 0,95 x 0,30 x 0,30 m
Box 2: 0,31 x 0,31 x 0,21 m
Total Vol 0,11 m3
Gross weight 14,8 Kg Net weight 12,8 Kg
Materials
Body: Aluminum. Glass: Borosilicate glass.
Diffuser: Opal PC- Polycarbonate.
Light Source and electronics
2 x LED 3,5W 150 mA
Constant Current 300 mA
220~240V. 50/60Hz
LED Colour Temperature
/1 _ 2700 K - 2376 lm
G
CRI >90
2805 _ _ / _ _
_ _ / 11 DALI-2
_ _ / 15 Push
_ _ / 1Z _ 30 Casambi (Remote)
LED
IP65
