178
Product specifications subject to change without notice. Please check vibia.com for updated information.
Finishes
15/ _ _ Grey L2
(NCS S 2500-N)
21/ _ _ Black Grey
(NCS S 7000-N)
Finish customization
(Available options:
Vibia colour palette.
Minimum quantity
10 units. Price + 10%)
Packaging
1 Box 0,4 x 0,4 x 0,2 m
Vol 0,032 m3
Gross weight 1,35 Kg Net weight 0,9 Kg
Materials
Diffuser: PC- Polycarbonate.
Main body: Aluminum.
Structures: Aluminum.
Light Source and electronics
1 x LED PLATE 24V 6 W
Constant Voltage 24V
110~240V 50/60Hz
Bi-volt
IP20
LED
2600
2615
2617
2602
2610
2612
16 x 16 cm
26 x 22 cm
120 x 18 x 10 cm
180 x 120 x 10 cm
84 x 240 x 10 cm
240 x 30 x 10cm

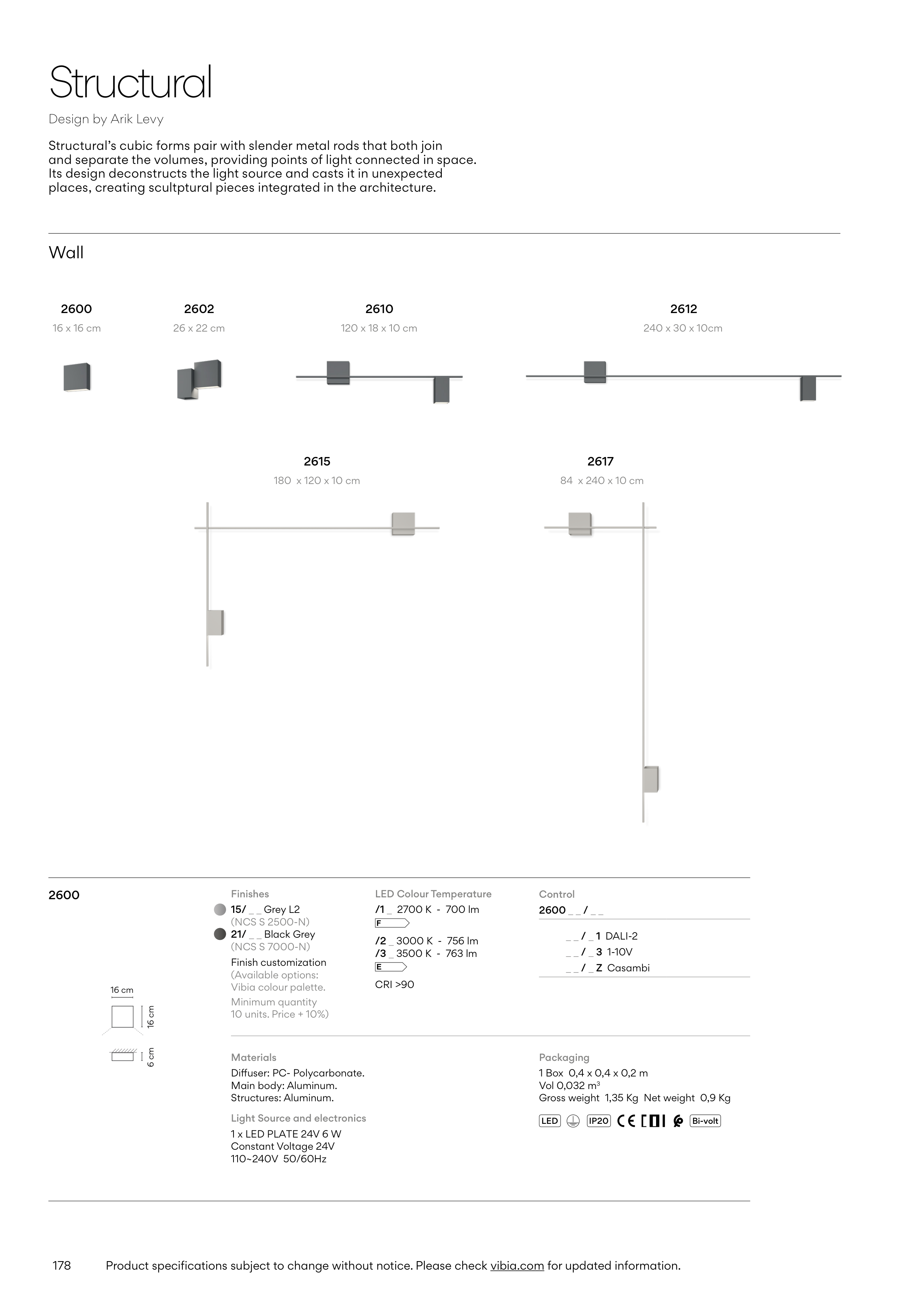

Structural’s cubic forms pair with slender metal rods that both join
and separate the volumes, providing points of light connected in space.
Its design deconstructs the light source and casts it in unexpected
places, creating scultptural pieces integrated in the architecture.
Design by Arik Levy
Structural
Wall
2600
Control
16 cm
16 cm
6 cm
2600 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ 3 1-10V
_ _ / _ Z Casambi
LED Colour Temperature
/1 _ 2700 K - 700 lm
F
/2 _ 3000 K - 756 lm
/3 _ 3500 K - 763 lm
E
CRI >90
