16
Product specifications subject to change without notice. Please check vibia.com for updated information.

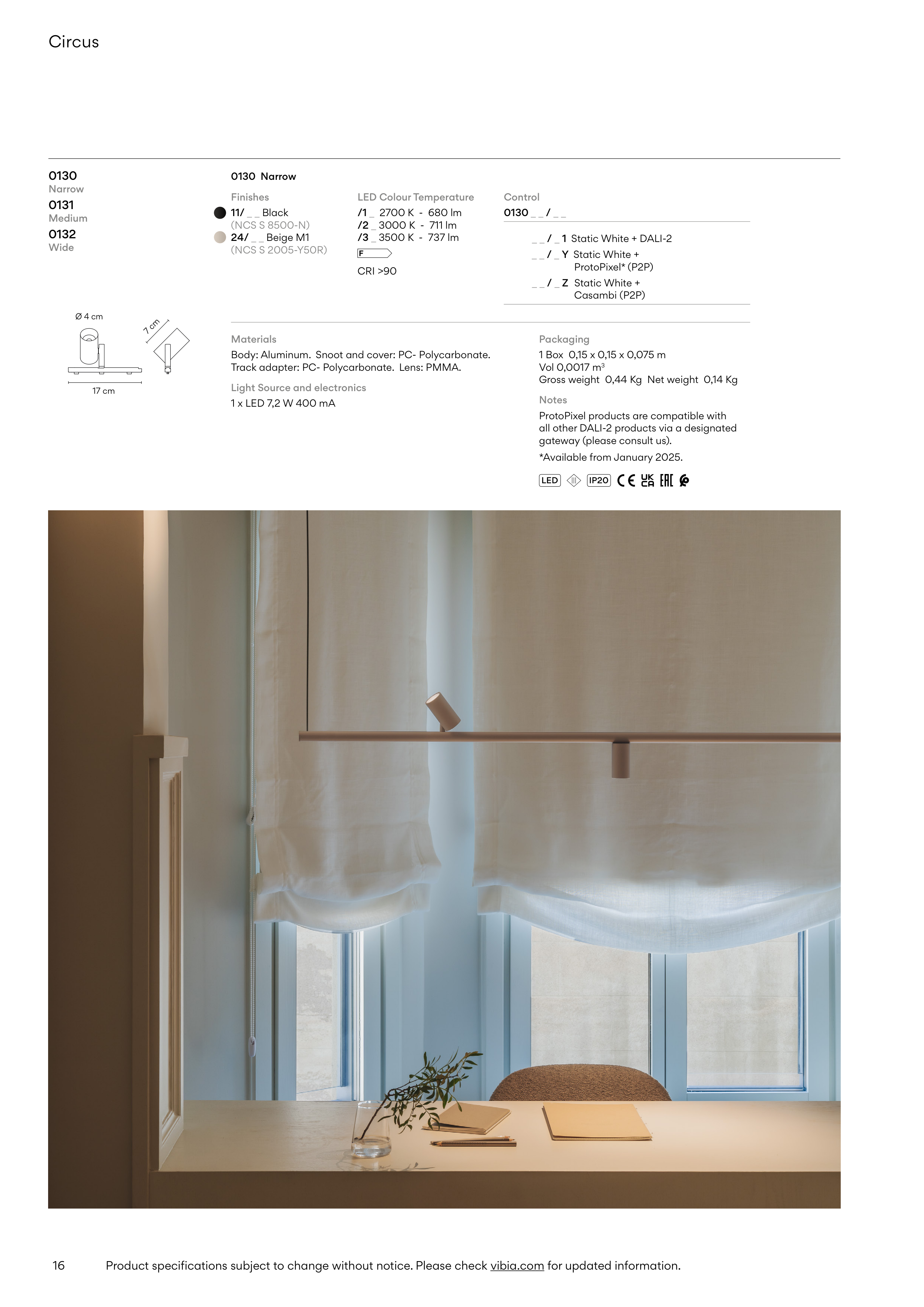

Circus
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
Control
Packaging
1 Box 0,15 x 0,15 x 0,075 m
Vol 0,0017 m3
Gross weight 0,44 Kg Net weight 0,14 Kg
Materials
Body: Aluminum. Snoot and cover: PC- Polycarbonate.
Track adapter: PC- Polycarbonate. Lens: PMMA.
Light Source and electronics
1 x LED 7,2 W 400 mA
7 cm
Ø 4 cm
17 cm
0130 Narrow
0130
Narrow
0131
Medium
0132
Wide
0130 _ _ / _ _
_ _ / _ 1 Static White + DALI-2
_ _ / _ Y Static White +
ProtoPixel* (P2P)
_ _ / _ Z Static White +
Casambi (P2P)
LED Colour Temperature
/1 _ 2700 K - 680 lm
/2 _ 3000 K - 711 lm
/3 _ 3500 K - 737 lm
F
CRI >90
IP20
LED
Notes
ProtoPixel products are compatible with
all other DALI-2 products via a designated
gateway (please consult us).
*Available from January 2025.
