146
Product specifications subject to change without notice. Please check vibia.com for updated information.

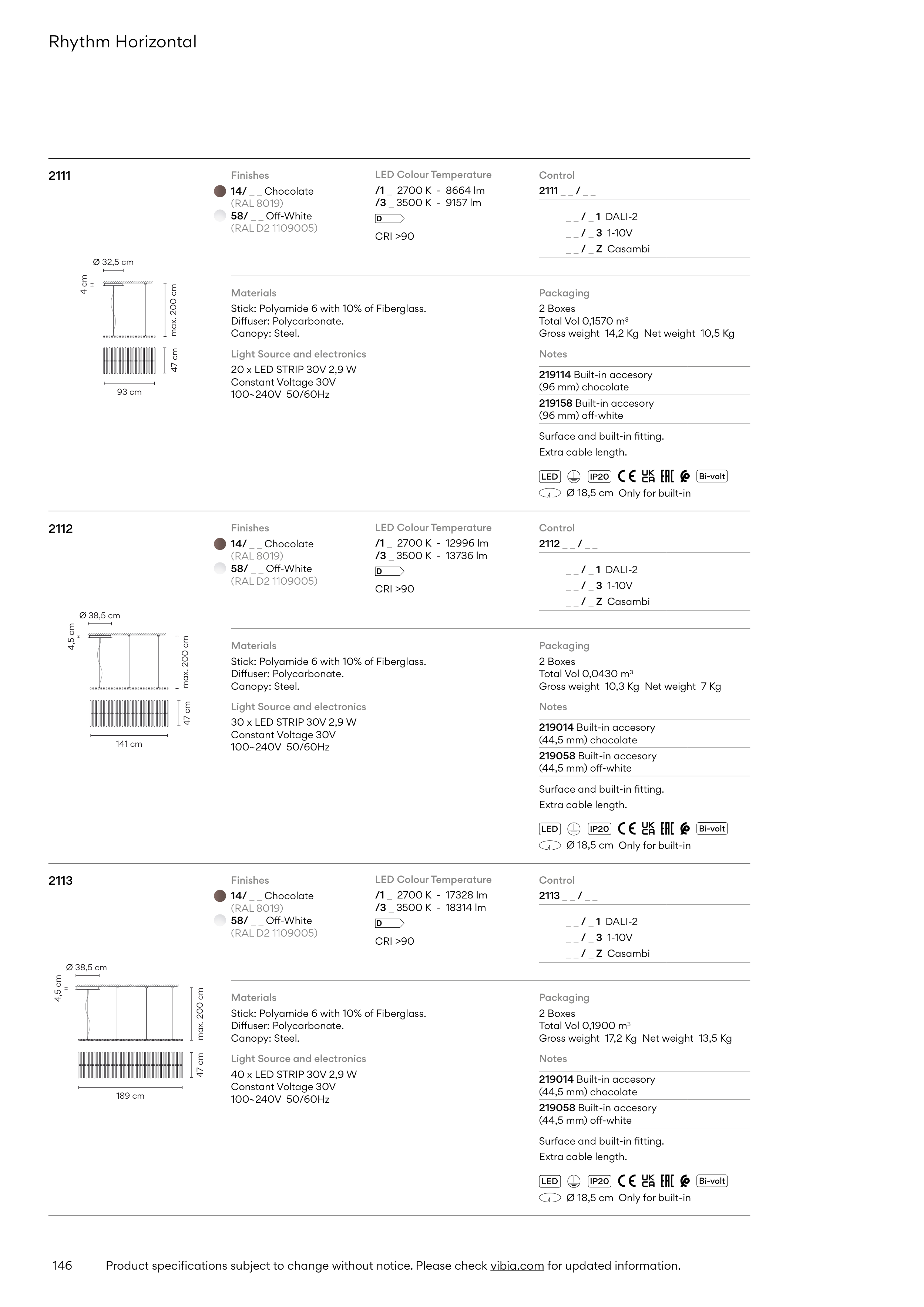

Rhythm Horizontal
Only for built-in
Ø 18,5 cm
Only for built-in
Ø 18,5 cm
Only for built-in
Ø 18,5 cm
2111
2112
2113
Finishes
14/ _ _ Chocolate
(RAL 8019)
58/ _ _ Off-White
(RAL D2 1109005)
Finishes
14/ _ _ Chocolate
(RAL 8019)
58/ _ _ Off-White
(RAL D2 1109005)
Finishes
14/ _ _ Chocolate
(RAL 8019)
58/ _ _ Off-White
(RAL D2 1109005)
Control
Control
Control
Packaging
2 Boxes
Total Vol 0,1570 m3
Gross weight 14,2 Kg Net weight 10,5 Kg
Packaging
2 Boxes
Total Vol 0,0430 m3
Gross weight 10,3 Kg Net weight 7 Kg
Packaging
2 Boxes
Total Vol 0,1900 m3
Gross weight 17,2 Kg Net weight 13,5 Kg
Materials
Stick: Polyamide 6 with 10% of Fiberglass.
Diffuser: Polycarbonate.
Canopy: Steel.
Materials
Stick: Polyamide 6 with 10% of Fiberglass.
Diffuser: Polycarbonate.
Canopy: Steel.
Materials
Stick: Polyamide 6 with 10% of Fiberglass.
Diffuser: Polycarbonate.
Canopy: Steel.
Light Source and electronics
20 x LED STRIP 30V 2,9 W
Constant Voltage 30V
100~240V 50/60Hz
Light Source and electronics
30 x LED STRIP 30V 2,9 W
Constant Voltage 30V
100~240V 50/60Hz
Light Source and electronics
40 x LED STRIP 30V 2,9 W
Constant Voltage 30V
100~240V 50/60Hz
93 cm
47 cm
max. 200 cm
4 cm
Ø 32,5 cm
141 cm
47 cm
max. 200 cm
Ø 38,5 cm
4,5 cm
189 cm
47 cm
max. 200 cm
Ø 38,5 cm
4,5 cm
Notes
219114 Built-in accesory
(96 mm) chocolate
219158 Built-in accesory
(96 mm) off-white
Surface and built-in fitting.
Extra cable length.
Notes
219014 Built-in accesory
(44,5 mm) chocolate
219058 Built-in accesory
(44,5 mm) off-white
Surface and built-in fitting.
Extra cable length.
Notes
219014 Built-in accesory
(44,5 mm) chocolate
219058 Built-in accesory
(44,5 mm) off-white
Surface and built-in fitting.
Extra cable length.
LED Colour Temperature
/1 _ 2700 K - 8664 lm
/3 _ 3500 K - 9157 lm
D
CRI >90
LED Colour Temperature
/1 _ 2700 K - 12996 lm
/3 _ 3500 K - 13736 lm
D
CRI >90
LED Colour Temperature
/1 _ 2700 K - 17328 lm
/3 _ 3500 K - 18314 lm
D
CRI >90
2111 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ 3 1-10V
_ _ / _ Z Casambi
2112 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ 3 1-10V
_ _ / _ Z Casambi
2113 _ _ / _ _
_ _ / _ 1 DALI-2
_ _ / _ 3 1-10V
_ _ / _ Z Casambi
Bi-volt
LED
IP20
Bi-volt
LED
IP20
Bi-volt
LED
IP20
