142
Product specifications subject to change without notice. Please check vibia.com for updated information.
A gentle presence with a distinctly
sculptural form, Funnel is a study in
materiality, light and space.

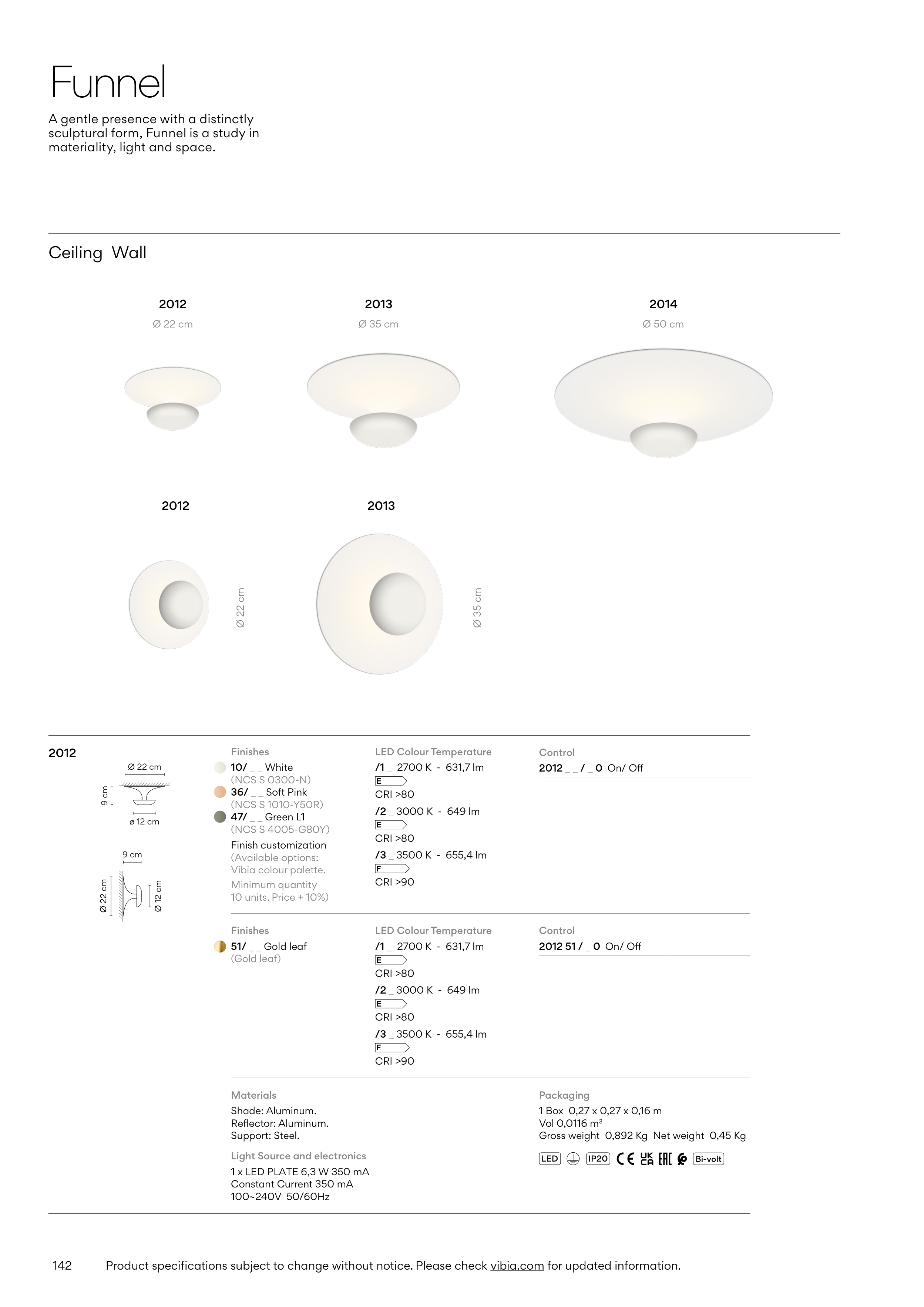

Funnel
Ceiling Wall
2012
2012
2013
2013
2014
Ø 22 cm
Ø 22 cm
Ø 35 cm
Ø 35 cm
Ø 50 cm
2012
Control
Control
Packaging
1 Box 0,27 x 0,27 x 0,16 m
Vol 0,0116 m3
Gross weight 0,892 Kg Net weight 0,45 Kg
Materials
Shade: Aluminum.
Reflector: Aluminum.
Support: Steel.
Light Source and electronics
1 x LED PLATE 6,3 W 350 mA
Constant Current 350 mA
100~240V 50/60Hz
2012 _ _ / _ 0 On/ Off
2012 51 / _ 0 On/ Off
ø 12 cm
9 cm
Ø 22 cm
Ø 12 cm
9 cm
Ø 22 cm
Finishes
10/ _ _ White
(NCS S 0300-N)
36/ _ _ Soft Pink
(NCS S 1010-Y50R)
47/ _ _ Green L1
(NCS S 4005-G80Y)
Finish customization
(Available options:
Vibia colour palette.
Minimum quantity
10 units. Price + 10%)
LED
Bi-volt
IP20
LED Colour Temperature
/1 _ 2700 K - 631,7 lm
E
CRI >80
/2 _ 3000 K - 649 lm
E
CRI >80
/3 _ 3500 K - 655,4 lm
F
CRI >90
LED Colour Temperature
/1 _ 2700 K - 631,7 lm
E
CRI >80
/2 _ 3000 K - 649 lm
E
CRI >80
/3 _ 3500 K - 655,4 lm
F
CRI >90
Finishes
51/ _ _ Gold leaf
(Gold leaf)
