132
Product specifications subject to change without notice. Please check vibia.com for updated information.

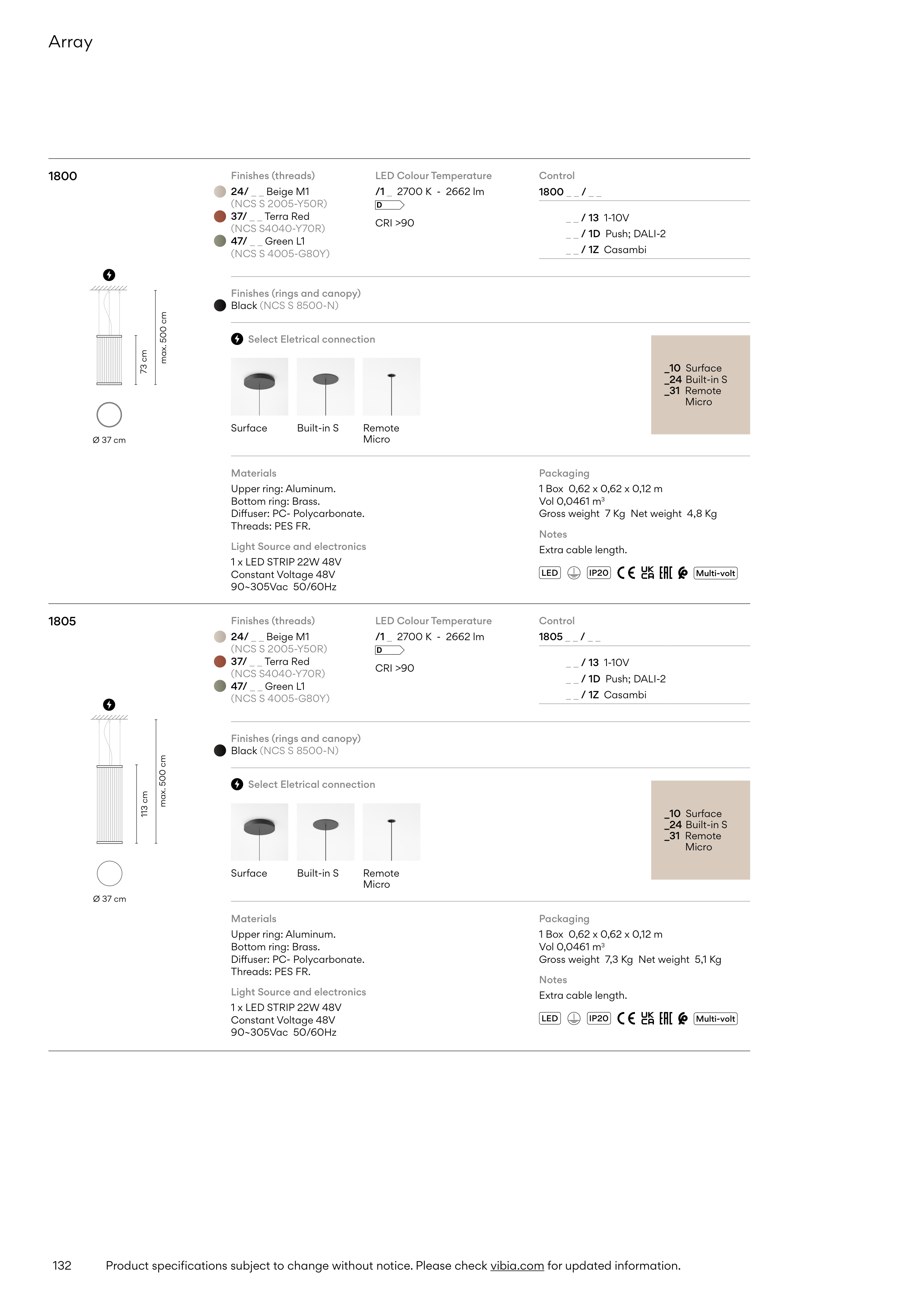

Array
max. 500 cm
73 cm
Ø 37 cm
Finishes (rings and canopy)
Black (NCS S 8500-N)
Finishes (threads)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
37/ _ _ Terra Red
(NCS S4040-Y70R)
47/ _ _ Green L1
(NCS S 4005-G80Y)
1800 _ _ / _ _
_ _ / 13 1-10V
_ _ / 1D Push; DALI-2
_ _ / 1Z Casambi
1800
LED Colour Temperature
/1 _ 2700 K - 2662 lm
D
CRI >90
Control
Packaging
1 Box 0,62 x 0,62 x 0,12 m
Vol 0,0461 m3
Gross weight 7 Kg Net weight 4,8 Kg
Materials
Upper ring: Aluminum.
Bottom ring: Brass.
Diffuser: PC- Polycarbonate.
Threads: PES FR.
Light Source and electronics
1 x LED STRIP 22W 48V
Constant Voltage 48V
90~305Vac 50/60Hz
Notes
Extra cable length.
Multi-volt
IP20
LED
_10 Surface
_24 Built-in S
_31 Remote
Micro
Select Eletrical connection
max. 500 cm
113 cm
Ø 37 cm
Finishes (rings and canopy)
Black (NCS S 8500-N)
Finishes (threads)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
37/ _ _ Terra Red
(NCS S4040-Y70R)
47/ _ _ Green L1
(NCS S 4005-G80Y)
1805 _ _ / _ _
_ _ / 13 1-10V
_ _ / 1D Push; DALI-2
_ _ / 1Z Casambi
1805
LED Colour Temperature
/1 _ 2700 K - 2662 lm
D
CRI >90
Control
Packaging
1 Box 0,62 x 0,62 x 0,12 m
Vol 0,0461 m3
Gross weight 7,3 Kg Net weight 5,1 Kg
Materials
Upper ring: Aluminum.
Bottom ring: Brass.
Diffuser: PC- Polycarbonate.
Threads: PES FR.
Light Source and electronics
1 x LED STRIP 22W 48V
Constant Voltage 48V
90~305Vac 50/60Hz
Notes
Extra cable length.
Multi-volt
IP20
LED
_10 Surface
_24 Built-in S
_31 Remote
Micro
Select Eletrical connection
Surface
Built-in S
Remote
Micro
Surface
Built-in S
Remote
Micro
