VIBIA Price list July 2024
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control

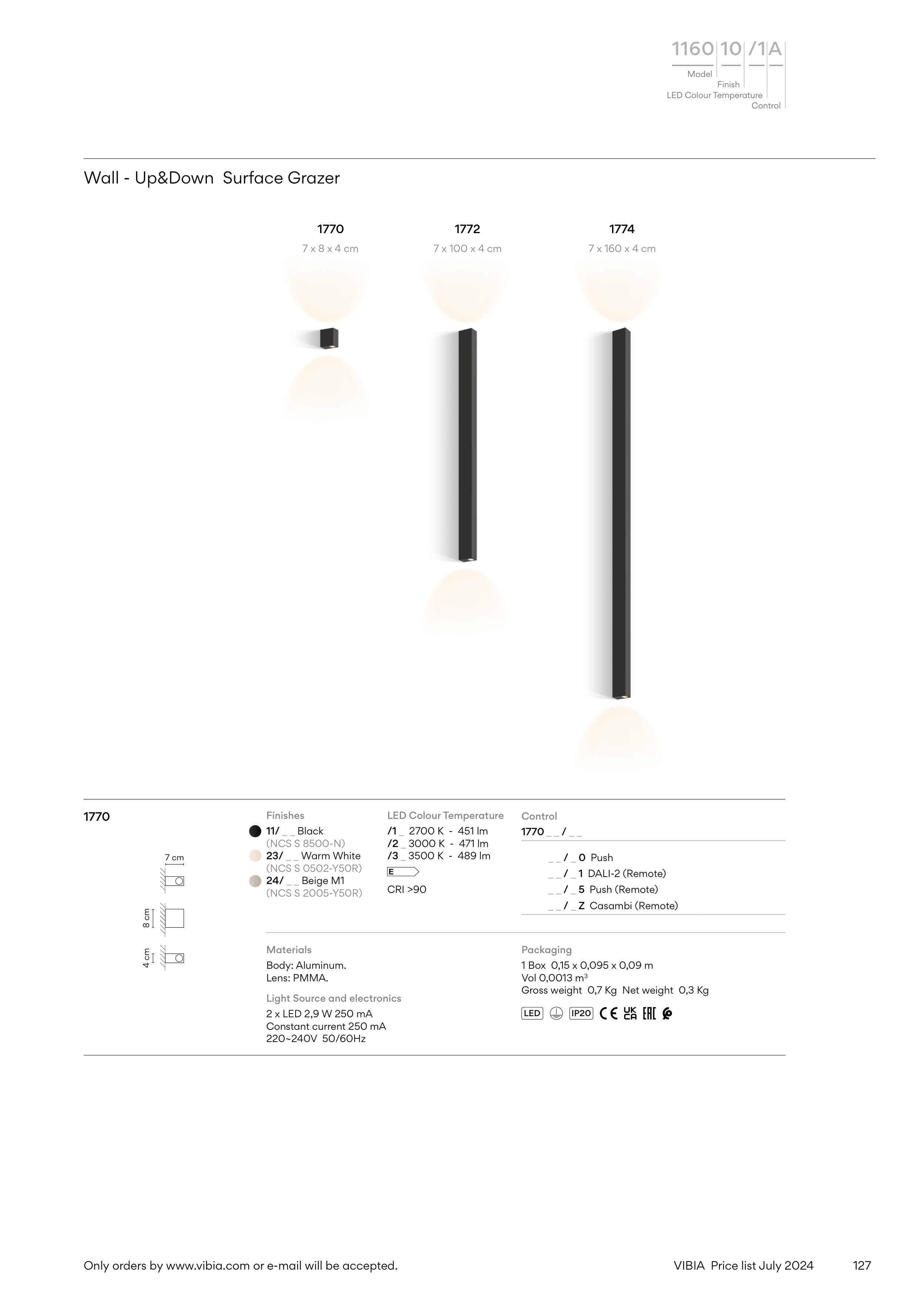

Wall - Up&Down Surface Grazer
7 cm
4 cm
8 cm
1770
Control
Packaging
1 Box 0,15 x 0,095 x 0,09 m
Vol 0,0013 m3
Gross weight 0,7 Kg Net weight 0,3 Kg
Materials
Body: Aluminum.
Lens: PMMA.
Light Source and electronics
2 x LED 2,9 W 250 mA
Constant current 250 mA
220~240V 50/60Hz
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
LED Colour Temperature
/1 _ 2700 K - 451 lm
/2 _ 3000 K - 471 lm
/3 _ 3500 K - 489 lm
E
CRI >90
1770 _ _ / _ _
_ _ / _ 0 Push
_ _ / _ 1 DALI-2 (Remote)
_ _ / _ 5 Push (Remote)
_ _ / _ Z Casambi (Remote)
1772
7 x 100 x 4 cm
1770
1774
7 x 8 x 4 cm
7 x 160 x 4 cm
IP20
LED
Only orders by www.vibia.com or e-mail will be accepted.
