125
VIBIA Price list July 2024
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control

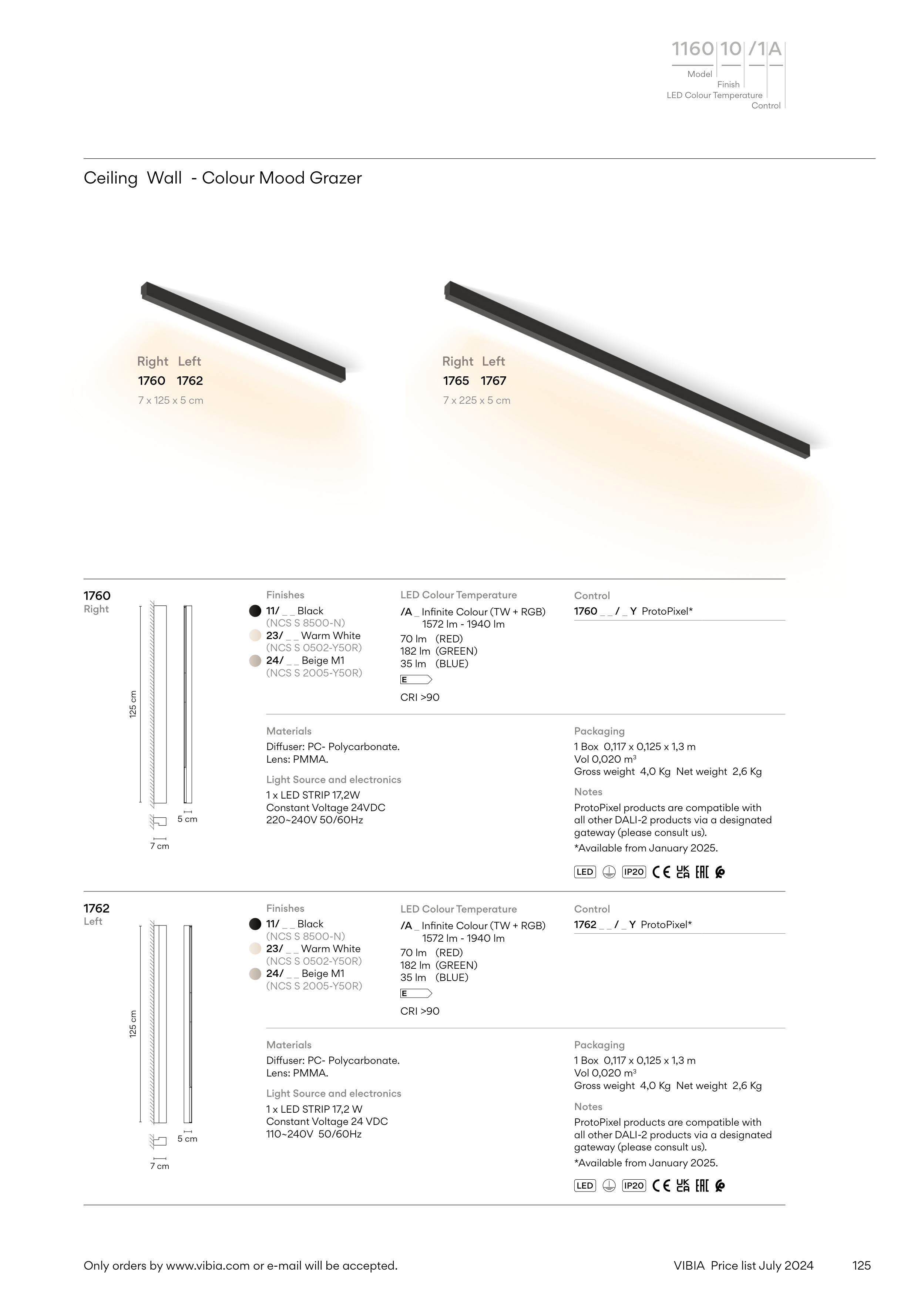

Ceiling Wall - Colour Mood Grazer
1765 1767
1760 1762
7 x 225 x 5 cm
7 x 125 x 5 cm
Right
Right
Left
Left
7 cm
5 cm
125 cm
1760
Right
Control
Packaging
1 Box 0,117 x 0,125 x 1,3 m
Vol 0,020 m3
Gross weight 4,0 Kg Net weight 2,6 Kg
Materials
Diffuser: PC- Polycarbonate.
Lens: PMMA.
Light Source and electronics
1 x LED STRIP 17,2W
Constant Voltage 24VDC
220~240V 50/60Hz
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
LED Colour Temperature
/A _ Infinite Colour (TW + RGB)
1572 lm - 1940 lm
70 lm (RED)
182 lm (GREEN)
35 lm (BLUE)
E
CRI >90
LED Colour Temperature
/A _ Infinite Colour (TW + RGB)
1572 lm - 1940 lm
70 lm (RED)
182 lm (GREEN)
35 lm (BLUE)
E
CRI >90
1760 _ _ / _ Y ProtoPixel*
IP20
LED
Notes
ProtoPixel products are compatible with
all other DALI-2 products via a designated
gateway (please consult us).
*Available from January 2025.
1762
Left
7 cm
5 cm
125 cm
Control
Packaging
1 Box 0,117 x 0,125 x 1,3 m
Vol 0,020 m3
Gross weight 4,0 Kg Net weight 2,6 Kg
Materials
Diffuser: PC- Polycarbonate.
Lens: PMMA.
Light Source and electronics
1 x LED STRIP 17,2 W
Constant Voltage 24 VDC
110~240V 50/60Hz
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
1762 _ _ / _ Y ProtoPixel*
IP20
LED
Notes
ProtoPixel products are compatible with
all other DALI-2 products via a designated
gateway (please consult us).
*Available from January 2025.
Only orders by www.vibia.com or e-mail will be accepted.
