124
Product specifications subject to change without notice. Please check vibia.com for updated information.

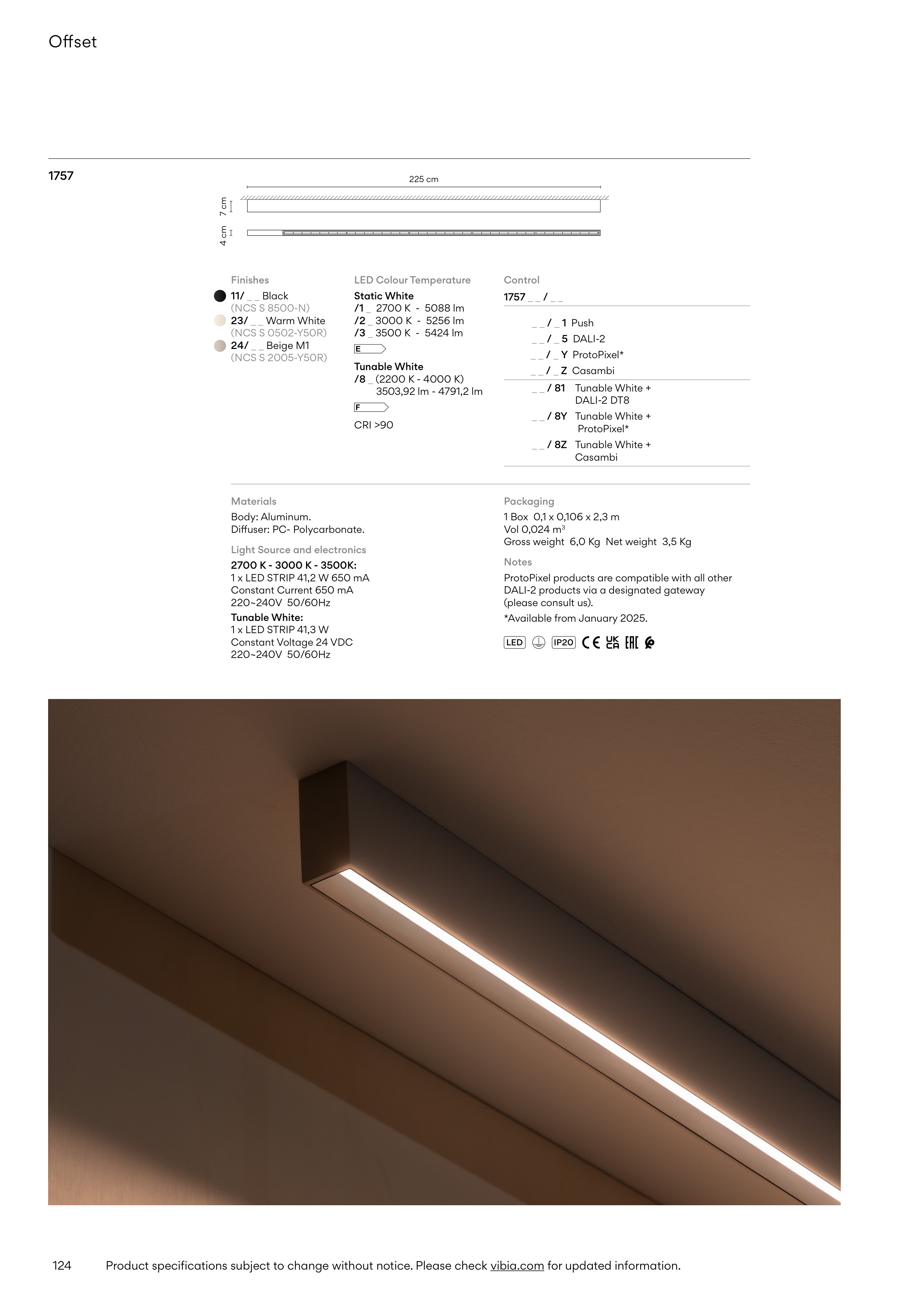

Offset
1757
7 cm
4 cm
225 cm
Control
Packaging
1 Box 0,1 x 0,106 x 2,3 m
Vol 0,024 m3
Gross weight 6,0 Kg Net weight 3,5 Kg
Materials
Body: Aluminum.
Diffuser: PC- Polycarbonate.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED STRIP 41,2 W 650 mA
Constant Current 650 mA
220~240V 50/60Hz
Tunable White:
1 x LED STRIP 41,3 W
Constant Voltage 24 VDC
220~240V 50/60Hz
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
LED Colour Temperature
Static White
/1 _ 2700 K - 5088 lm
/2 _ 3000 K - 5256 lm
/3 _ 3500 K - 5424 lm
E
Tunable White
/8 _ (2200 K - 4000 K)
3503,92 lm - 4791,2 lm
F
CRI >90
IP20
LED
Notes
ProtoPixel products are compatible with all other
DALI-2 products via a designated gateway
(please consult us).
*Available from January 2025.
1757 _ _ / _ _
_ _ / _ 1 Push
_ _ / _ 5 DALI-2
_ _ / _ Y ProtoPixel*
_ _ / _ Z Casambi
_ _ / 81
Tunable White +
DALI-2 DT8
_ _ / 8Y Tunable White +
ProtoPixel*
_ _ / 8Z Tunable White +
Casambi
