123
VIBIA Price list July 2024
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control

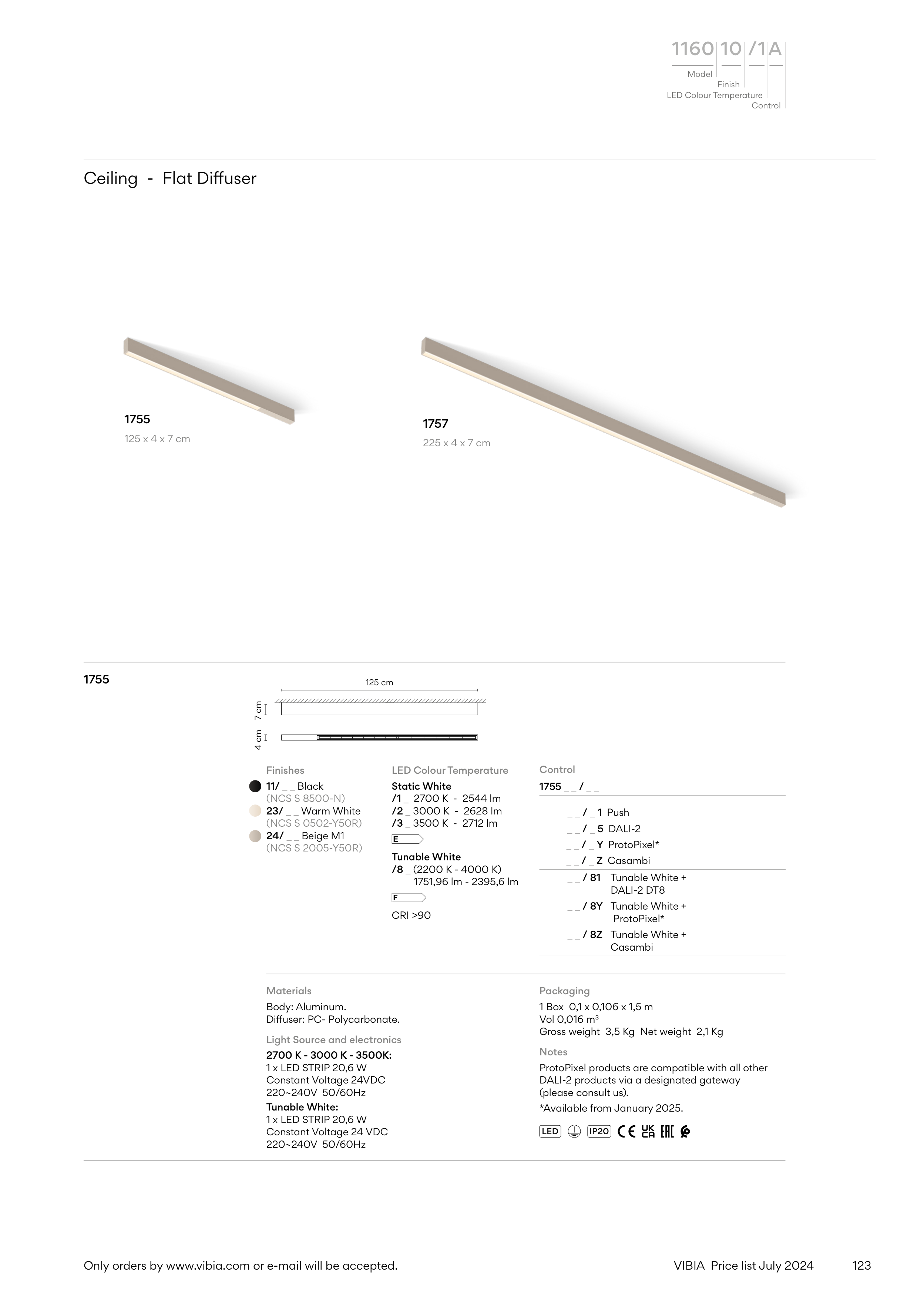

Ceiling - Flat Diffuser
1757
225 x 4 x 7 cm
1755
125 x 4 x 7 cm
Notes
ProtoPixel products are compatible with all other
DALI-2 products via a designated gateway
(please consult us).
*Available from January 2025.
1755
Control
Packaging
1 Box 0,1 x 0,106 x 1,5 m
Vol 0,016 m3
Gross weight 3,5 Kg Net weight 2,1 Kg
Materials
Body: Aluminum.
Diffuser: PC- Polycarbonate.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED STRIP 20,6 W
Constant Voltage 24VDC
220~240V 50/60Hz
Tunable White:
1 x LED STRIP 20,6 W
Constant Voltage 24 VDC
220~240V 50/60Hz
7 cm
4 cm
125 cm
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
LED Colour Temperature
Static White
/1 _ 2700 K - 2544 lm
/2 _ 3000 K - 2628 lm
/3 _ 3500 K - 2712 lm
E
Tunable White
/8 _ (2200 K - 4000 K)
1751,96 lm - 2395,6 lm
F
CRI >90
IP20
LED
1755 _ _ / _ _
_ _ / _ 1 Push
_ _ / _ 5 DALI-2
_ _ / _ Y ProtoPixel*
_ _ / _ Z Casambi
_ _ / 81
Tunable White +
DALI-2 DT8
_ _ / 8Y Tunable White +
ProtoPixel*
_ _ / 8Z Tunable White +
Casambi
Only orders by www.vibia.com or e-mail will be accepted.
