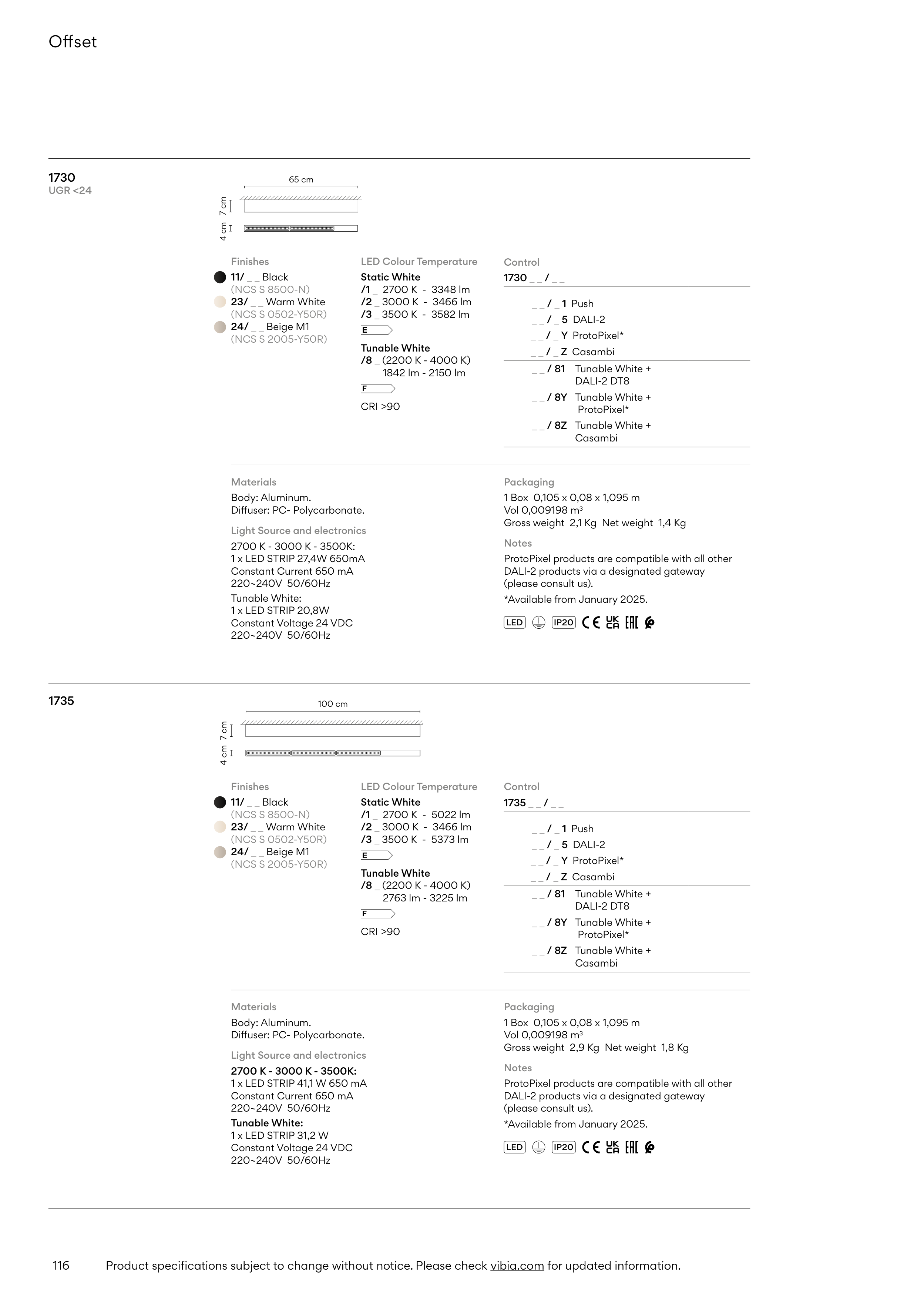

Offset
LED Colour Temperature
Static White
/1 _ 2700 K - 3348 lm
/2 _ 3000 K - 3466 lm
/3 _ 3500 K - 3582 lm
E
Tunable White
/8 _ (2200 K - 4000 K)
1842 lm - 2150 lm
F
CRI >90
Control
Packaging
1 Box 0,105 x 0,08 x 1,095 m
Vol 0,009198 m3
Gross weight 2,1 Kg Net weight 1,4 Kg
Materials
Body: Aluminum.
Diffuser: PC- Polycarbonate.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED STRIP 27,4W 650mA
Constant Current 650 mA
220~240V 50/60Hz
Tunable White:
1 x LED STRIP 20,8W
Constant Voltage 24 VDC
220~240V 50/60Hz
65 cm
7 cm
4 cm
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
IP20
LED
Notes
ProtoPixel products are compatible with all other
DALI-2 products via a designated gateway
(please consult us).
*Available from January 2025.
IP20
LED
Control
1735
Packaging
1 Box 0,105 x 0,08 x 1,095 m
Vol 0,009198 m3
Gross weight 2,9 Kg Net weight 1,8 Kg
Materials
Body: Aluminum.
Diffuser: PC- Polycarbonate.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED STRIP 41,1 W 650 mA
Constant Current 650 mA
220~240V 50/60Hz
Tunable White:
1 x LED STRIP 31,2 W
Constant Voltage 24 VDC
220~240V 50/60Hz
100 cm
7 cm
4 cm
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
LED Colour Temperature
Static White
/1 _ 2700 K - 5022 lm
/2 _ 3000 K - 3466 lm
/3 _ 3500 K - 5373 lm
E
Tunable White
/8 _ (2200 K - 4000 K)
2763 lm - 3225 lm
F
CRI >90
Notes
ProtoPixel products are compatible with all other
DALI-2 products via a designated gateway
(please consult us).
*Available from January 2025.
1730 _ _ / _ _
_ _ / _ 1 Push
_ _ / _ 5 DALI-2
_ _ / _ Y ProtoPixel*
_ _ / _ Z Casambi
_ _ / 81
Tunable White +
DALI-2 DT8
_ _ / 8Y Tunable White +
ProtoPixel*
_ _ / 8Z Tunable White +
Casambi
1735 _ _ / _ _
_ _ / _ 1 Push
_ _ / _ 5 DALI-2
_ _ / _ Y ProtoPixel*
_ _ / _ Z Casambi
_ _ / 81
Tunable White +
DALI-2 DT8
_ _ / 8Y Tunable White +
ProtoPixel*
_ _ / 8Z Tunable White +
Casambi
1730
UGR <24
