VIBIA Price list July 2024
Finish
LED Colour Temperature
Model
1160 10 /1 A
Control

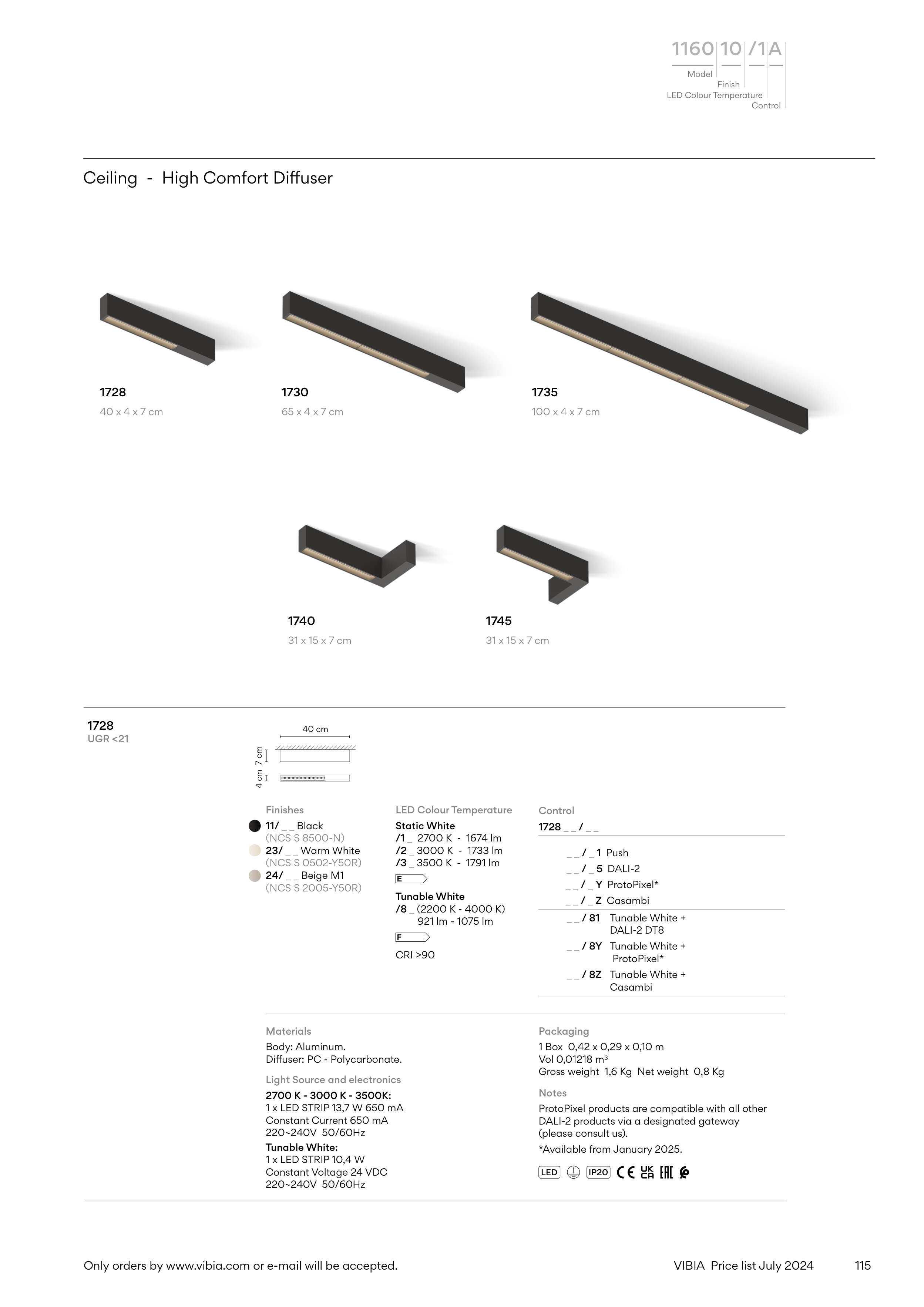

Ceiling - High Comfort Diffuser
1728
40 x 4 x 7 cm
1735
100 x 4 x 7 cm
1730
65 x 4 x 7 cm
1740
1745
31 x 15 x 7 cm
31 x 15 x 7 cm
Control
Packaging
1 Box 0,42 x 0,29 x 0,10 m
Vol 0,01218 m3
Gross weight 1,6 Kg Net weight 0,8 Kg
Materials
Body: Aluminum.
Diffuser: PC - Polycarbonate.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED STRIP 13,7 W 650 mA
Constant Current 650 mA
220~240V 50/60Hz
Tunable White:
1 x LED STRIP 10,4 W
Constant Voltage 24 VDC
220~240V 50/60Hz
40 cm
7 cm
4 cm
Finishes
11/ _ _ Black
(NCS S 8500-N)
23/ _ _ Warm White
(NCS S 0502-Y50R)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
LED Colour Temperature
Static White
/1 _ 2700 K - 1674 lm
/2 _ 3000 K - 1733 lm
/3 _ 3500 K - 1791 lm
E
Tunable White
/8 _ (2200 K - 4000 K)
921 lm - 1075 lm
F
CRI >90
IP20
LED
Notes
ProtoPixel products are compatible with all other
DALI-2 products via a designated gateway
(please consult us).
*Available from January 2025.
1728 _ _ / _ _
_ _ / _ 1 Push
_ _ / _ 5 DALI-2
_ _ / _ Y ProtoPixel*
_ _ / _ Z Casambi
_ _ / 81
Tunable White +
DALI-2 DT8
_ _ / 8Y Tunable White +
ProtoPixel*
_ _ / 8Z Tunable White +
Casambi
Only orders by www.vibia.com or e-mail will be accepted.
1728
UGR <21
